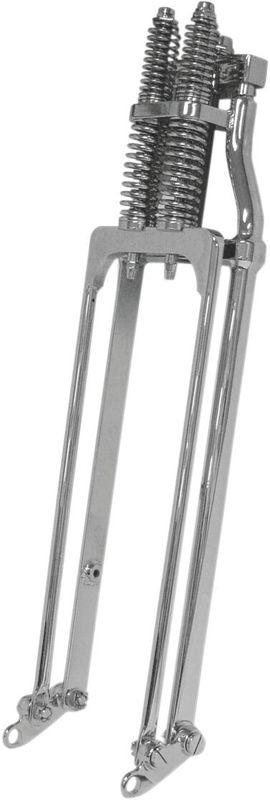

FORK SPRINGER -2 CHR

Beskrivning av FORK SPRINGER -2 CHR

Custom Springer Forks

Economical alternative to a shock dampened-type Springer

Fully assembled with an in-line top bracket without a built-in rake

The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end

1" O.D. steering stem designed for Timken® type bearings

Both rear legs are threaded for right or left brakes

The 3/4" O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)

Measures 9-1/4" between Rockers

Riser mounts are on 4-3/4" centers and threaded 1/2"-20

Requires wheel compatible with 3/4" O.D. axle

These Springers are measured from the bottom of the top tree to the center of the axle

Springers do not accept spotlight bars; no fender mounts.

These spring forks will not fit European models. The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end.
