TRIPLE TREE 39MM RAW ALU

Beskrivning av TRIPLE TREE 39MM RAW ALU

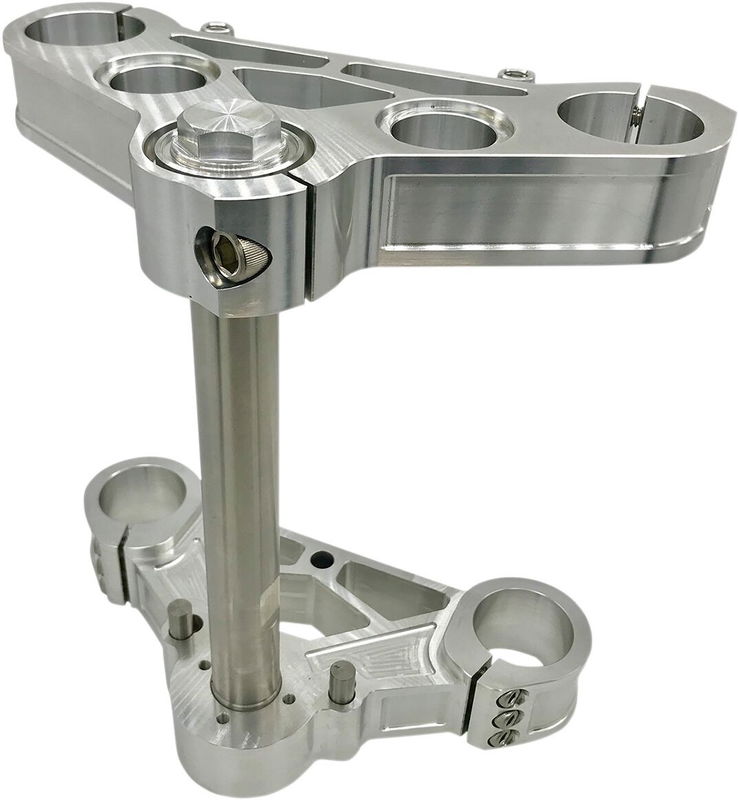

39 MM Triple Tree

CNC-machined out of solid 6061-T6 aluminum

Increased clamping area of 0.25” on the bottom tree reduces lateral and torsional fork flex, which increases the rigidity and stability of the front end

Machined cut-out in top tree for clean cable and wire routing

No fork lock capabilities

Will fit most 39 mm front ends with 7” O.C. forks

Designed to accept standard risers (3-1/2” O.C.)

Models with risers cast into the upper triple tree will require separate purchase of risers, bushings and mounting hardware.

Type	Standard
Brand	PRO-ONE PERF.MFG.
Material	Billet Aluminum
Rake degree	0°
Color/finish	Aluminum
Fork tube diameter	39,00 mm (1,54")
Vendor part number	106200
Fork tube diameter metric	39.00 mm
Fork tube diameter imperial	1.54"
