CARTRIDGE HARLEY-DAVIDSON CVO

Beskrivning av CARTRIDGE HARLEY-DAVIDSON CVO

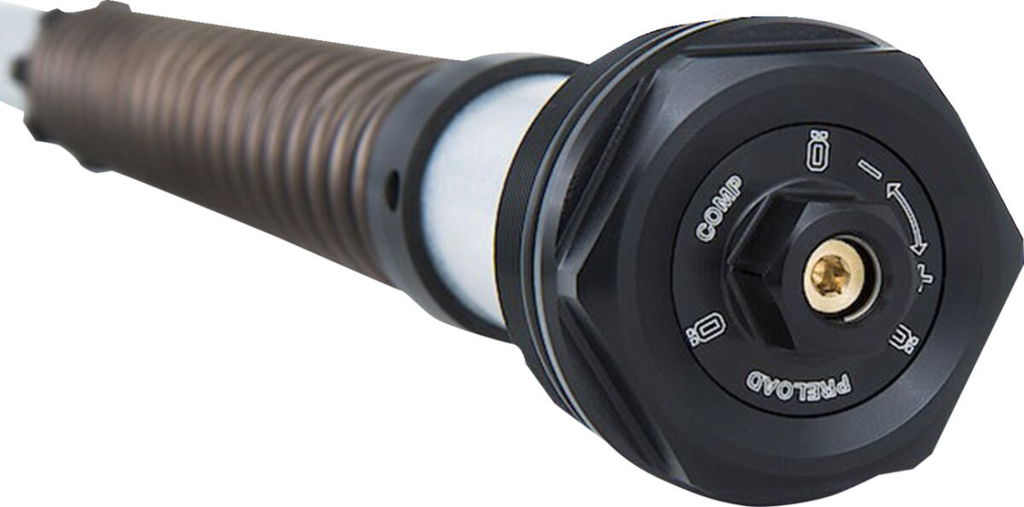

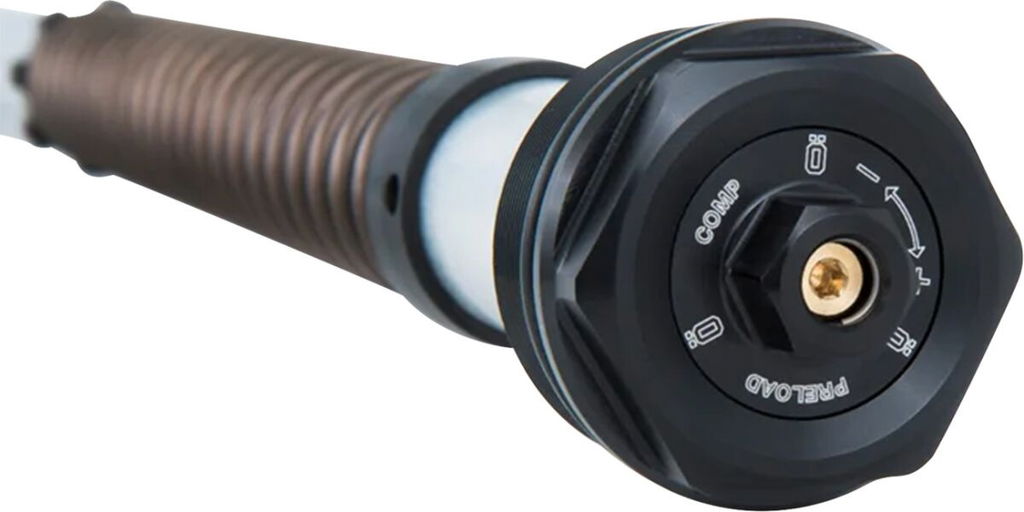

Fork Cartridge Kit

Öhlins NIX Technology

External Compression and rebound adjustment

External preload adjustment

1" lowering kit included

Pull up tool and Stopper Plate included

22 mm piston diameter

Öhlins setting bank

Spring rates included: 12 n/m and 13 n/m Stroke length: 3.583" Weight range (Based on rider only because it’s a front cartridge kit) – Min 150 lb – Max 350 lb

Type	Fork
Brand	OHLINS
Model	NIX 22
Units	Kit
Length	736,00 mm (29,00")
Color/finish	Black
Product name	Cartridge
Fork tube diameter	49,00 mm (1,93")
Vendor part number	FKS 233
