HANDLEBAR CLC BFLO CH TBW

Beskrivning av HANDLEBAR CLC BFLO CH TBW

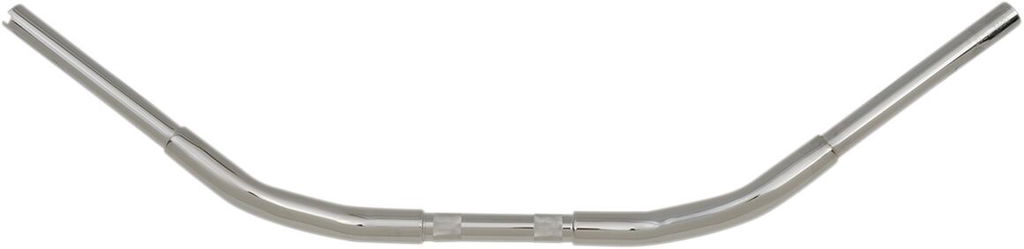

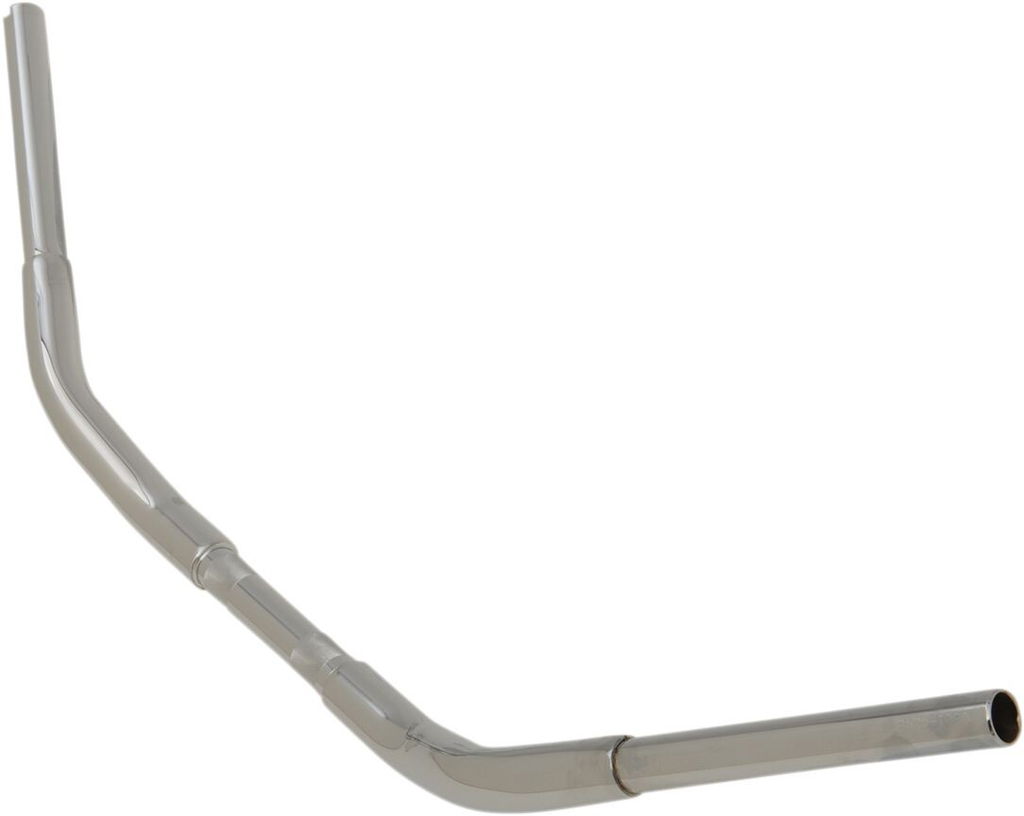

1-1/4" Buffalo Bar Handlebar

The ultimate 1-1/4" diameter handlebar, designed for maximum comfort

1" diameter in clamping area

Slotted and notched for Throttle-By-Wire options

Standard bars have 3-1/2" on-center knurling to prevent movement

Made in the U.S.A.

Not for use with stock risers and handlebar clamp/gauge mount on 883C/1200C models.

Compatible with hydraulic clutch controls.

Rise	57 mm (2-1/4")
Brand	DRAG SPECIALTIES
Style	Standard
Units	Each
Width	89 cm (35")
Height	57,2 mm (2-1/4")
End rise	57,2 mm (2-1/4")
Features	Accepts Heated Grips| Knurled Center| Notched for Throttle-By-Wire| Pre-Drilled
Material	Steel
Type/bend	Buffalo| Classic
Base color	Silver
Base finish	Chrome
Rise metric	57 mm
Center width	24 cm (9-1/2")
Color/finish	Chrome
Product name	Handlebar
Riding style	Street
Width metric	89 cm
Height metric	57.2 mm
Rise imperial	2-1/4"
Clamping width	133 mm (5-1/4")
Pullback/sweep	23 cm (9")
Research value	Finalized
Width imperial	35"
End rise metric	57.2 mm
Height imperial	2-1/4"
Clamping diameter	25,4 mm (1")
Controls diameter	25,4 mm (1")
End rise imperial	2-1/4"
Handlebar diameter	32 mm (1-1/4")
Vendor part number	0601-4242
Center width metric	24 cm
Center width imperial	9-1/2"
Clamping width metric	133 mm
Pullback/sweep metric	23 cm
Clamping width imperial	5-1/4"
Pullback/sweep imperial	9"
Clamping diameter metric	25.4 mm
Controls diameter metric	25.4 mm
Handlebar diameter metric	32 mm
Clamping diameter imperial	1"
Controls diameter imperial	1"
Handlebar diameter imperial	1-1/4"
