HANDLEBAR 18BFAPE BK TBW

Beskrivning av HANDLEBAR 18BFAPE BK TBW

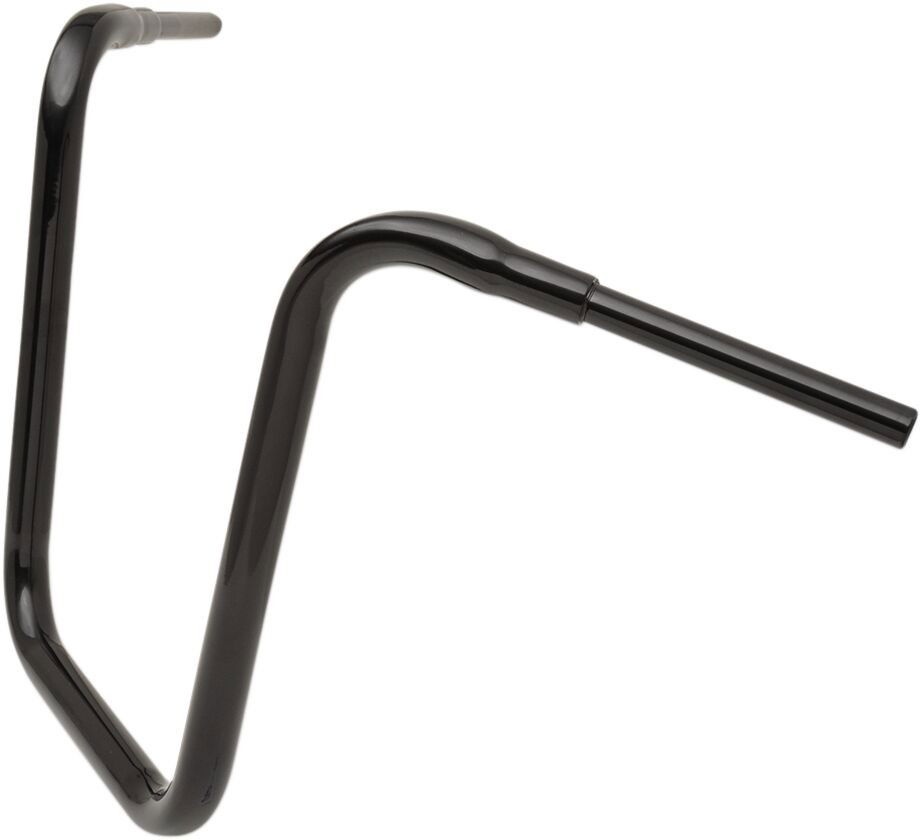

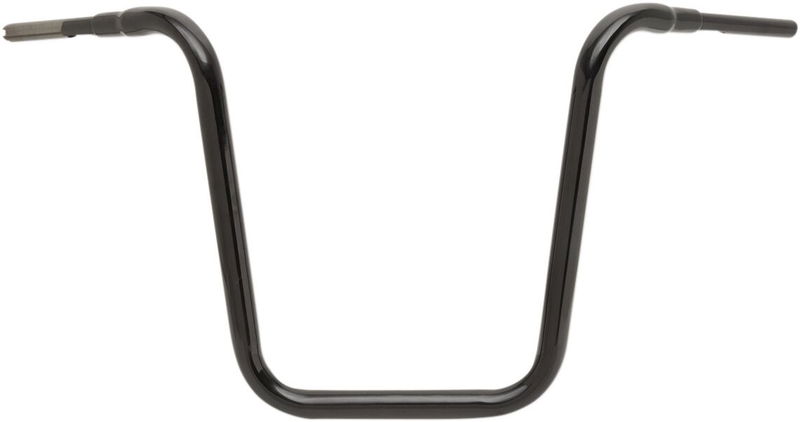

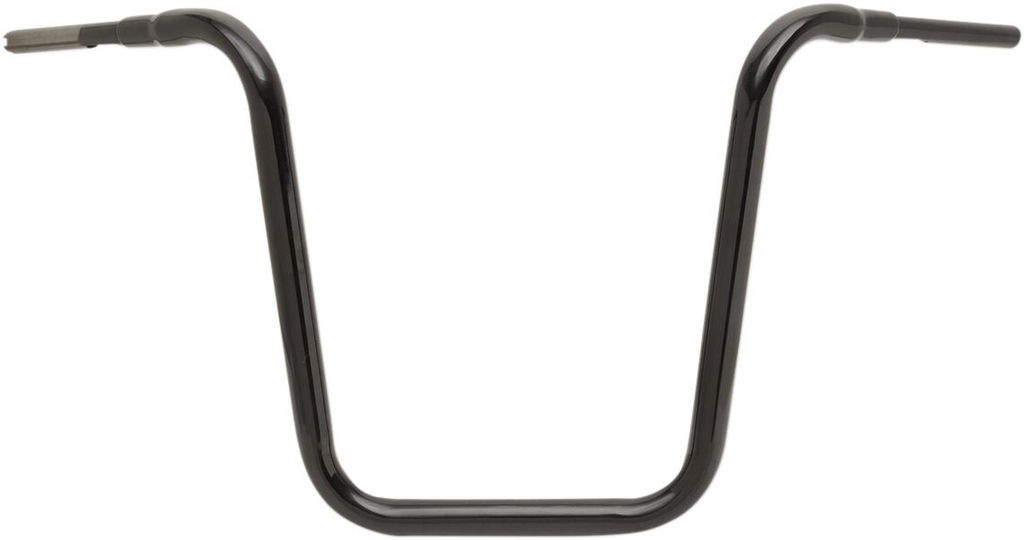

1-1/2" "Big" Buffalo Ape Hanger Bar

Handlebars for the "biggest fattest" look

Custom bends for the ultimate in comfort

Slotted and notched for Throttle-By-Wire applications

For use with most '99+ Harley-Davidson controls and master cylinders

Special risers required for all bars

Made in the USA

Rise	47 cm (18-1/2")
Brand	DRAG SPECIALTIES
Style	Dimpled
Units	Each
Width	103 cm (40-1/2")
Height	45,5 cm (18")
End rise	44,5 cm (17-1/2")
Features	Accepts Heated Grips| Notched for Throttle-By-Wire| Pre-Drilled
Material	Steel
Type/bend	Ape Hanger
Base color	Black
Base finish	Gloss
Rise metric	47 cm
Center width	25,5 cm (10")
Color/finish	Black| Gloss
Product name	Handlebar
Riding style	Street
Width metric	103 cm
Height metric	45.5 cm
Rise imperial	18-1/2"
Pullback/sweep	23 cm (9")
Research value	Finalized
Width imperial	40-1/2"
End rise metric	44.5 cm
Height imperial	18"
Clamping diameter	38 mm (1-1/2")
Controls diameter	25,4 mm (1")
End rise imperial	17-1/2"
Handlebar diameter	38 mm (1-1/2")
Vendor part number	0601-4304
Center width metric	25.5 cm
Center width imperial	10"
Pullback/sweep metric	23 cm
Pullback/sweep imperial	9"
Clamping diameter metric	38 mm
Controls diameter metric	25.4 mm
Handlebar diameter metric	38 mm
Clamping diameter imperial	1-1/2"
Controls diameter imperial	1"
Handlebar diameter imperial	1-1/2"
