HANDLEBAR 14 FLTR 05-13/FLHR 0

Beskrivning av HANDLEBAR 14 FLTR 05-13/FLHR 0

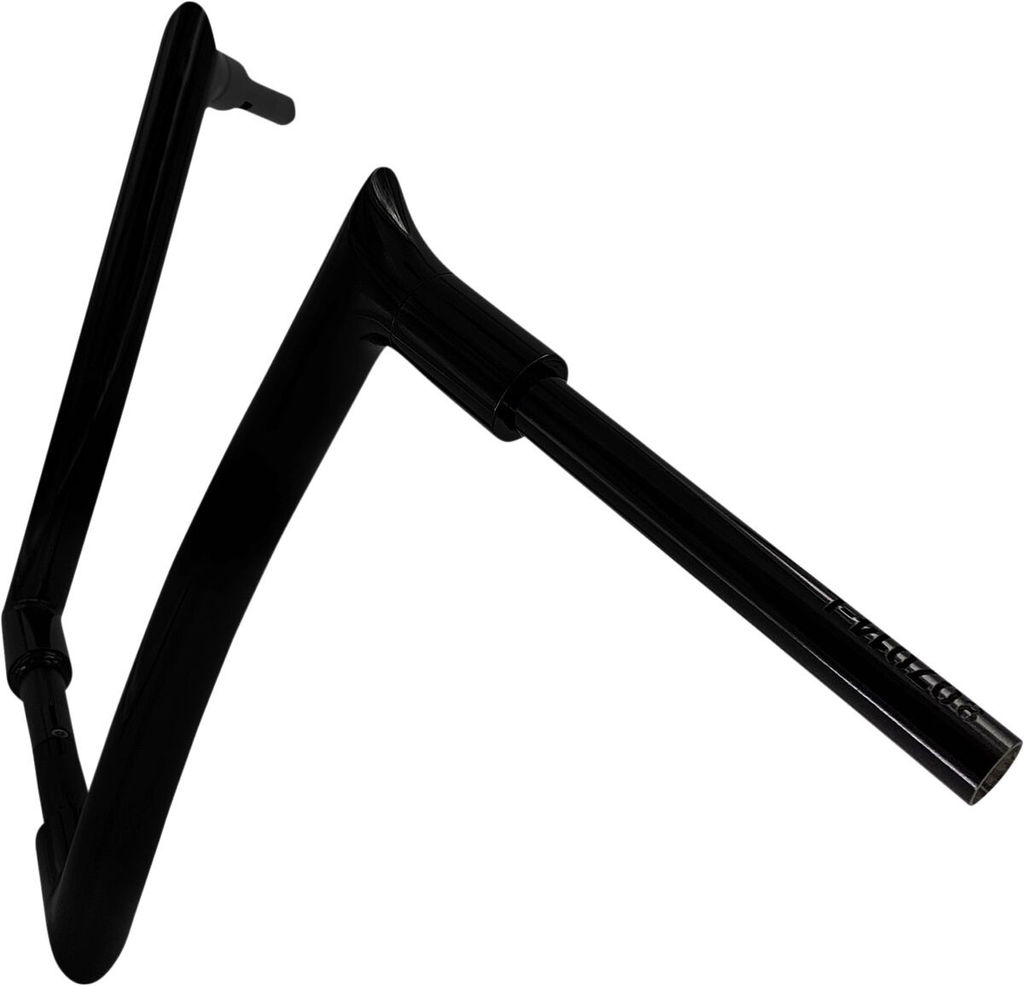

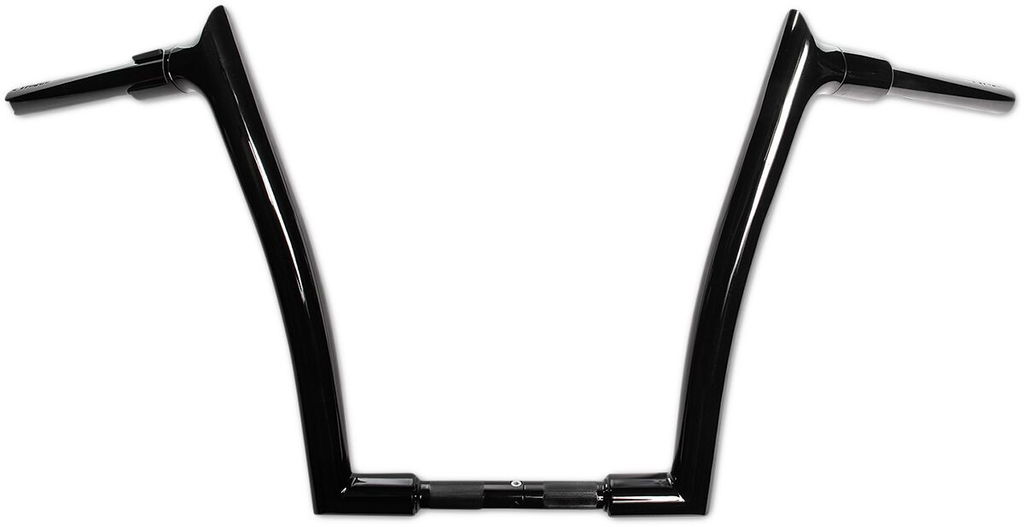

1-1/2" EZ Install Pointed Top Handlebar

Bolt-together, two-piece handlebar that takes up half the shelf space and is easy to ship

CNC mandrel-bent from 1-1/2” diameter x .095” wall heavy tube

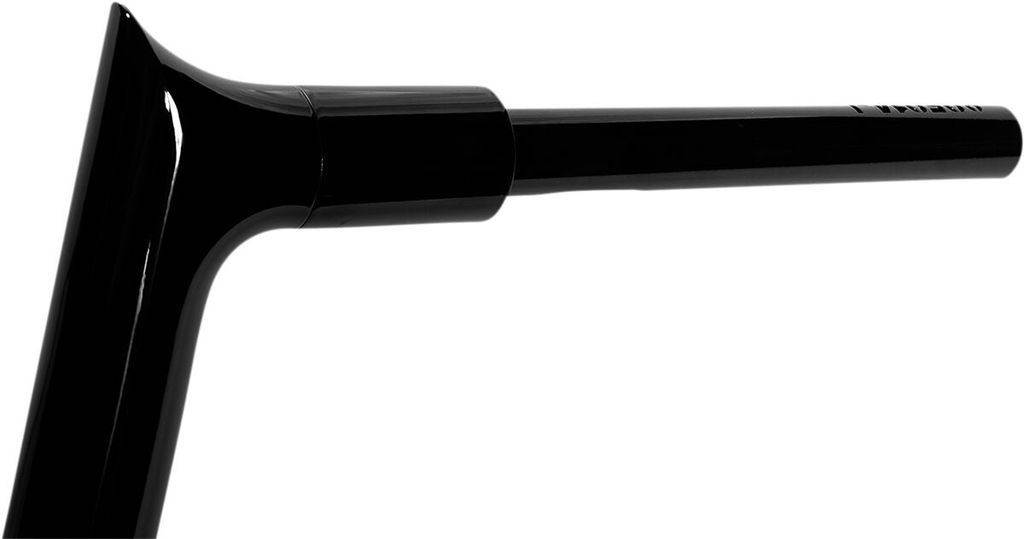

Adjustable 1-1/2" collar next to handlebar controls for a custom finished look

EZ install means no more need to fight internal wiring, install in minutes

Bar with "squared" lower bends also has additional slots to ease wire routing

Knurled and notched for TBW applications

Made in the USA

Accepts OEM heated grips.

Not for CVO models with hydraulic clutches.

Rise	35,5 cm (14")
Brand	FAT BAGGERS INC.
Style	Batwing
Units	Each
Width	89 cm (35")
Features	Accepts Heated Grips| For Cable Clutch| Knurled Center| Notched for Throttle-By-Wire
Material	Steel
Type/bend	Ape Hanger
Base color	Black
Rise metric	35.5 cm
Center width	26 cm (10-1/4")
Color/finish	Black
Product name	Handlebar
Riding style	Street
Width metric	89 cm
Rise imperial	14"
Pullback/sweep	20,5 cm (8")
Research value	Finalized
Width imperial	35"
Clamping diameter	25,4 mm (1")
Controls diameter	25,4 mm (1")
Handlebar diameter	38 mm (1-1/2")
Vendor part number	807014-B
Center width metric	26.5 cm
Center width imperial	10-1/4"
Pullback/sweep metric	20.5 cm
Pullback/sweep imperial	8"
Clamping diameter metric	25.4 mm
Controls diameter metric	25.4 mm
Handlebar diameter metric	38 mm
Clamping diameter imperial	1"
Controls diameter imperial	1"
Handlebar diameter imperial	1-1/2"
