H-BAR KT BL1.51216-20FL

Beskrivning av H-BAR KT BL1.51216-20FL

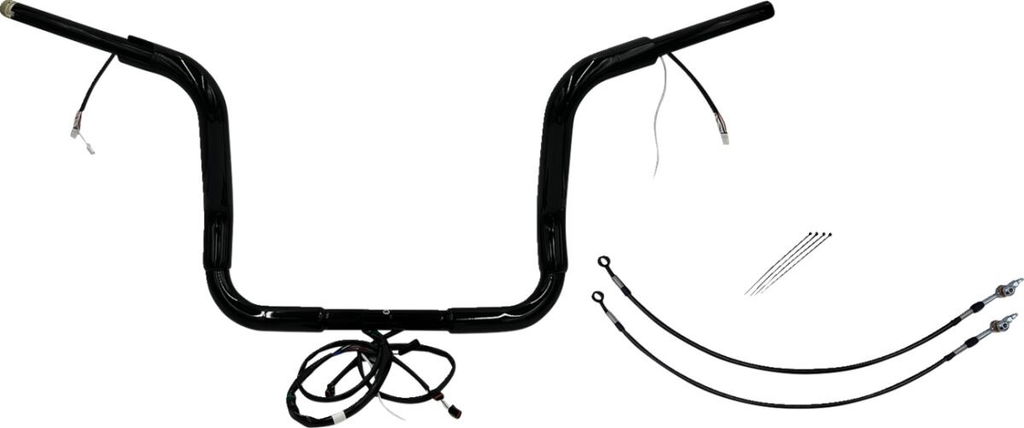

EZ Install Wired 1-1/2" Round Top Handlebar Kit

Wired for your handlebar controls, including a throttle-by-wire sensor installed

Remove the bars from the box and plug them into your motorcycle

No more need to fight internal wiring with our handlebars: you can install wiring in minutes

Non welded top corner is machined from billet steel with a smooth internal wire cavity that won't damage the internal wiring

Adjustable 1-1/2" collar next to handlebar controls for a custom finished look

CNC mandrel bent from 1-1/2" Dia. x .095" wall heavy tube

Bolt-together, 2-piece handlebar takes up half the shelf space

Made in the USA

Does not replace existing lines and cables, but extends them.

Accepts OEM heated grips.

Heated Grip Extension sold separately.

Comes with black lines/cables extensions.

Rise	30,5 cm (12")
Brand	FAT BAGGERS INC.
Style	Throttle-By-Wire
Units	Kit
Width	98 cm (38-1/2")
Height	30,5 cm (12")
End rise	30,5 cm (12")
Features	Accepts Heated Grips| Internal Wiring| Knurled Center| Pre-Wired
Material	Steel
Type/bend	Ape Hanger
Base color	Black
Base finish	Gloss
Rise metric	30.5 cm
Center width	38 cm (15")
Color/finish	Black| Gloss
Product name	Handlebar
Riding style	Street
Width metric	98 cm
Height metric	30.5 cm
Rise imperial	12"
Pullback/sweep	23 cm (9")
Research value	Finalized
Width imperial	38-1/2"
End rise metric	30.5 cm
Height imperial	12"
Clamping diameter	25,4 mm (1")
Controls diameter	25,4 mm (1")
End rise imperial	12"
Handlebar diameter	38 mm (1-1/2")
Vendor part number	802512-B
Center width metric	38 cm
Center width imperial	15"
Pullback/sweep metric	23 cm
Pullback/sweep imperial	9"
Clamping diameter metric	25.4 mm
Controls diameter metric	25.4 mm
Handlebar diameter metric	38 mm
Clamping diameter imperial	1"
Controls diameter imperial	1"
Handlebar diameter imperial	1-1/2"
