H-BAR KT CH1.51416-20FL

Beskrivning av H-BAR KT CH1.51416-20FL

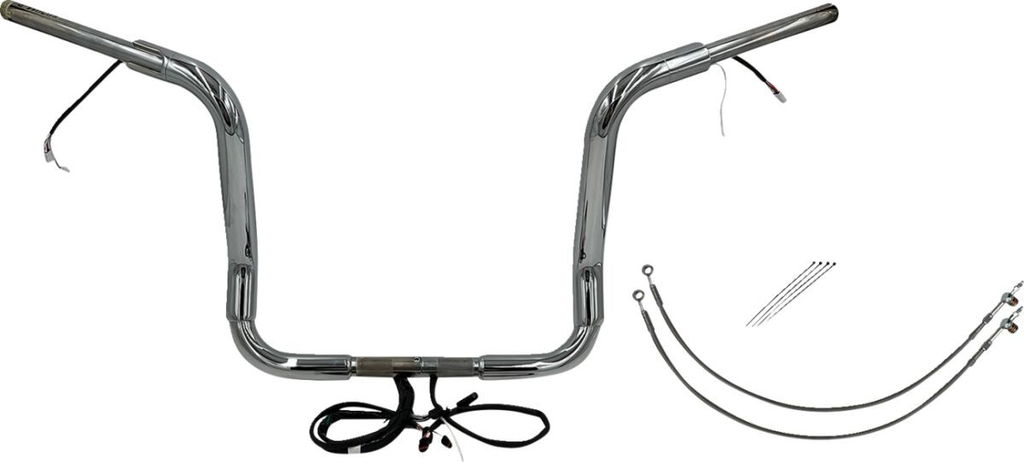

EZ Install Wired 1-1/2" Round Top Handlebar Kit

Wired for your handlebar controls, including a throttle-by-wire sensor installed

Remove the bars from the box and plug them into your motorcycle

No more need to fight internal wiring with our handlebars: you can install wiring in minutes

Non welded top corner is machined from billet steel with a smooth internal wire cavity that won't damage the internal wiring

Adjustable 1-1/2" collar next to handlebar controls for a custom finished look

CNC mandrel bent from 1-1/2" Dia. x .095" wall heavy tube

Bolt-together, 2-piece handlebar takes up half the shelf space

Made in the USA

Does not replace existing lines and cables, but extends them.

Accepts OEM heated grips.

Heated Grip Extension sold separately.

Comes with braided lines/cables extensions.

Rise	35,5 cm (14")
Brand	FAT BAGGERS INC.
Style	Throttle-By-Wire
Units	Kit
Width	98 cm (38-1/2")
Height	35,5 cm (14")
End rise	35,5 cm (14")
Features	Accepts Heated Grips| Internal Wiring| Knurled Center| Pre-Wired
Material	Steel
Type/bend	Ape Hanger
Base color	Silver
Base finish	Chrome
Rise metric	35.5 cm
Center width	38 cm (15")
Color/finish	Chrome
Product name	Handlebar
Riding style	Street
Width metric	98 cm
Height metric	35.5 cm
Rise imperial	14"
Pullback/sweep	23 cm (9")
Research value	Finalized
Width imperial	38-1/2"
End rise metric	35.5 cm
Height imperial	14"
Clamping diameter	25,4 mm (1")
Controls diameter	25,4 mm (1")
End rise imperial	14"
Handlebar diameter	38 mm (1-1/2")
Vendor part number	802514
Center width metric	38 cm
Center width imperial	15"
Pullback/sweep metric	23 cm
Pullback/sweep imperial	9"
Clamping diameter metric	25.4 mm
Controls diameter metric	25.4 mm
Handlebar diameter metric	38 mm
Clamping diameter imperial	1"
Controls diameter imperial	1"
Handlebar diameter imperial	1-1/2"
