Handlebar Assembly Phatbar Chr

Beskrivning av Handlebar Assembly Phatbar Chr

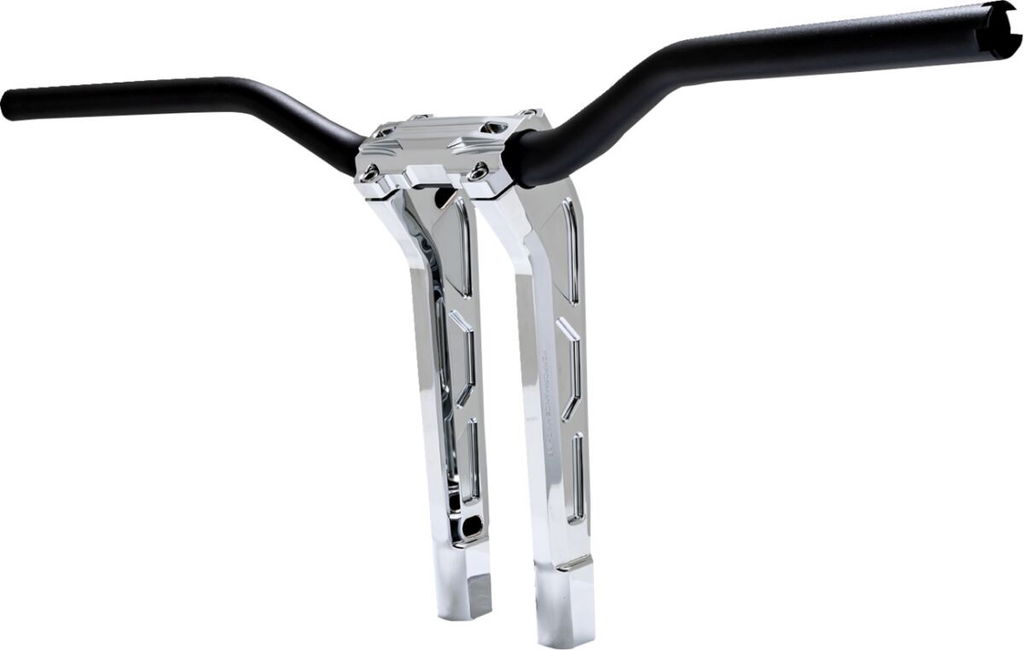

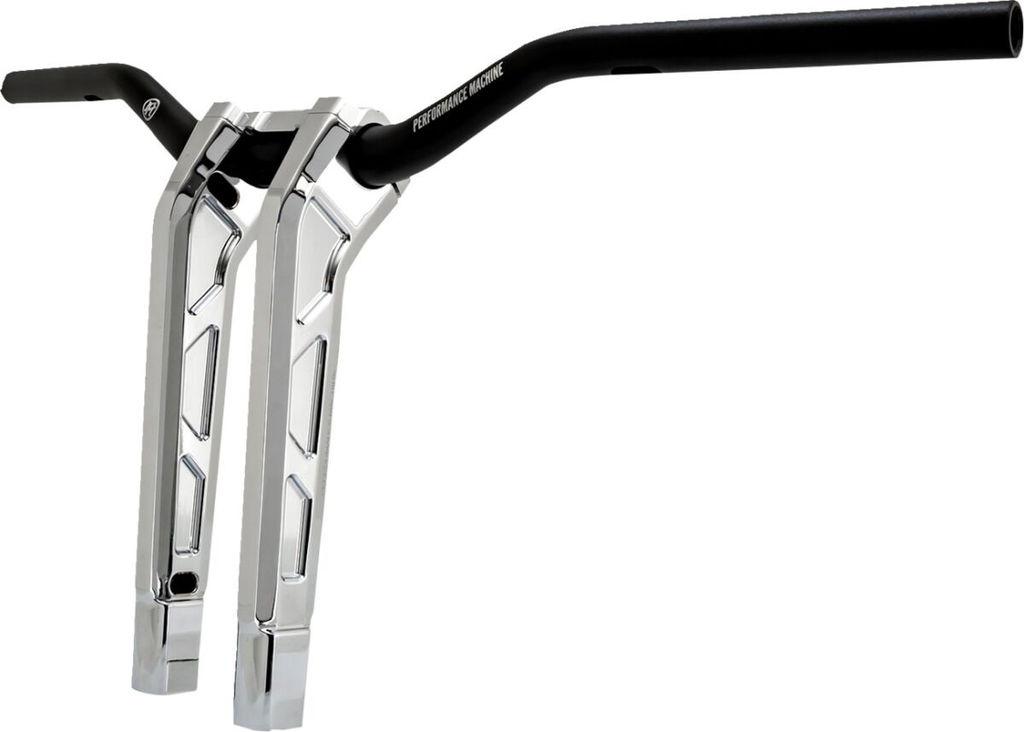

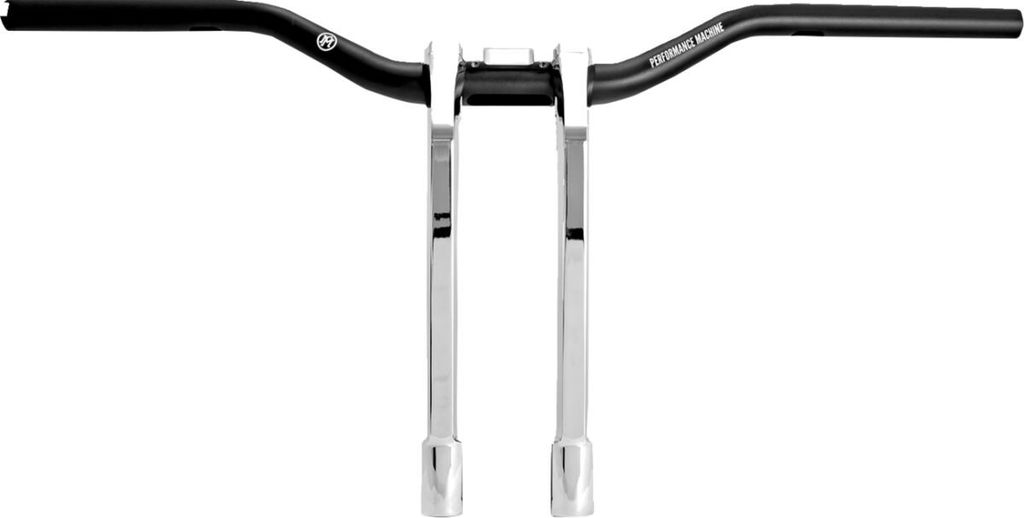

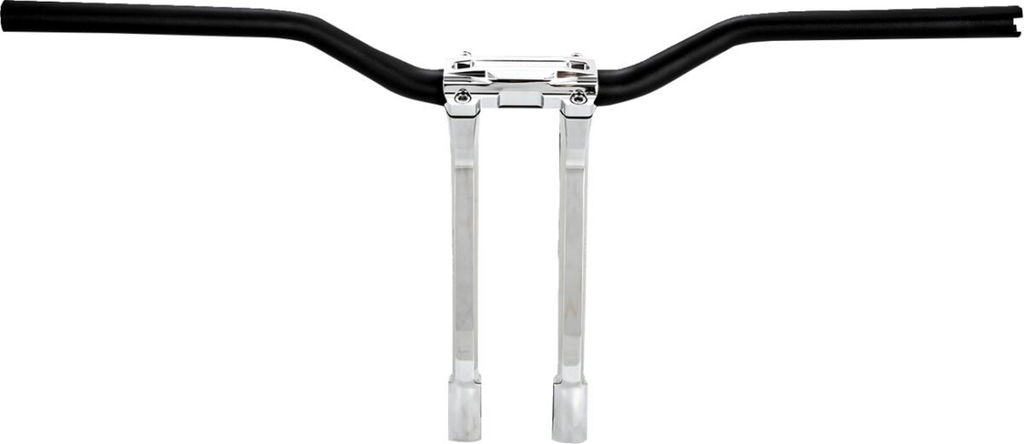

Phatbar & Riser Kit

Comes complete with a fly-by-wire ready aluminum handlebar and a billet riser set that mount to most Harley Davidson models

Bar features an 1-1/4" clamping area tapered down to 1" to accommodate stock hand controls without any modifications

Bar made from 7050-T6 aluminum with a 3” rise and slots for internal wiring

Risers are made from 6061-T6 billet aluminum

Compatible with cable throttle and electronic throttle applications

Rise	29 cm (11-1/2")
Brand	PERFORMANCE MACHINE (PM)
Units	Kit
Width	81,5 cm (32")
Height	37 cm (14-1/2")
End rise	63,5 mm (2-1/2")
Features	Cable Throttle Application| Internal Wiring| Notched for Throttle-By-Wire
Material	7050-T6 Aluminum
Type/bend	Ape Hanger
Base color	Silver
Base finish	Chrome
Color/finish	Black| Chrome
Product name	Handlebar
Pullback/sweep	76 mm (3")
Clamping diameter	32 mm (1-1/4")
Controls diameter	25,4 mm (1")
Handlebar diameter	32 mm (1-1/4")
Vendor part number	0208-2197M-CH
