MIRROR MO.VIEW CLASSIC 130

Beskrivning av MIRROR MO.VIEW CLASSIC 130

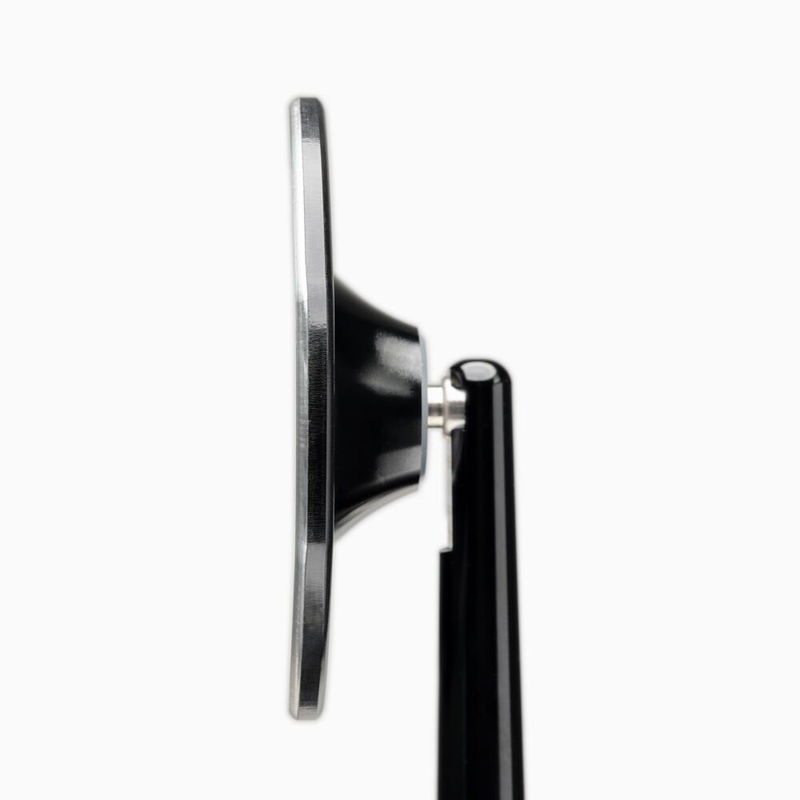

mo.view Classic 130 mm Handlebar End Mirror

The handlebar end mirror in classic round design can be mounted above or below the handlebar. The angle of the mirror arm is rigid.

Our glassless mirror series mo.view is unique worldwide. The special feature of our mirrors is the patented mirror surface, which is made directly from the metal of the body.

The aluminium itself is the mirror surface!

The mirror body itself is very thin and light, creating a weightless design without a rim or frame.

The convex mirror surface is produced by fly cutting using diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion and abrasion by an elaborate plasma coating in a vacuum.

The mirror body, mirror arm and the clamp for the handlebar end are milled on CNC machines from the solid aluminium and anodized high quality. All screws are made of stainless steel. The precise ball joint allows the comfortable and very stable adjustment of the mirror.

Glass breakage or glass falling out is simply not possible!

The handlebar end mirror can be mounted above or below the handlebars. The small arm can be swivelled. The mirror is suitable for the right and left side. It can be mounted directly on the handlebar end (22 mm and 1 inch) or, if the grips and fittings cannot be moved, using the mo.view bar adapter.

Diameter of the mirror body: 99 mm.

Thickness of the mirror body without ball head: 4.2 mm.

Length of the mirror arm: 110 mm.

Clamp diameter: can be used for 22 mm and 1 inch handlebars.

Clamp width: 12 mm.

Weight: 142 g.

Scope of delivery: 1x rear-view mirror mo.view classic 130 (with ECE marking) with arm, 1x clamp & instructions manual.

Type	Handlebar End
Brand	MOTOGADGET
Units	Each
Material	Aluminum
Stem length	13 cm (5-1/4")
Color/finish	Black
Product name	Mirror
Mounting style	Handlebar End
Mount color/finish	Black
Vendor part number	7002052
