MO.VIEW CLUB 150 ECE

Beskrivning av MO.VIEW CLUB 150 ECE

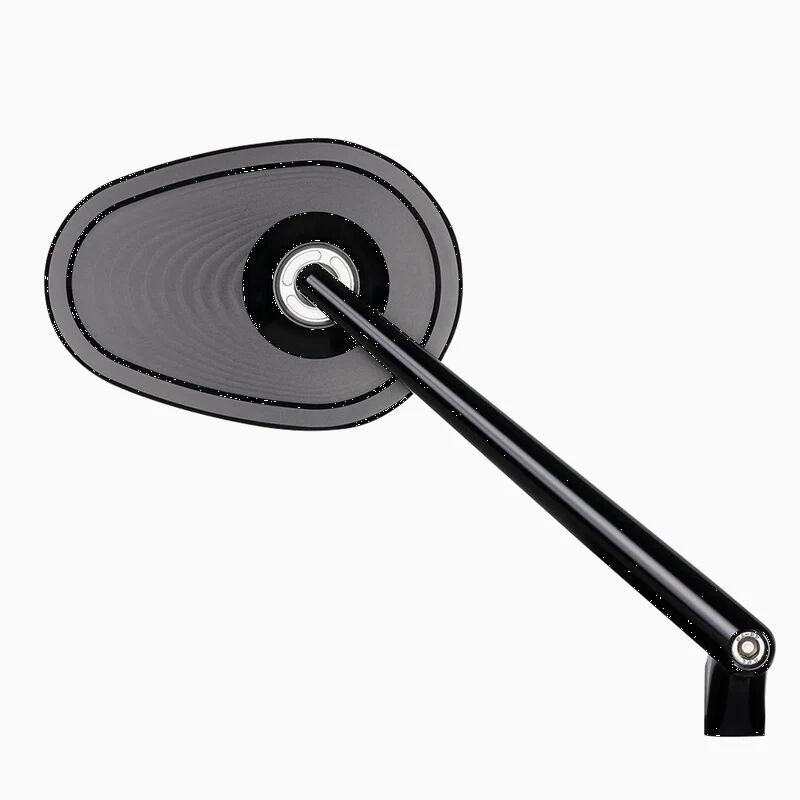

mo.view Club 150 mm Mirror

The mo.view Club mirror can be easily fitted to any M10 mirror thread on the handlebars. Depending on preference or vehicle type, there are two arm lengths to choose from that can be perfectly attached to the handlebars.

For some models - such as Harley-Davidson™ motorcycles - a matching mo.view screw kit is also available separately (part: 06410255).

Our glassless mirror series mo.view is unique in the world. The special feature of our mirrors is the patented mirror surface, which is worked directly from the metal of the body. The aluminium itself is the mirror surface.

The mirror body itself becomes very thin and light, creating a weightless design with no rim or frame. The convex mirror surface is manufactured by fly cutting using diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion and abrasion by a complex plasma coating in a vacuum.

The mirror body and mirror arm are milled from solid aluminium on CNC machines and anodized to high quality. All screws are made of stainless steel. The precise ball joint allows the comfortable and very stable adjustment of the mirror. Glass breakage or falling out is simply not possible.

The mounting mirror can be mounted on any mirror thread M10 on the handlebar.

Three mounting screws with different thread are supplied.

The mirror is suitable for the left and right side.

Mirror body width: 114 mm.

Mirror body height: 80 mm.

Thickness of the mirror body without ball head: 4.5 mm.

Length of the mirror arm: 150 mm.

Weight: 162 g.

Scope of delivery: 1x mo.view club add-on mirror (with ECE marking) with arm, 1 x screw M10 x 1.5, 1 x screw M10 x 1.25 right-hand thread, 1 x screw M10 x 1.25 left-hand thread & instructions manual.

Type	Side View
Brand	MOTOGADGET
Units	Each
Material	Aluminum
Stem length	15 cm (6")
Color/finish	Black
Product name	Mirror
Mirror head width	114 mm (4-1/2")
Mirror head height	80 mm (3-1/8")
Mount color/finish	Black
Vendor part number	7003070
