MO.VIEW CLUB 110 FLIP ECE

Beskrivning av MO.VIEW CLUB 110 FLIP ECE

mo.view Club Flip 110 mm Mirror

The mo.view club flip mirror with swivel mirror arm and defined 45° locking angles is perfect for narrow passages, during transportation or when space is at a premium in the garage.

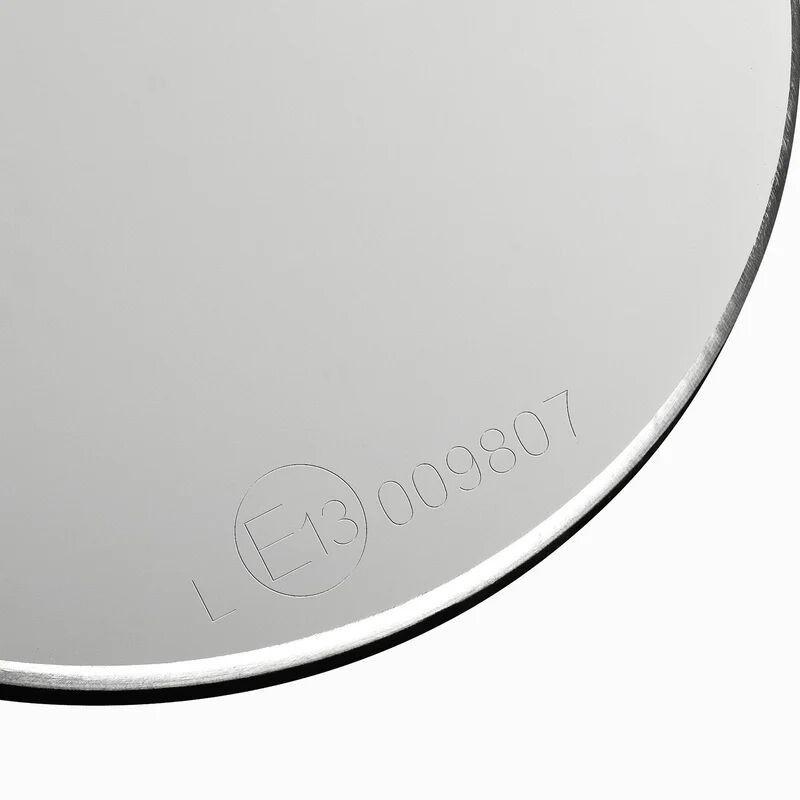

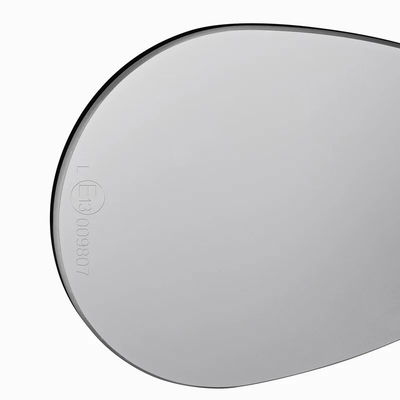

Our glassless mirror series mo.view is unique in the world. The special feature of our mirrors is the patented mirror surface, which is worked directly from the metal of the body. The aluminium itself is the mirror surface.

The mirror body itself becomes very thin and light, creating a weightless design with no rim or frame. The convex mirror surface is manufactured by fly cutting using diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion and abrasion by a complex plasma coating in a vacuum.

The mirror body and mirror arm are milled from solid aluminium on CNC machines and anodized to a high quality. All screws are made of stainless steel. The precise ball joint allows the mirror to be adjusted comfortably and very stably. Glass breakage or glass falling out is simply not possible.

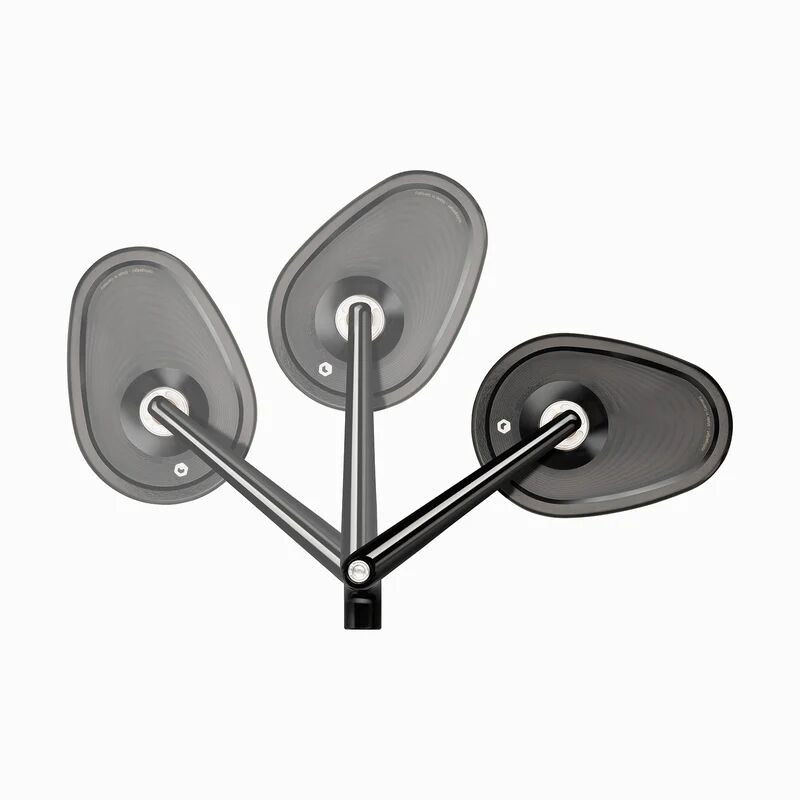

A special feature of the mirrors in the flip series is the pivoting mirror arm with defined locking angles at 45° intervals. This allows the mirror to be tilted upwards as required without changing the mirror setting.

Extremely practical for narrow passages, space problems in the garage or for transportation. The locking mechanism is very stable and cannot be adjusted accidentally. The mirror does not vibrate even at high speeds when mounted correctly.

The surface-mounted mirror can be fitted to any M10 mirror thread on the handlebars.

Three fixing screws with different threads are supplied.

The mirror is suitable for the left and right side.

Mirror body width: 114 mm.

Mirror body height: 80 mm.

Thickness of the mirror body without ball head: 4.5 mm.

Length of the mirror arm: 110 mm.

Weight: 316 g.

Scope of delivery: 1x mo.view club flip add-on mirror (with ECE marking) with arm, 1 x screw M10 x 1.5, 1 x screw M10 x 1.25 right-hand thread, 1 x screw M10 x 1.25 left-hand thread & instructions manual.

Type	Side View
Brand	MOTOGADGET
Units	Each
Material	Aluminum
Stem length	11 cm (4-1/4")
Color/finish	Black
Product name	Mirror
Vendor part number	7003063
