ENGINE T111 BLK 07-16

Beskrivning av ENGINE T111 BLK 07-16

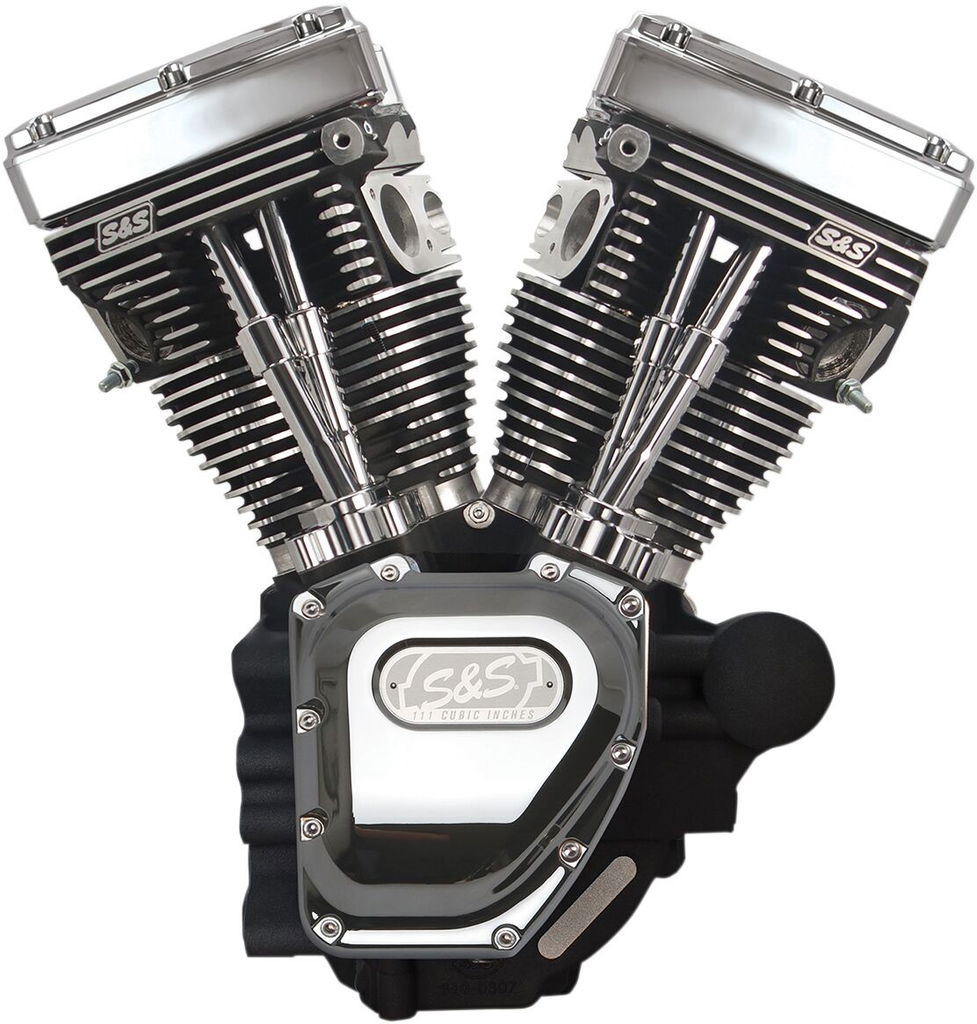

T111 Long Block Engine

Super Stock™ heads and crankcase

Easy start 585 gear drive cams with redesigned cam cover

TC3 oil pump and cam plate

Made in the USA

Intake system not included; compatible with stock or aftermarket intake systems.

Revised oil routing on '99-'06 Touring models make it so an oil line installation kit is no longer required.

Cylinder heads on T-Series long block engines are '99-'05 style. Owners of '06 models will need to purchase a set of '99-'05 style, offset intake flanges.

Cylinder heads on this engine is specially machined to compensate for the non-stock cylinder length. As a result, it is compatible with the manifold and throttle body with stock length intake runners. In addition, the breather vent bolt location has been adjusted so it is in the stock location, so stock style air cleaner back plates will bolt up to this engine.

Not recommended for trike models. Requires oil line installation kit.

Type	Long Block
Brand	S&S CYCLE
Model	T-Series
Units	Each
Bore size	4,125"
Color/finish	Chrome| Wrinkle Black
Displacement	111"
Product name	Engine
Stroke length	4,125"
Compression ratio	9,8:1
Piston head shape	Flat Top
Vendor part number	310-0402A
Compression ratio imperial	9.8:1
