ENGINE T124HCLB BLK 99-06

Beskrivning av ENGINE T124HCLB BLK 99-06

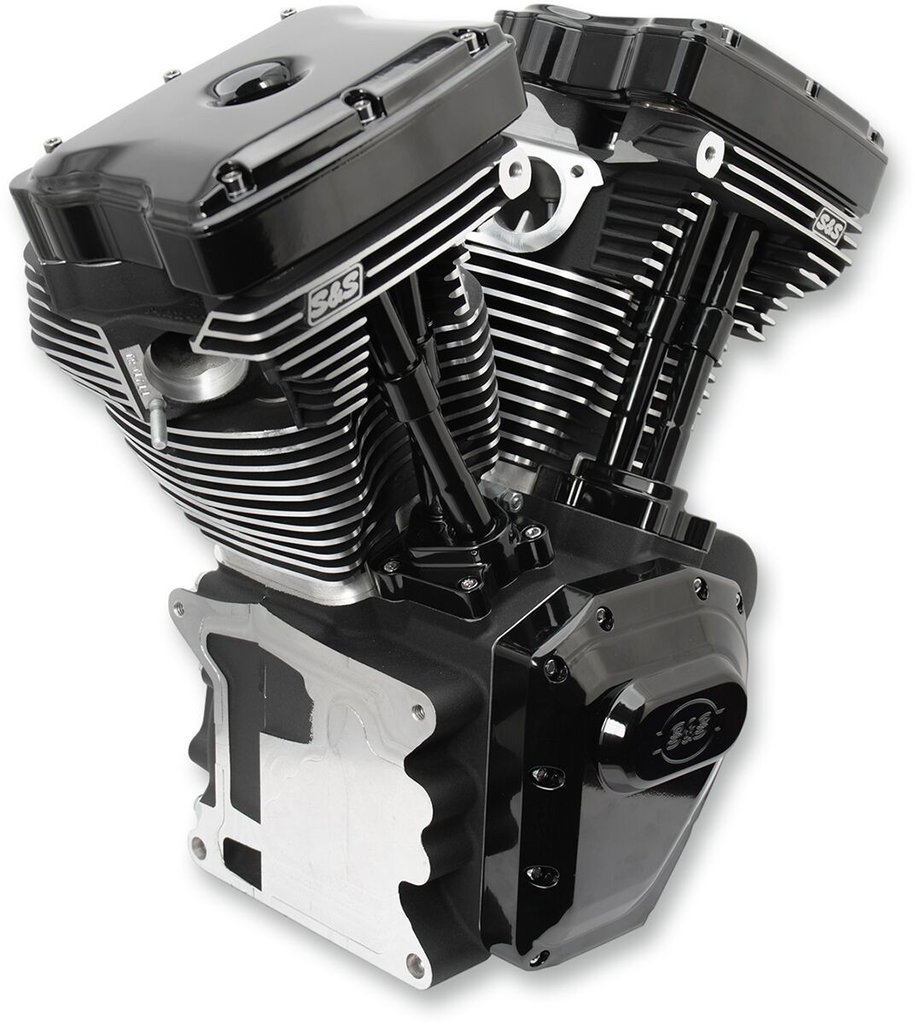

T124 High Compression Long Block Engine

High compression

Special head machining fits stock length intake manifolds (S&S manifold size 410)

Revised oil routing on '99-'06 Touring models make it so an oil line installation kit is no longer required

Includes Super Stock™ heads, crankcases, TC3 oil pump, cam plate, and easy start 640 gear drive cams

Made in the U.S.A.

No fuel system or ignition systems included.

T- series engine is not compatible with Softail models.

The breather vent bolt location has been adjusted to the stock location, the stock style air cleaner back plates will bolt up to this engine.

Cylinder heads on the T-series long block engine are '99-'05 style. '06 models will require a set of '99-'05 style offset intake flanges.

The cylinder heads on this engine is specially machined to compensate for the non-stock cylinder length. That makes it compatible with the manifold and the throttle body with stock length intake runners.

Oil line installation kit not required.

Type	Long Block
Brand	S&S CYCLE
Model	T-Series
Style	High Compression
Units	Each
Bore size	4,125"
Base color	Black
Color/finish	Black
Displacement	124"
Product name	Engine
Stroke length	4,625"
Compression ratio	10,8:1
Piston head shape	Flat Top
Vendor part number	310-0831A
Compression ratio imperial	10.8:1
