ENGINE T124LCLB BLK 07-16

Beskrivning av ENGINE T124LCLB BLK 07-16

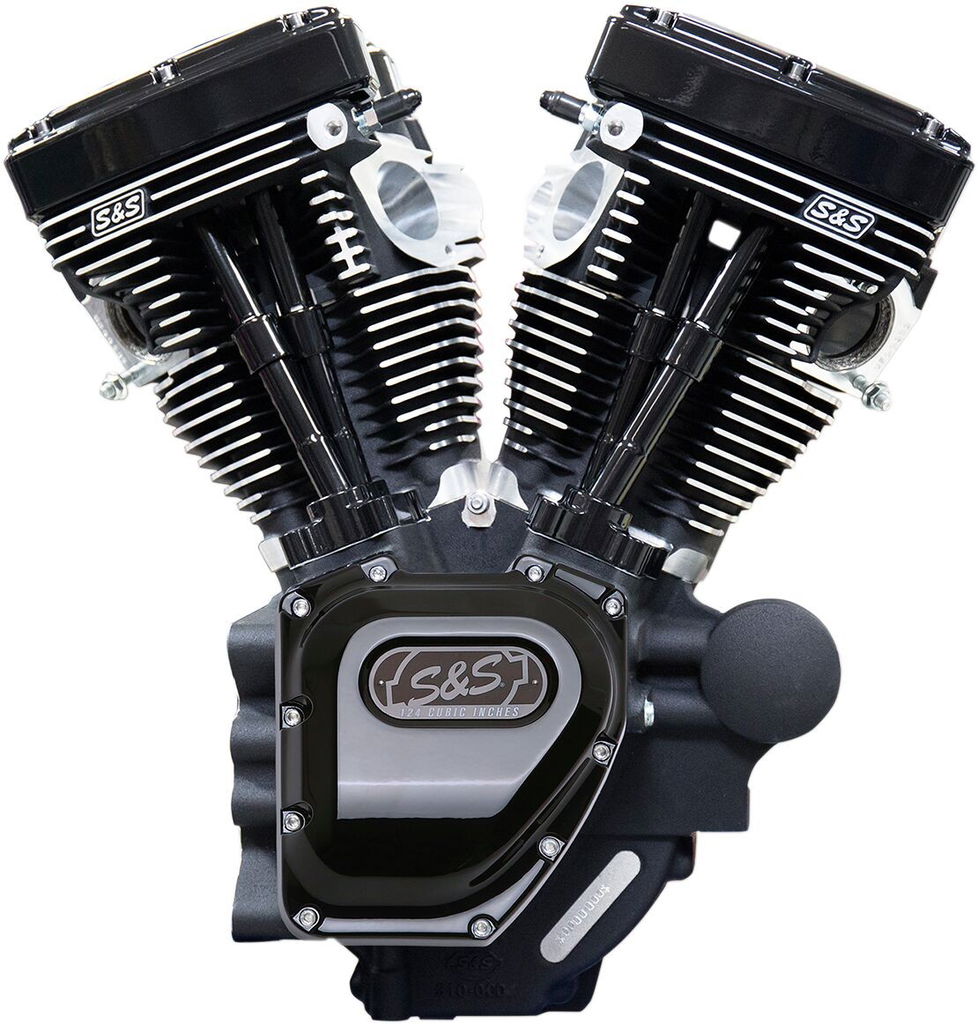

T124 Low Compression Long Block Engine

Includes Super Stock™ heads, T2 crankcase, high flow oil pump, cam cover and easy start 585 gear drive cams

Special head machining fits stock length intake manifolds (S&S manifold size 405)

Stock style breathing system; compatible with stock and most performance air cleaners

No fuel system or ignition systems included.

Revised oil routing on '99-'06 Touring models make it so an oil line istallation kit is no longer required.

Cylinder heads on T-Series long block engines are '99 - '05 style. Owners of '06 models will need to purchase a set of '99 - '05 style, offset intake flanges.

Cylinder heads on these engines are specially machined to compensate for the non-stock cylinder length. As a result, they are compatible with manifolds and throttle bodies with stock length intake runners. In addition, the breather vent bolt locations have been adjusted so they are in the stock location, so stock style air cleaner back plates will bolt up to these engines.

Won't fit twin cooled models. Not recommended for trike models. Requires oil line installation kit.

Type	Long Block
Brand	S&S CYCLE
Model	T-Series
Style	Low Compression
Units	Each
Bore size	4,125"
Color/finish	Black
Displacement	124"
Product name	Engine
Stroke length	4,625"
Compression ratio	10,2:1
Vendor part number	310-0836A
Compression ratio imperial	10.2:1
