KIT HSU 124 07-17TCA BLK

124" Hot Set Up® Engine Performance Kit

For non-balanced Twin Cam models

Converts a stock engine to 124" using the stock crankcases

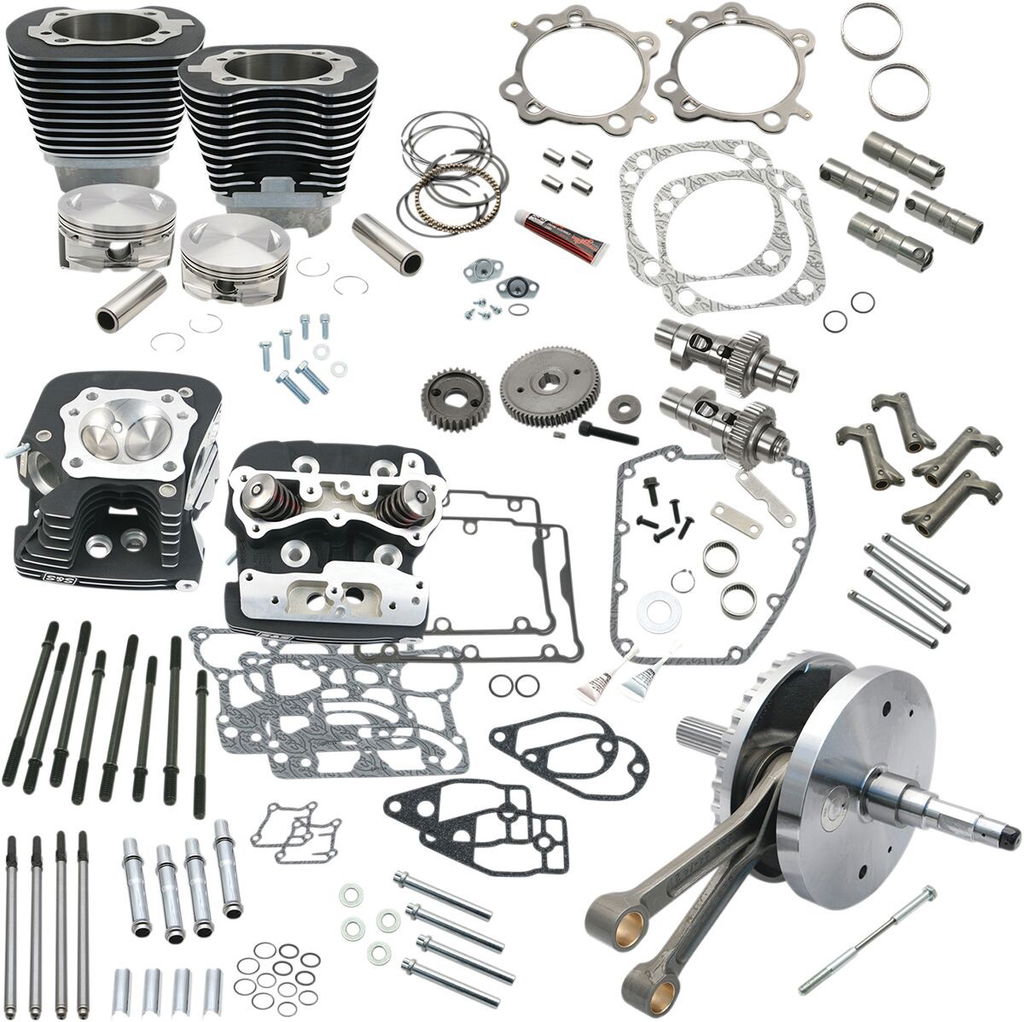

Include S&S Super Stock® 91 cc cylinder heads , 4.125” bore cylinders, forged big bore flattop pistons, S&S 4.625” stroke flywheel assembly, S&S 640 gear drive Easy Start cams, S&S premium tappets, S&S adjustable pushrods, roller rocker arms, and all hardware, gaskets and instructions

Made in the USA

EFI system must be recalibrated.

Fuel or ignition system not included.

All clearances and assembly specifications will need to be checked.

Although the engine is 0.960" taller than stock, there are no frame clearance problems, and a stock EFI throttle body will fit because the manifold mounting surfaces of the heads have been specially machined to fit a stock length manifold.

Not for use on twin cooled motors. Will fit '06 Dyna. Not recommended for compression ratios higher than 10:1 for Tri Glide® or other three wheel models (including conversions) due to extra loads caused by the lugging nature of these bikes. Detonation and subsequent engine damage may result.
