POWER PK CHN 99-06 BLK

Beskrivning av POWER PK CHN 99-06 BLK

100" Power Package Engine Performance Kit

Made in the USA

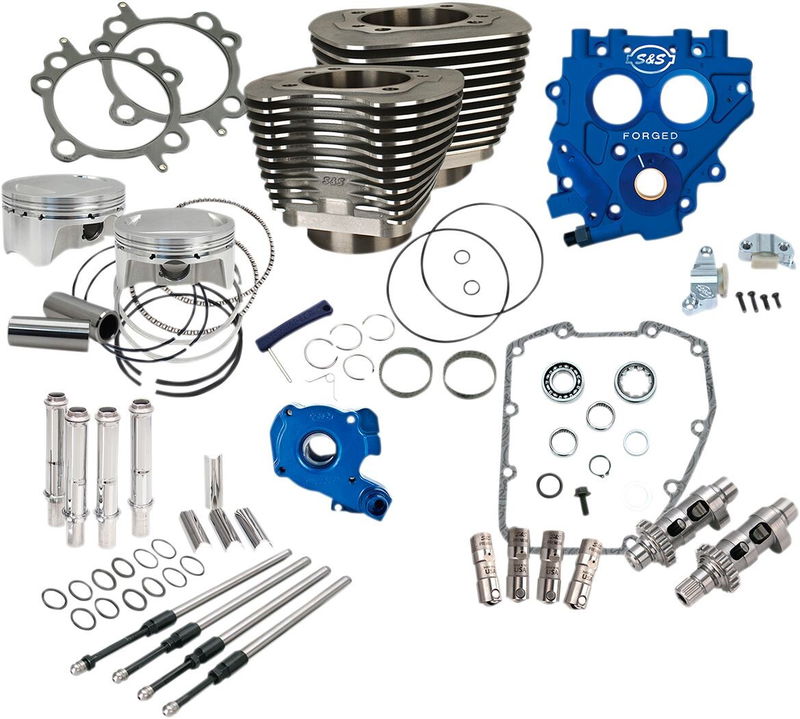

S&S 4.000" Big-Bore Cylinders, Piston Kits, S&S 585 Easy Start® Cams, S&S Quickee Pushrods, TC3 Cam Support Plate, TC3 Oil Pump, and Precision Hydraulic Tappets are included in this kit

S&S Cylinder

2x S&S 4.000" bore cylinders

Low friction ductile cast iron liner

Bolt in

No maching, balancing, or splitting the crankcase

Can be used with stock heads

Increase displacement from 88 ci to 100 ci

Piston Kit

2x 4.000" pistons for front and rear

2x 0.927" piston pins

4x Piston pin clips with installation tool

2x Ring packs which includes the top, second, oil rail and expander rings

Provides 10.5:1 compression ratio

S&S 585 Easy Start® Cam Specifications

Intake: Open 20° / Close 45° / Duration at 0.053" 245° / Valve Lift 0.585"

Exhaust: Open 60° / Close 20° / Duration at 0.053" 260° / Valve Lift 0.585"

S&S Quickee Pushrods

Adjustable with chrome tubes

TC3 Cam Support Plate and TC3 Oil Pump

Machined from aluminum forgings

Ensures consistent oil pressure and engine longevity

Precision Hydraulic Tappets

Close tolerances for low leak down rates

Reduced valve train noise from start to shut down

Not for '06 Dyna.

Not compatible with S&S 79 cc Super Stock® heads.

Not recommended for Tri-Glide or other three wheel models due to lugging nature of these bikes.

'99-'04 Twin Cams will require the additional purchase of valve spring kit (sold separately).

Type	Engine
Brand	S&S CYCLE
Model	Performance Kit
Style	585CE
Units	Kit
Features	Chrome Pushrod Tubes
Bore size	4,000"
Color/finish	Wrinkle Black
Displacement	100"
Product name	Power Package
Cam drive type	Chain
Compression ratio	10,5:1
Vendor part number	330-0664
