CAMS 21H 06DYNA 07-17 TC
- SKU 09250112
- Lev. SKU: 216321
- EAN / GTIN 09250112
- Fri Frakt vid köp över 1400 kr!
Beskrivning av CAMS 21H 06DYNA 07-17 TC

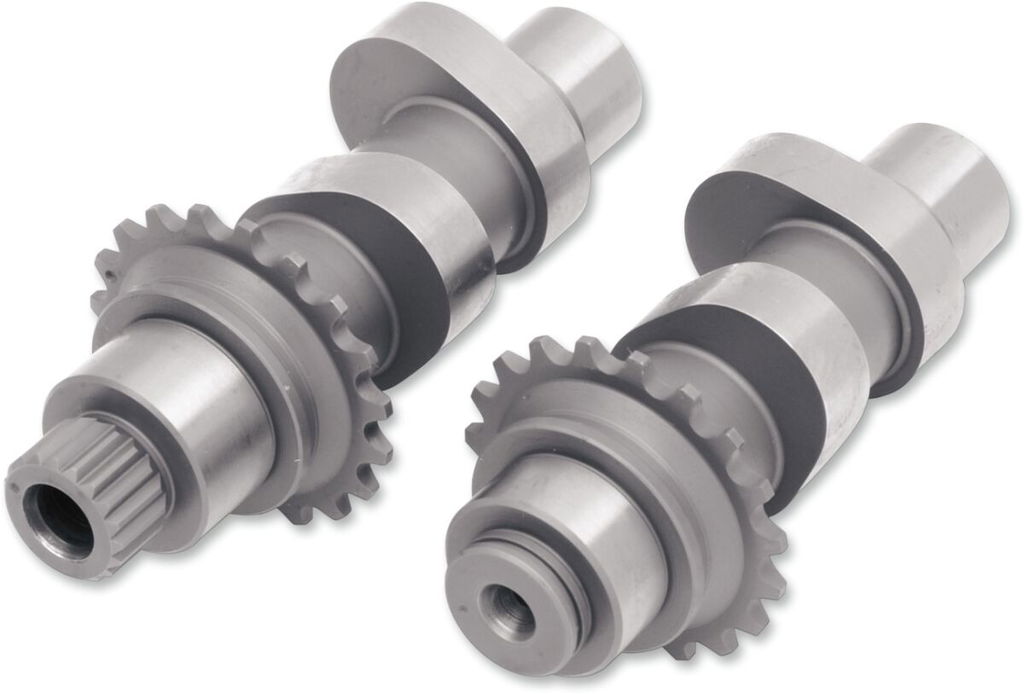

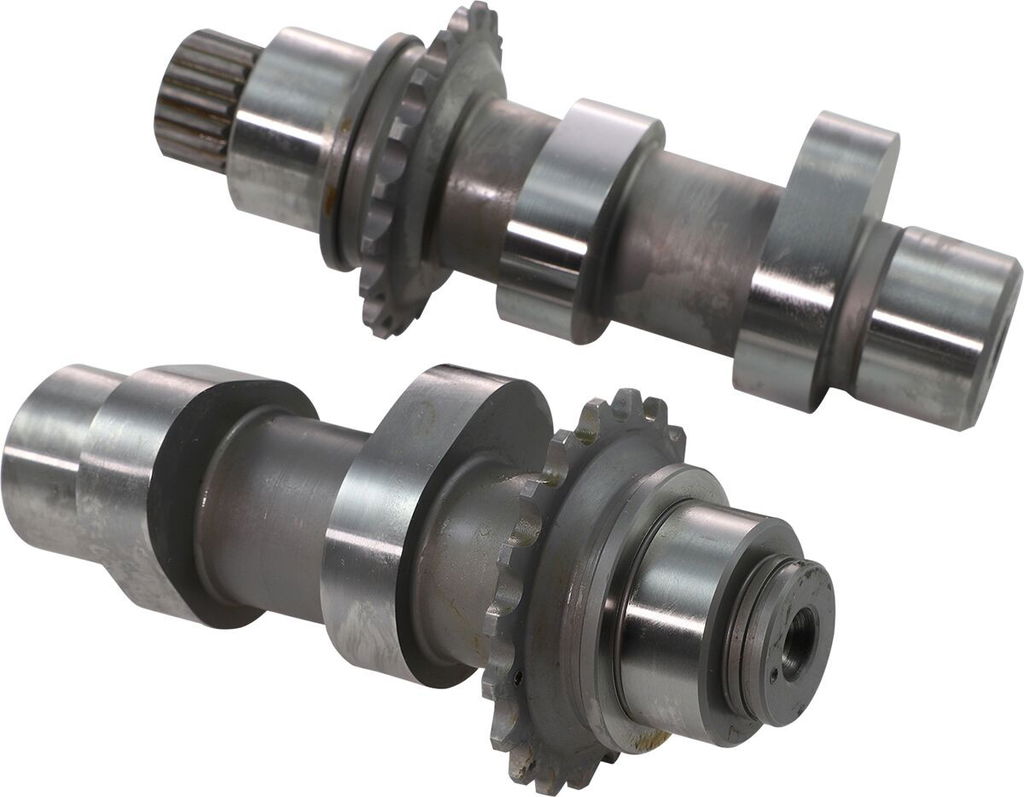

Cam Set for Chain DriveManufactured with the help of a computer with cam design capabilities Made from alloy steel billets and heat-treated processes are utilized Made in the USA Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance. '00-'06 model cams use a splined cam drive sprocket, for '99 a splined cam drive sprocket is required. Bolt-in cam for more torque with stock compression.
Runs best with low restriction exhausts (1700-5200 rpm).
Similar to the EV-23 cam.
Cams works well with fuel injection or carburetor models.
Can be used with stock valve springs and tappets.
Works well with carbs or fuel injection.
| Type | Chain Drive |
| Brand | ANDREWS |
| Grind | 21 Series |
| Units | Pair |
| Application | Exhaust| Intake |
| Intake lift | 0,498" |
| Intake open | 10° |
| Exhaust lift | 0,498" |
| Exhaust open | 41° |
| Intake close | 30° |
| Product name | Cam Set |
| Riding style | Street |
| Exhaust close | 8° |
| Research value | Level 2 |
| Intake duration | 255° |
| Exhaust duration | 264° |
| Intake lift at tdc | 0,134" |
| Vendor part number | 216321 |
| Exhaust lift at tdc | 0,121" |
| Intake lift imperial | 0.498" |
| Intake open imperial | 10° |
| Exhaust lift imperial | 0.498" |
| Exhaust open imperial | 41° |
| Intake close imperial | 30° |
| Exhaust close imperial | 8° |
| Intake lobe centerline | 100° |
| Exhaust lobe centerline | 106° |
| Intake duration imperial | 255° |
| Exhaust duration imperial | 264° |
| Intake lift at tdc imperial | 0.134" |
| Exhaust lift at tdc imperial | 0.121" |
| Intake lobe centerline imperial | 100° |
| Exhaust lobe centerline imperial | 106° |
