CAMS 26H 06DYNA 07-17 TC

Beskrivning av CAMS 26H 06DYNA 07-17 TC

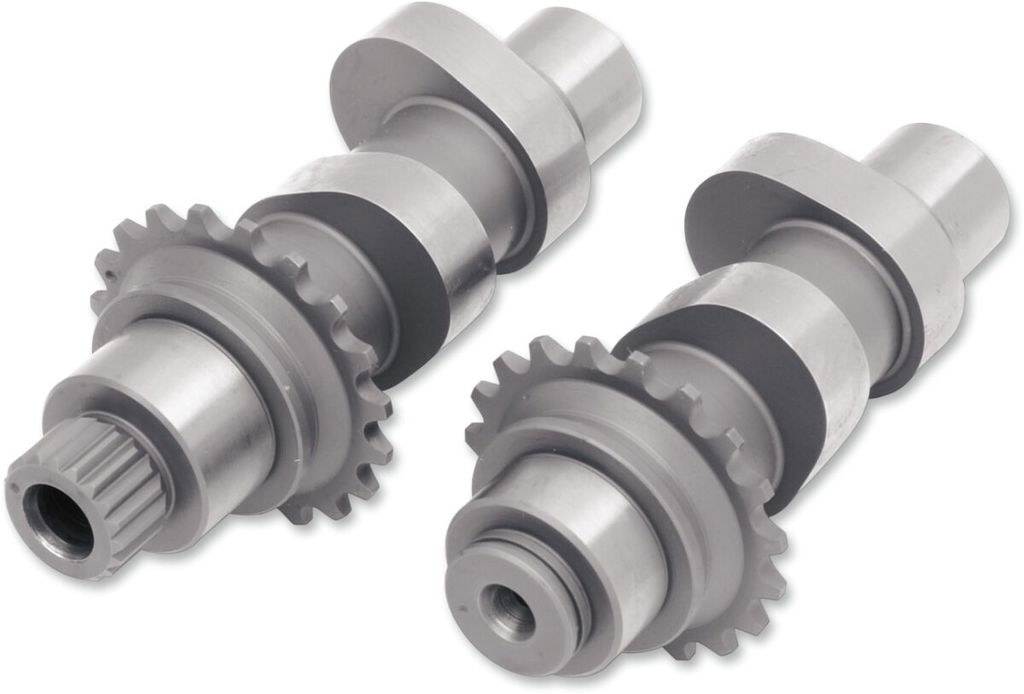

Cam Set for Chain Drive

Manufactured with the help of a computer with cam design capabilities

Made from alloy steel billets and heat-treated processes are utilized

Made in the USA

Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.

'00-'06 model cams use a splined cam drive sprocket, for '99 a splined cam drive sprocket is required.

Bolt-in cam for lower rpm torque on heavier bikes. For two-up touring. Good power from 1800-5500 rpm. Can be used wit stock springs and tappets. Works well with carbs or fuel injection.

Type	Chain Drive
Brand	ANDREWS
Grind	26 Series
Units	Pair
Application	Exhaust| Intake
Intake lift	0,490"
Intake open	11°
Exhaust lift	0,490"
Exhaust open	41°
Intake close	35°
Product name	Cam Set
Riding style	Street
Exhaust close	9°
Research value	Level 2
Intake duration	226°
Exhaust duration	266°
Intake lift at tdc	0,138"
Vendor part number	216326
Exhaust lift at tdc	0,120"
Intake lift imperial	0.490"
Intake open imperial	11°
Exhaust lift imperial	0.490"
Exhaust open imperial	41°
Intake close imperial	35°
Exhaust close imperial	9°
Intake lobe centerline	102°
Exhaust lobe centerline	106°
Intake duration imperial	226°
Exhaust duration imperial	266°
Intake lift at tdc imperial	0.138"
Exhaust lift at tdc imperial	0.120"
Intake lobe centerline imperial	102°
Exhaust lobe centerline imperial	106°
