CAMS 31H 06DYNA 07-17 TC
5 869 kr
- SKU 09250114
- Lev. SKU: 216331
- EAN / GTIN 09250114
- Fri Frakt vid köp över 1000 kr!
Beskrivning av CAMS 31H 06DYNA 07-17 TC

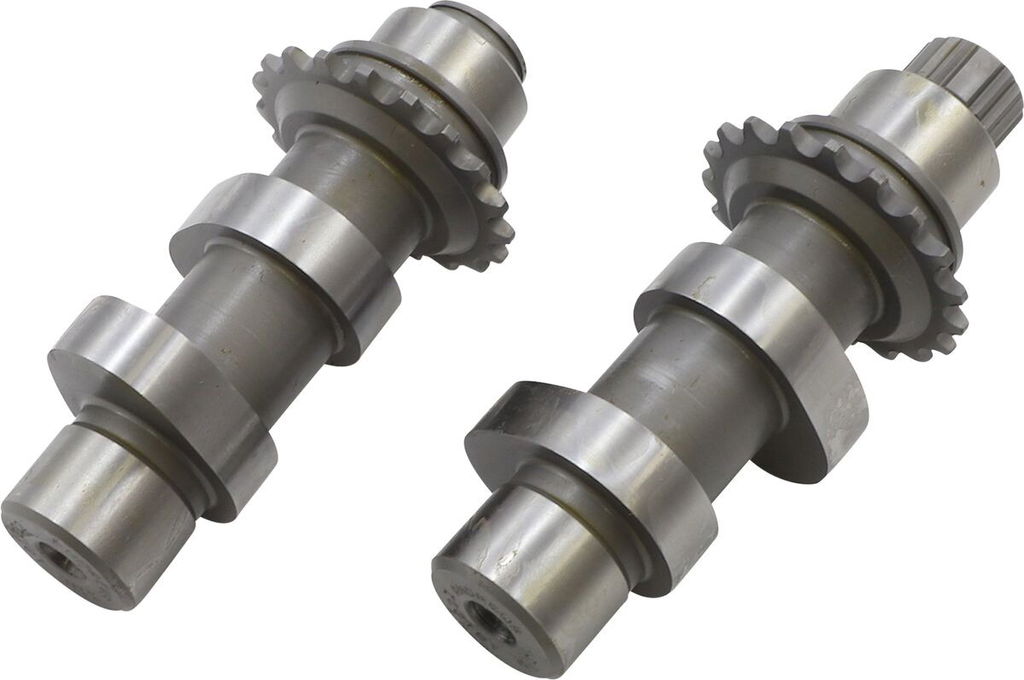

Cam Set for Chain DriveManufactured with the help of a computer with cam design capabilities Made from alloy steel billets and heat-treated processes are utilized Made in the USA Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance. '00-'06 model cams use a splined cam drive sprocket, for '99 a splined cam drive sprocket is required. Great cam for motors with 95+" and 10.0:1 compression ratio.
Lower TDC lift means easy installation
Similar to 37G but different timing (2000-5800 rpm power range).
Can be used with stock springs and tappets.
| Type | Chain Drive |
| Brand | ANDREWS |
| Grind | 31 Series |
| Units | Pair |
| Application | Exhaust| Intake |
| Intake lift | 0,510" |
| Intake open | 10° |
| Exhaust lift | 0,510" |
| Exhaust open | 52° |
| Intake close | 46° |
| Product name | Cam Set |
| Exhaust close | 8° |
| Intake duration | 236° |
| Exhaust duration | 240° |
| Intake lift at tdc | 0,131" |
| Vendor part number | 216331 |
| Exhaust lift at tdc | 0,120" |
| Intake lobe centerline | 108° |
| Exhaust lobe centerline | 112° |
