CAMS 55H 06DYNA 07-17 TC
- SKU 09250118
- Lev. SKU: 216355
- EAN / GTIN 09250118
- Fri Frakt vid köp över 1400 kr!
Beskrivning av CAMS 55H 06DYNA 07-17 TC

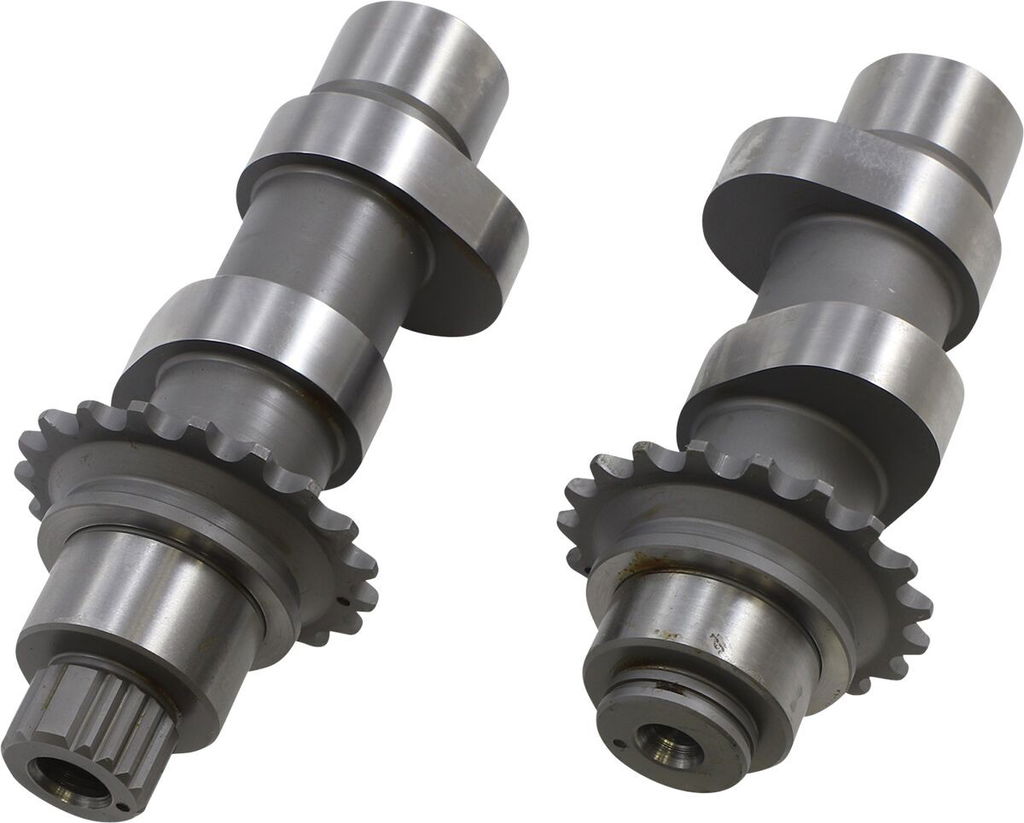

Cam Set for Chain DriveManufactured with the help of a computer with cam design capabilities Made from alloy steel billets and heat-treated processes are utilized Made in the USA Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance. '00-'06 model cams use a splined cam drive sprocket, for '99 a splined cam drive sprocket is required. Cams for maximum torque and horsepower at higher rpm ranges (2600-6000+ rpm).
Designed for engines with 9.5:1 compression ratio or higher with 88"-95" motors.
Coil bind must be checked, but stock tappets can be used.
| Type | Chain Drive |
| Brand | ANDREWS |
| Grind | 55 Series |
| Units | Pair |
| Application | Exhaust| Intake |
| Intake lift | 0,550" |
| Intake open | 22° |
| Exhaust lift | 0,550" |
| Exhaust open | 52° |
| Intake close | 46° |
| Product name | Cam Set |
| Riding style | Street |
| Exhaust close | 20° |
| Research value | Level 2 |
| Intake duration | 248° |
| Exhaust duration | 252° |
| Intake lift at tdc | 0,197" |
| Vendor part number | 216355 |
| Exhaust lift at tdc | 0,181" |
| Intake lift imperial | 0.550" |
| Intake open imperial | 22° |
| Exhaust lift imperial | 0.550" |
| Exhaust open imperial | 52° |
| Intake close imperial | 46° |
| Exhaust close imperial | 20° |
| Intake lobe centerline | 102° |
| Exhaust lobe centerline | 106° |
| Intake duration imperial | 248° |
| Exhaust duration imperial | 252° |
| Intake lift at tdc imperial | 0.197" |
| Exhaust lift at tdc imperial | 0.181" |
| Intake lobe centerline imperial | 102° |
| Exhaust lobe centerline imperial | 106° |
