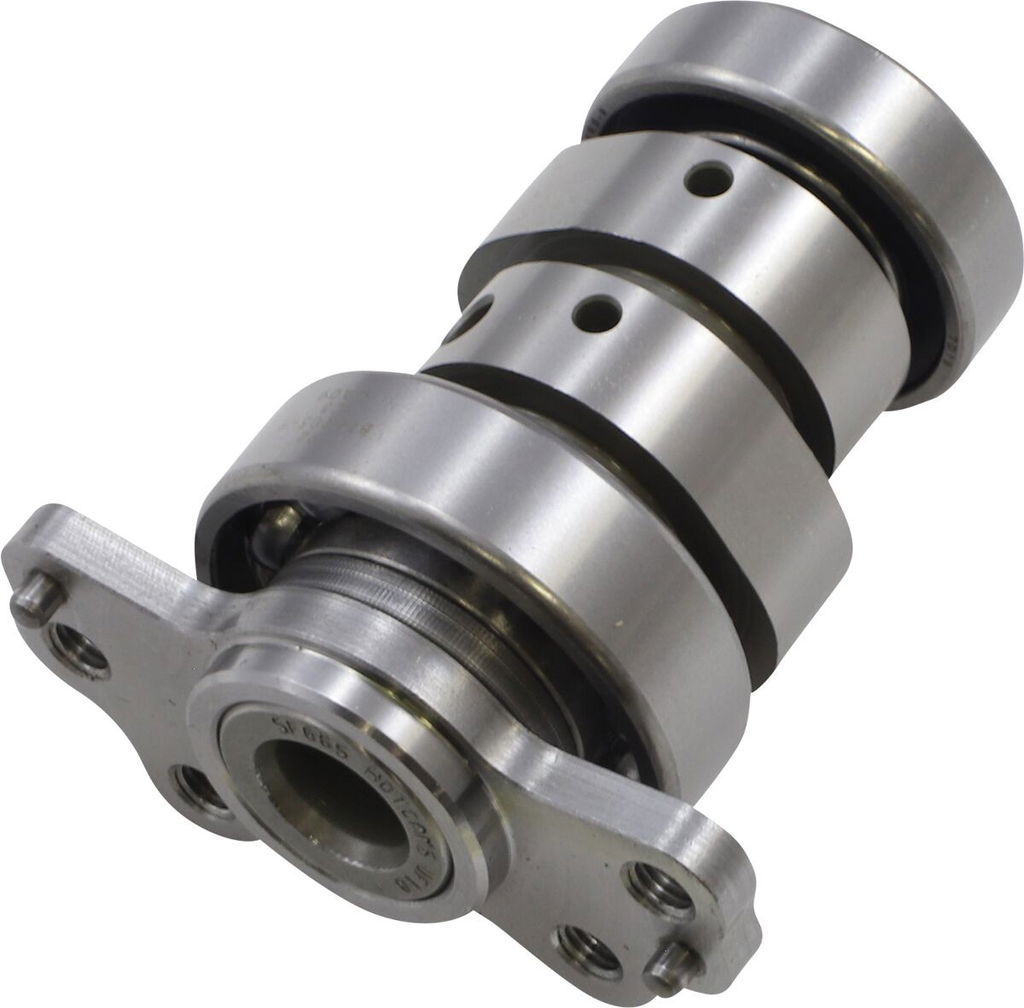

CAM RAPTOR 700 STG 2

Beskrivning av CAM RAPTOR 700 STG 2

Camshaft Stage 2

Computer Numerical Control (CNC) from 8620 billet steel and case harden

Designed and dyno proven in the USA

Engineered by using valvetrain software

Adds a 5%-10% power gain

Select cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end

Designed for mid to top end gains.

Engineered to be drop in cams that use stock valve springs (unless otherwise noted).

Top end and great over rev. Uses stock auto-decompression mechanism. Uses stock valve springs and rockers. For single cam engine. Intake Valve Lash: 0.100 mm. Exhaust Valve Lash: 0.180 mm.

Type	Stage 2
Brand	HOT CAMS
Units	Each
Application	Exhaust| Intake
Intake lift	10,30 mm
Exhaust lift	8,60 mm
Product name	Camshaft
Intake duration	260°
Exhaust duration	243°
Vendor part number	4065-2
Intake lobe centerline	111°
Exhaust lobe centerline	102,500°
