CAM ROLLER CONVER. 26N

Beskrivning av CAM ROLLER CONVER. 26N

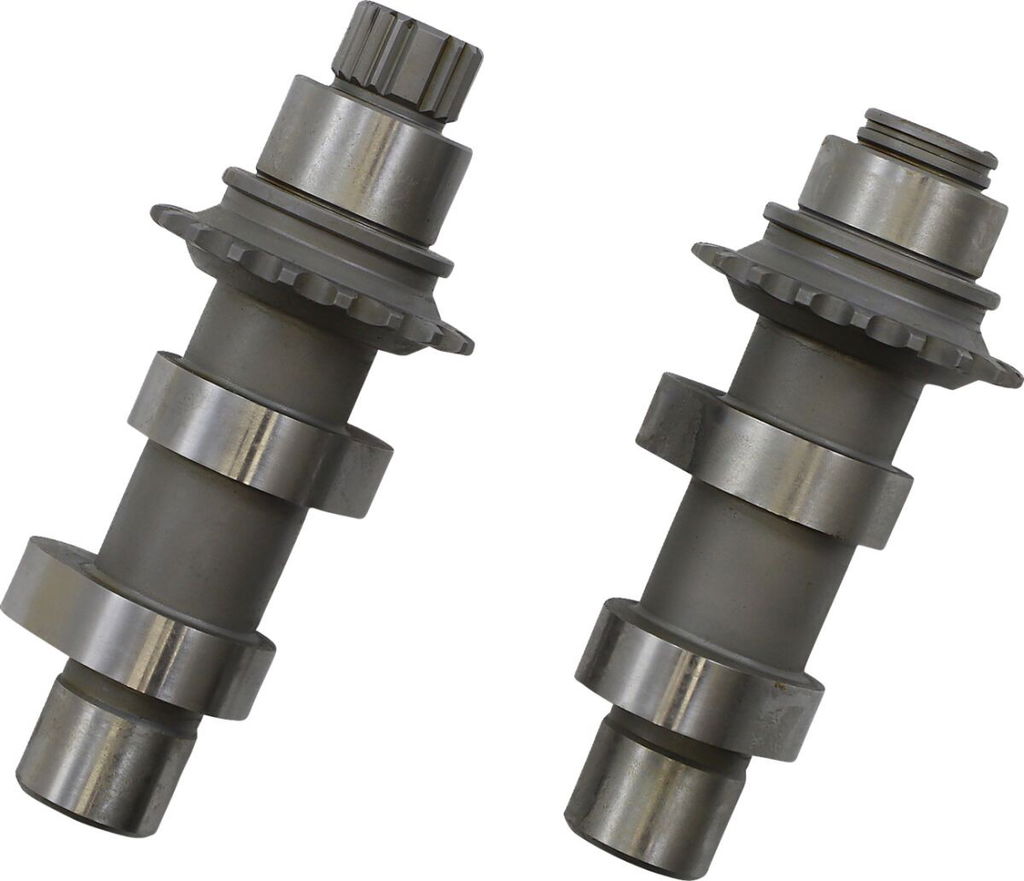

Conversion Chain Driven Cam

Upgrades '99–'06 Twin Cam (except '06 Dyna) to late-style roller chains and hydraulic tensioners

Engineered for use with stock lifters; requires '07-'17 cam plate, oil pump, sprockets, chains, and hydraulic adjusters (sold separately)

Performance output matches original Andrews profiles built for same-generation grinds

Made in the USA

'99-'06 Twin Cam motors (except '06 Dyna) cannot use standard '07-'17 cams due to journal size split. Standard late-model cams feature a 1.000" diameter, while earlier motors require the 0.875" outer bearing journal engineered into this "N" series.

'99-'01 model motors require Andrews rear cam sprocket . '02-'06 models must reuse the stock factory rear cam sprocket (OEM #25728-06).

Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.

Bolt-in cams for low rpm torque and two-up touring. Add more torque and horsepower at low and middle range of 1800 - 5200 rpm. Can be used with stock valve springs and tappets.

Type	Chain Conversion
Brand	ANDREWS
Grind	26 Series
Model	N Series
Units	Pair
Application	Exhaust| Intake
Intake lift	0,490"
Intake open	11°
Exhaust lift	0,490"
Exhaust open	44°
Intake close	37°
Product name	Cam Kit
Exhaust close	4°
Intake duration	226°
Exhaust duration	230°
Intake lift at tdc	0,138"
Vendor part number	216826
Exhaust lift at tdc	0,120"
Intake lobe centerline	102°
Exhaust lobe centerline	106°
