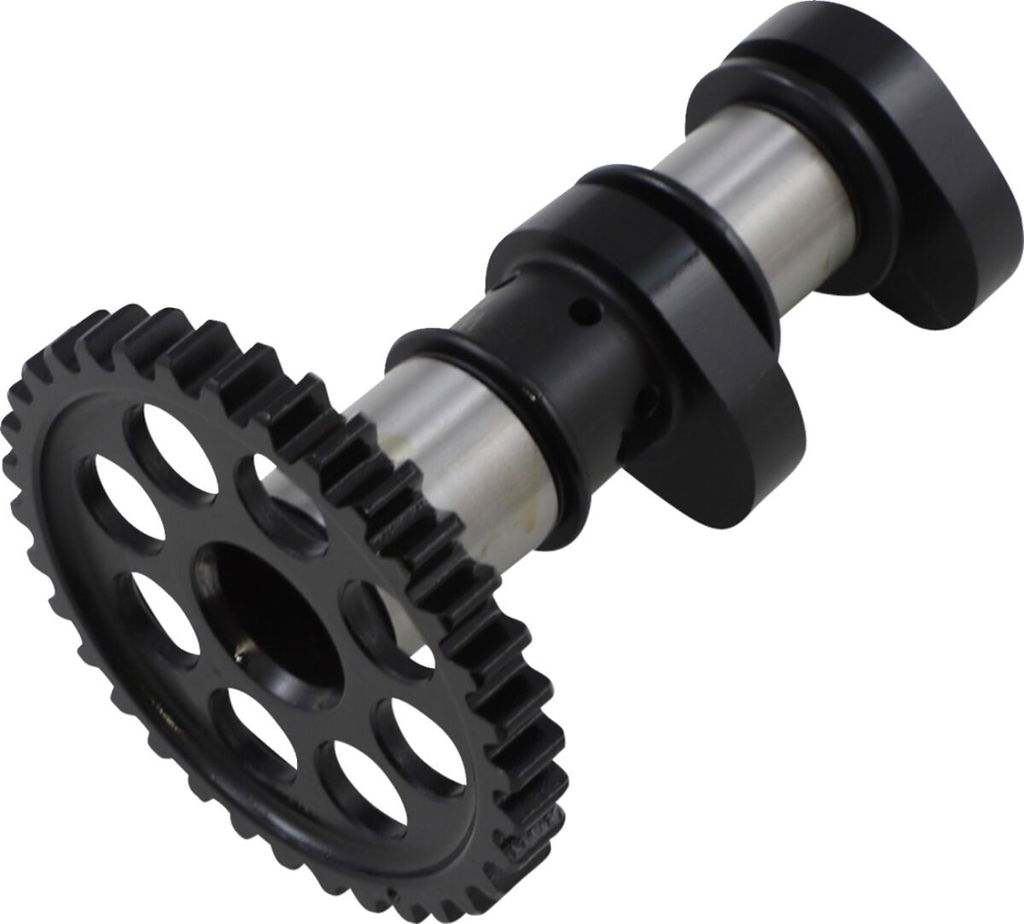

CAMSHAFT

Beskrivning av CAMSHAFT

Camshaft Intake Stage 1

Adds 5%-10% power gain

Designed and dyno proven in the USA

Engineered by utilizing state-of-the-art valvetrain software

CNC machined from 8620 billet, case hardened steel for an exact fit and lobe profile

Select cams feature Hot Cams Improved Throttle Design (ITR) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end

For low end torque.

Made to be drop-in cams that use stock valve springs (unless noted).

When used with 0925-1189 provides gains all the way to 11,000 rpm with slight loss 11,000 rpm to rev limit. Designed with I.T.R. technology. For dual cam engine. Intake Valve Lash: 0.125 mm.

Type	Stage 1
Brand	HOT CAMS
Units	Each
Application	Intake
Intake lift	10,860 mm
Product name	Camshaft
Intake duration	242°
Vendor part number	3306-1IN
Intake lobe centerline	102,800°
