CAMSHAFT

Beskrivning av CAMSHAFT

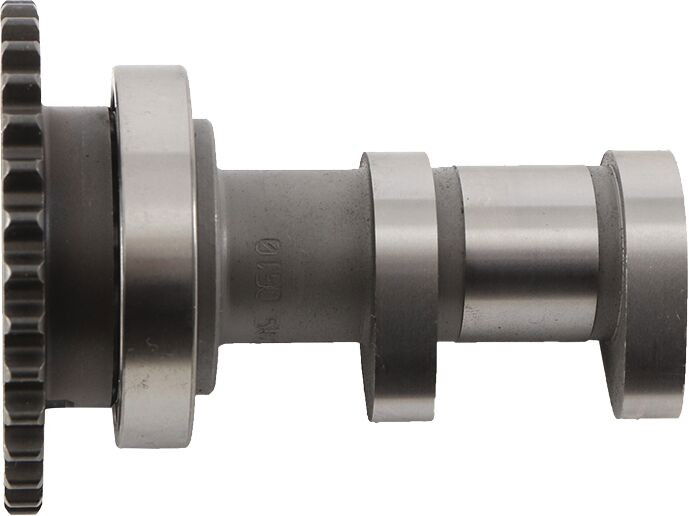

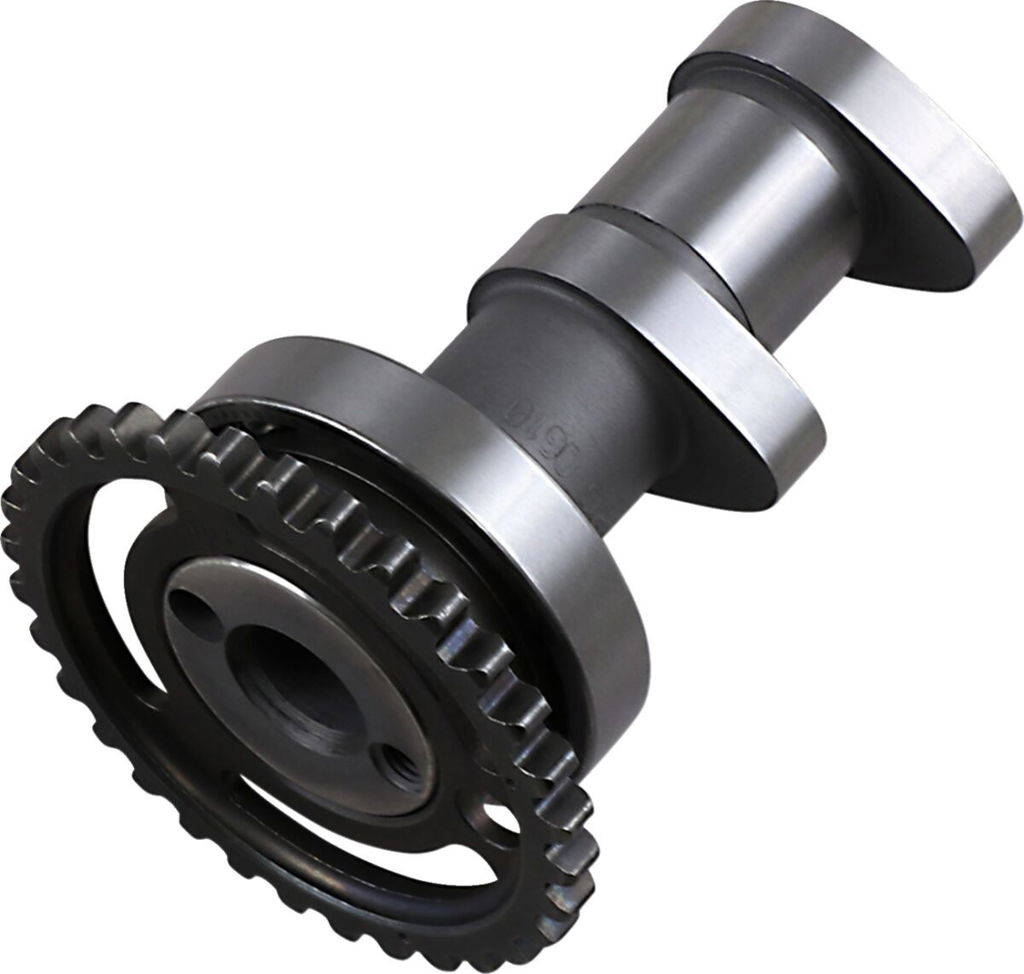

Camshaft Exhaust Stage 1

Stage 1 is designed for low end torque

Adds a 5%-10% power gain

Designed and dyno proven in the USA

Manufactured by utilizing state of the art valvetrain software

CNC machined from 8620 billet, case-hardened steel for an exact fit and lobe profile

Engineered to be drop-in cams, that use stock valve springs (unless otherwise noted).

Select cams feature Hot Cams Improved Throttle Design (ITR) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end.

For dual cam engine.

Low end to mid range increase with slight top end loss after 10,000 rpm. Designed with I.T.R. technology. Uses stock auto-decompression mechanism. Exhaust Valve Lash: 0.200 mm.

Type	Stage 1
Brand	HOT CAMS
Units	Each
Application	Exhaust
Exhaust lift	8,380 mm
Product name	Camshaft
Exhaust duration	239°
Vendor part number	2309-1E
Exhaust lobe centerline	103°
