KIT CAMSHAFT GEAR DRIVE 496C M
- SKU 09251630
- Lev. SKU: 330-0826
- EAN / GTIN 330-0826
- Fri Frakt vid köp över 1400 kr!
Beskrivning av KIT CAMSHAFT GEAR DRIVE 496C M

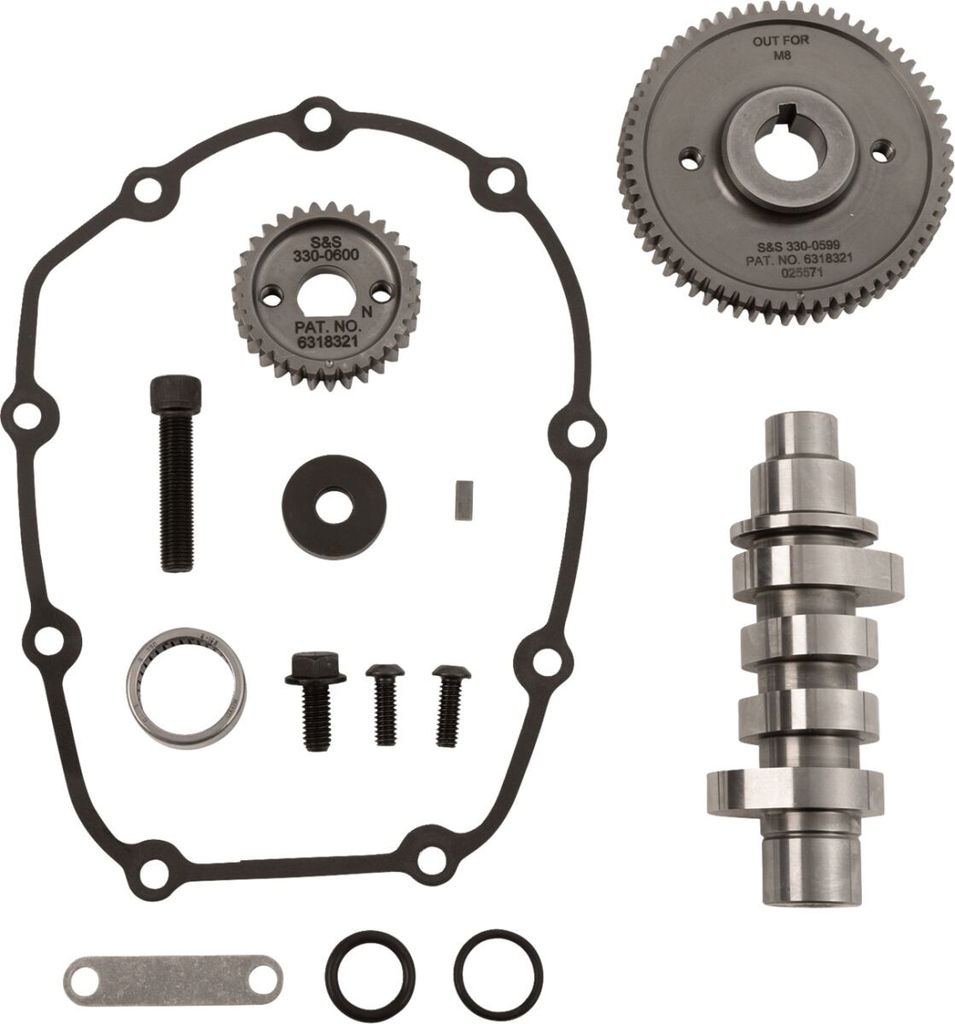

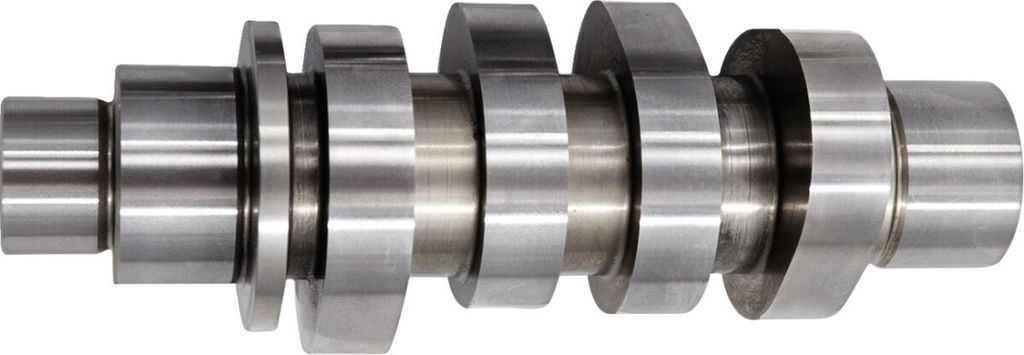

Camshaft KitBiggest bolt-in S&S camshaft for M8 Increased horsepower and torque Works on motors up to 11.0:1 compression Compatible with stock valve springs, both first generation (round port) and second generation (oval port) Includes camshaft, M8 cam cover gasket, Viton® o-rings, and instructions Made in the USA Head work not required. Not For VVT motors. Works with stock or S&S roller rocker arms and springs.
| Type | Gear Drive |
| Brand | S&S CYCLE |
| Grind | 496 Series |
| Units | Each |
| Application | Exhaust| Intake |
| Intake lift | 0,485" |
| Intake open | 7° |
| Exhaust lift | 0,485" |
| Exhaust open | 48° |
| Intake close | 40° |
| Product name | Camshaft |
| Riding style | Street |
| Exhaust close | 15° |
| Research value | Finalized |
| Intake duration | 227° |
| Exhaust duration | 243° |
| Intake lift at tdc | 0,072" |
| Vendor part number | 330-0826 |
| Exhaust lift at tdc | 0,097" |
| Intake lift imperial | 0.485" |
| Intake open imperial | 7° |
| Exhaust lift imperial | 0.485" |
| Exhaust open imperial | 48° |
| Intake close imperial | 40° |
| Exhaust close imperial | 15° |
| Intake duration imperial | 227° |
| Exhaust duration imperial | 243° |
| Intake lift at tdc imperial | 0.072" |
| Exhaust lift at tdc imperial | 0.097" |
