SPRING KT BH KTM450 13-18

Beskrivning av SPRING KT BH KTM450 13-18

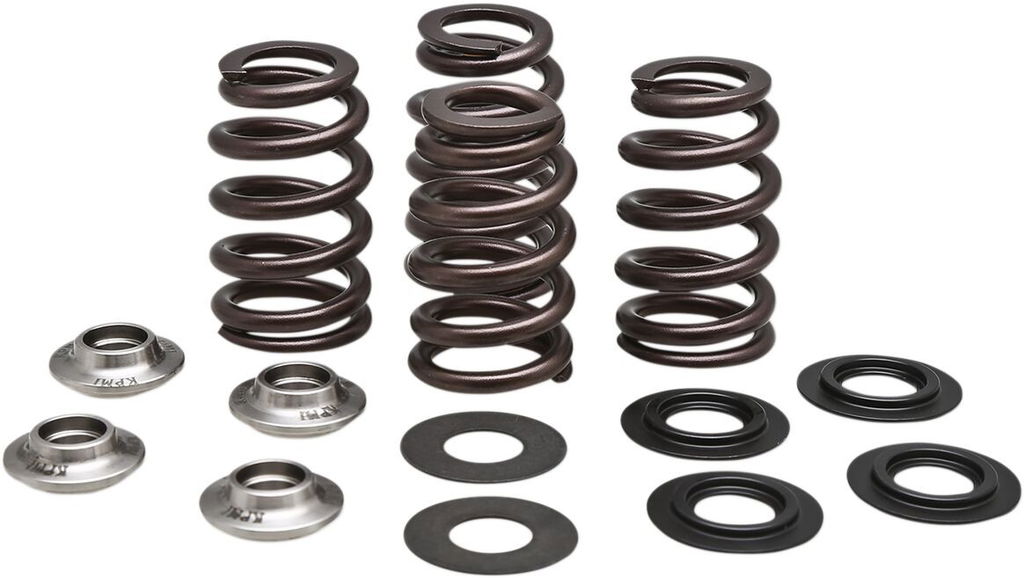

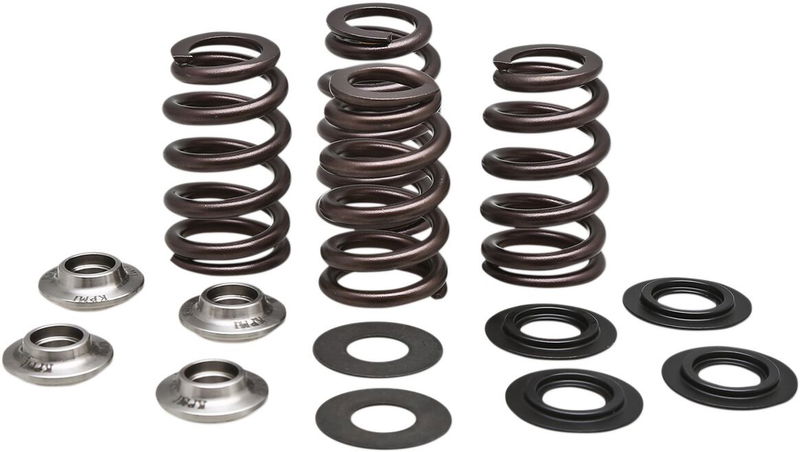

Beehive Spring Kit

By taking advantage of the latest development in valve spring wire chemistry and manufacturing techniques, By coupling these developments with strict KPMI® design protocols and employing multiple design simulation and FEA analysis software, we were we able to overcome the torsional stresses unique to ovate wire springs that previously limited their operating parameters. KPMI® Beehive Springs are progressively wound using Kobe Super-Clean chrome silicon based wire that is heat treated and shot peened. KPMI® uses its tightly toleranced, FEA designed hardened Titanium retainers in these applications to ensure correct assembly height and resist keeper pull through. The hardened steel basewashers included in these kits are designed to locate the spring and control lateral movement.

KPMI® has developed ovate wire Beehive style springs that will live and perform at a high level in Husqvarna® and KTM® applications.

Type	Valve
Brand	KIBBLEWHITE
Style	Ovate Wire Beehive
Units	Kit
Material	Steel| Titanium
Application	Exhaust| Intake
Spring lift	0,435"
Product name	Spring Kit
Collar material	Steel
Vendor part number	96-96500
Spring lift imperial	0.435"
Spring open pressure	205 lb
Spring seat pressure	80 Ib
