VALVE CONV KT YZ250F 2019
- SKU 09263177
- Lev. SKU: 80-82350
- EAN / GTIN 09263177
- Fri Frakt vid köp över 1000 kr!
Beskrivning av VALVE CONV KT YZ250F 2019
Intake Stainless Conversion Valve and Spring KitStainless steel conversion kit includes only what's needed to convert your head to the long-life stainless steel Black Diamond intake valves Extends the life of the valvetrain and intake components by as much as 4x over the OEM titanium parts Includes forged one-piece stainless steel intake valves, wound chrome-silicon heat-treated wire valve springs, ultra-light titanium retainers and hardened steel bases Components are created using Finite Element Analysis (F.E.A.) software, as well as proprietary camshaft analysis and spring design software Specifically designed and engineered for each application Made in the USA The Intake springs for this kit include a progressively wound outer spring, which should be installed with the tightly wound end seated on the H.T.(Heat Treated) Steel Basewashers.

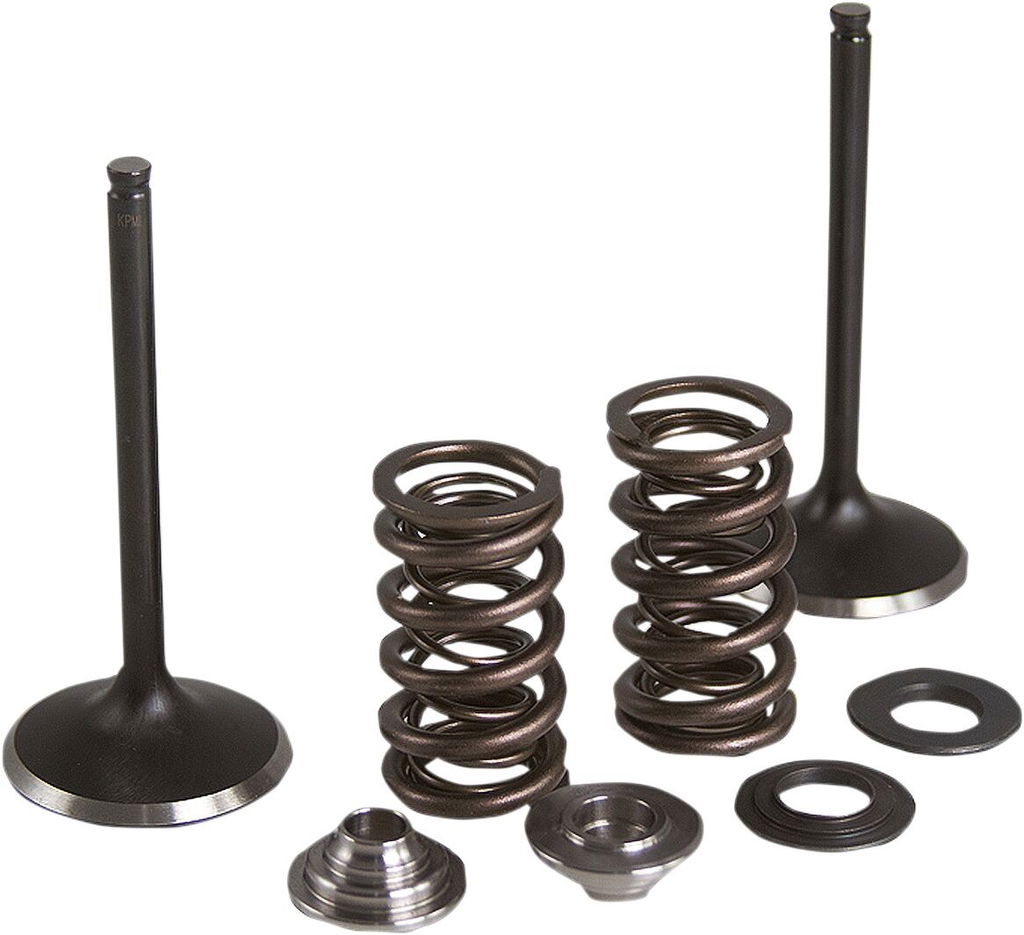

Kit Includes:
• 2x Intake Valves
• 2x Basewashers
• 2x Valve Springs
• 2x Titanium Retainers
| Type | Conversion |
| Brand | KIBBLEWHITE |
| Units | Kit |
| Length | 3,245" |
| Material | Black Diamond™ Stainless |
| Application | Intake |
| Spring lift | 0,420" |
| Tulip angle | 18° |
| Product name | Valve and Spring Kit |
| Head diameter | 1,220" |
| Stem diameter | 0,1962" |
| Collar material | Titanium |
| Length imperial | 3.245" |
| Valve seat height | 1,150" |
| Vendor part number | 80-82350 |
| Head diameter metric | 31.00 mm |
| Spring lift imperial | 0.420" |
| Spring open pressure | 151 lb |
| Spring seat pressure | 55 lb |
| Stem diameter metric | 5.00 mm |
| Tulip angle imperial | 18° |
| Head diameter imperial | 1.220" |
| Stem diameter imperial | 0.1962" |
| Valve seat height imperial | 1.150" |
