VALVE KIT COMP 70-83 SPT
- SKU 09263208
- Lev. SKU: 20-22350
- EAN / GTIN 0926-3208
- Fri Frakt vid köp över 1000 kr!
Beskrivning av VALVE KIT COMP 70-83 SPT

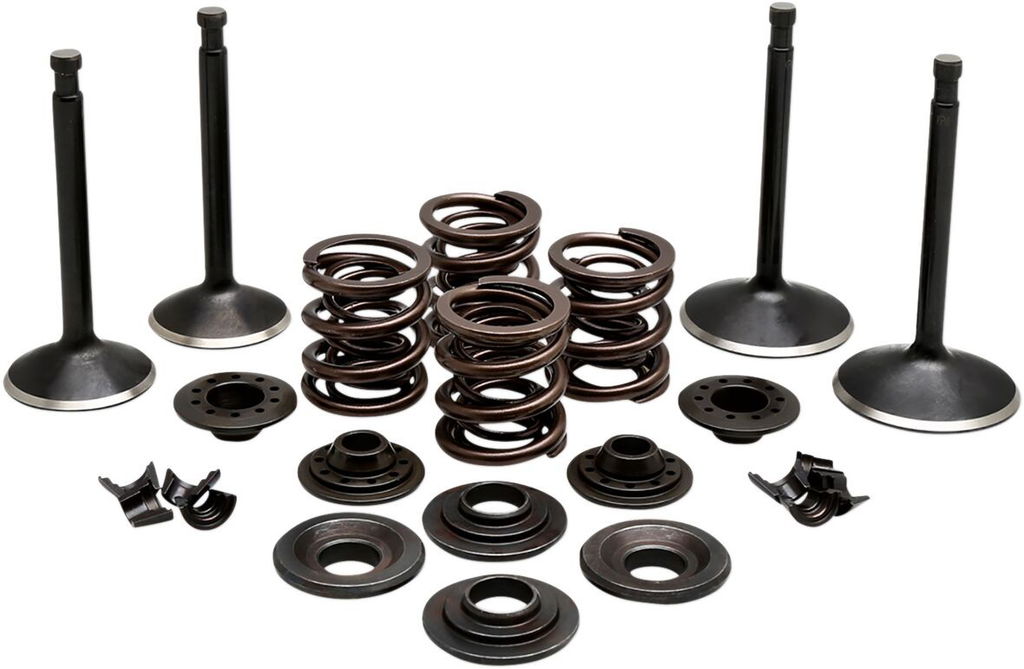

Engine Valve KitKits include KPMI® or equivalent valve spring kit, a full set of Black Diamond™stainless steel standard size valves and are black nitride coated, H.T. (Heat Treated) steel valve keepers and valve stem seals (where applicable) for engine applications listed Black Diamond™ valves are one piece forged stainless steel that are fortified by a special German process to improve wear properties and reduce friction White Diamond® valves are CNC machined from one-piece forging of either EV8 stainless steel or Inconel-751 and are hard chromed with 360° anode to produce a hard chrome finish Compatible with leaded and unleaded fuels Sold as complete kit for one engine Made in the USA Kit Includes:
• 2x Intake Valves
• 2x Exhaust Valves
• 4x Intake and Exhaust Retainers
• 4x Pairs of Intake and Exhaust Keepers
• 4x Intake and Exhaust Valve Springs
• 4x Intake and Exhaust Base Washers
| Brand | KIBBLEWHITE |
| Units | Kit |
| Length | Intake 3,620", Exhaust 3,512" |
| Material | Black Diamond™ Stainless |
| Application | Exhaust| Intake |
| Spring lift | 0,400" |
| Tulip angle | Intake 23°, Exhaust 29° |
| Product name | Engine Kit |
| Head diameter | Intake 1,935", Exhaust 1,570" |
| Stem diameter | Intake 0,3090", Exhaust 0,3384" |
| Collar material | H.T. Steel |
| Length imperial | Intake 3.620", Exhaust 3.512" |
| Valve seat height | 1,245" |
| Vendor part number | 20-22350 |
| Head diameter metric | Intake 49.15 mm, Exhaust 39.88 mm |
| Spring lift imperial | 0.400" |
| Spring open pressure | 330 lb |
| Spring seat pressure | 95 lb |
| Stem diameter metric | Intake 7.85 mm, Exhaust 8.60 mm |
| Tulip angle imperial | Intake 23°, Exhaust 29° |
| Head diameter imperial | Intake 1.935", Exhaust 1.570" |
| Stem diameter imperial | Intake 0.3090", Exhaust 0.3384" |
| Valve seat height imperial | 1.245" |
