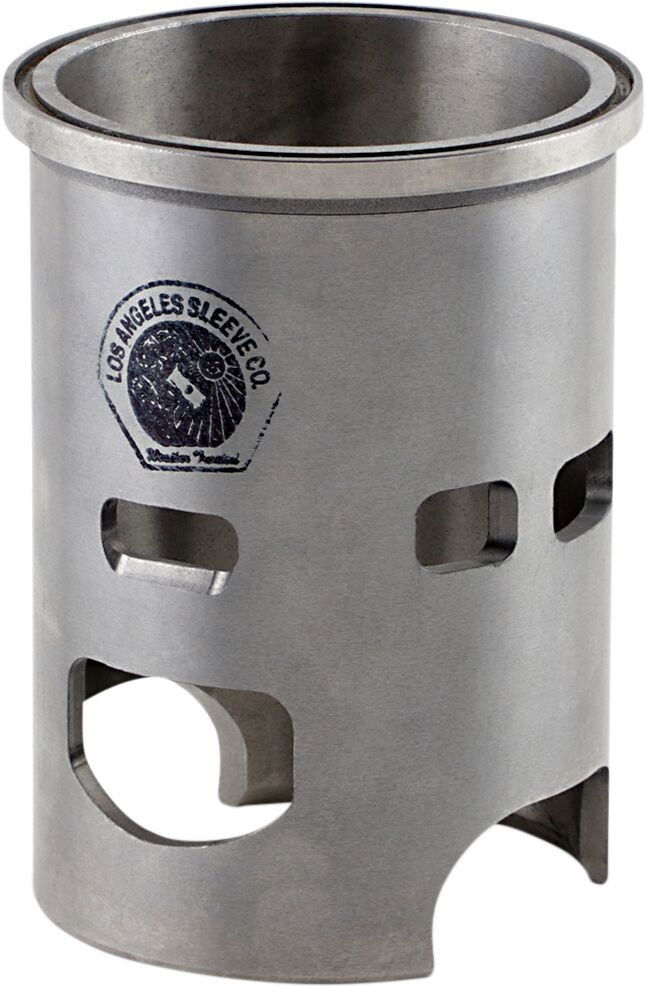

SLEEVE S/D 550 FAN
- SKU 09310309
- Lev. SKU: FL1275
- EAN / GTIN FL1275
- Fri Frakt vid köp över 1400 kr!
Beskrivning av SLEEVE S/D 550 FAN
Cylinder Sleeve For 2-Stroke Engineered specifically for 2-Stroke high-RPM powersports applications Scavenging, transfer, and exhaust ports come factory pre-profiled to preserve exact original manufacturer timing parameters Centrifugally spun-cast Chrome-Moly Alloy (200 Brinell hardness) for superior heat dissipation and ring wear life Supplied semi-finished; must be finish-bored and honed after installation to match the exact clearance specifications of the replacement piston Inside diameter must be bored and honed to size piston after installation. Type RS (Replacement Sleeve): Factory block features a removable liner layout. Requires uniform thermal heating of the aluminum cylinder casting to drop the old sleeve out and slide the new one in.
For fan cooled engine.
Sleeve Distinction: O-Ring groove in top of flange.
| Type | RS |
| Brand | LA SLEEVE |
| Units | Each |
| Material | Chrome-Moly Alloy |
| Bore size | 76,00 mm |
| Engine type | 2-Stroke |
| Displacement | 553 cc |
| Product name | Cylinder Sleeve |
| Riding style | Snow |
| Research value | Finalized |
| Bore size metric | 76.00 mm |
| Vendor part number | FL1275 |
