CYLINDRKIT 136STCK BLT 4.84 4.

Beskrivning av CYLINDRKIT 136STCK BLT 4.84 4.

136" Big Bore Kit

The 136" displacement is a combination of 4.320" big bore cylinders and an S&S 4-5/8" (4.625") stroker flywheel (sold separately)

Maintains original factory engine height to ensure stock frame and exhaust clearance

Retains original engine serial numbers

Direct bolt-on for 114" and 117" with stock flywheel to make 132" high-compression displacement, to get 136" displacement will require an upgrade to the S&S 4.625" stroker flywheel.

107" engine requires S&S 4.625" stroker flywheel assembly in order to achieve 136" displacement.

Does not fit models equipped with Variable Valve Timing (VVT).

Not compatible with H-D 4-5/8" stroke flywheel.

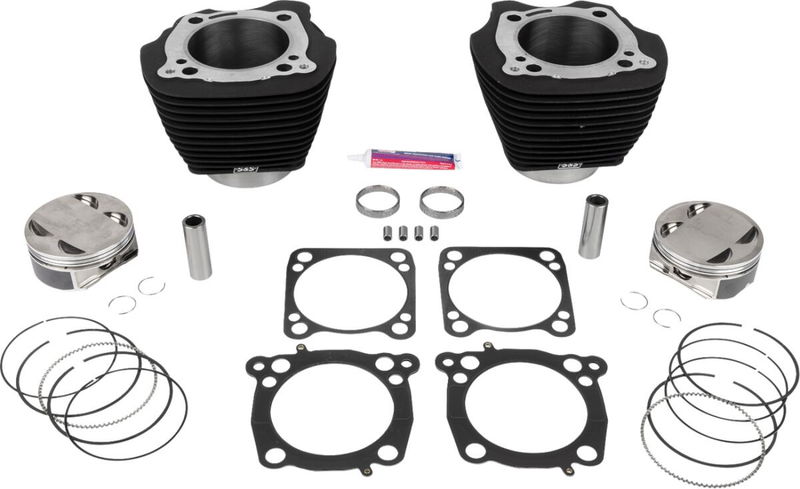

Includes: • 2x Cylinders with Ductile Iron Liners • 2x Forged Piston Kits • 2x Multi-Layer Steel (MLS) Head Gaskets • 2x Base Gaskets and Cylinder O-Rings • 1x S&S Cycle 136" Cam Cover Badge

Type	Big Bore
Brand	S&S CYCLE
Units	Kit
Bore size	4,320"
Base finish	Powder-Coated
Color/finish	Non-Highlighted Fins| Powder-Coated| Wrinkle Black
Displacement	136"
Product name	Cylinder Kit
Riding style	Street
Stroke length	4,625"
Research value	Finalized
Compression ratio	11,0:1
Bore size imperial	4.320"
Vendor part number	910-0849A
Cylinder bore coating	Ductile Liner
Stroke length imperial	4.625"
Compression ratio imperial	11.0:1
