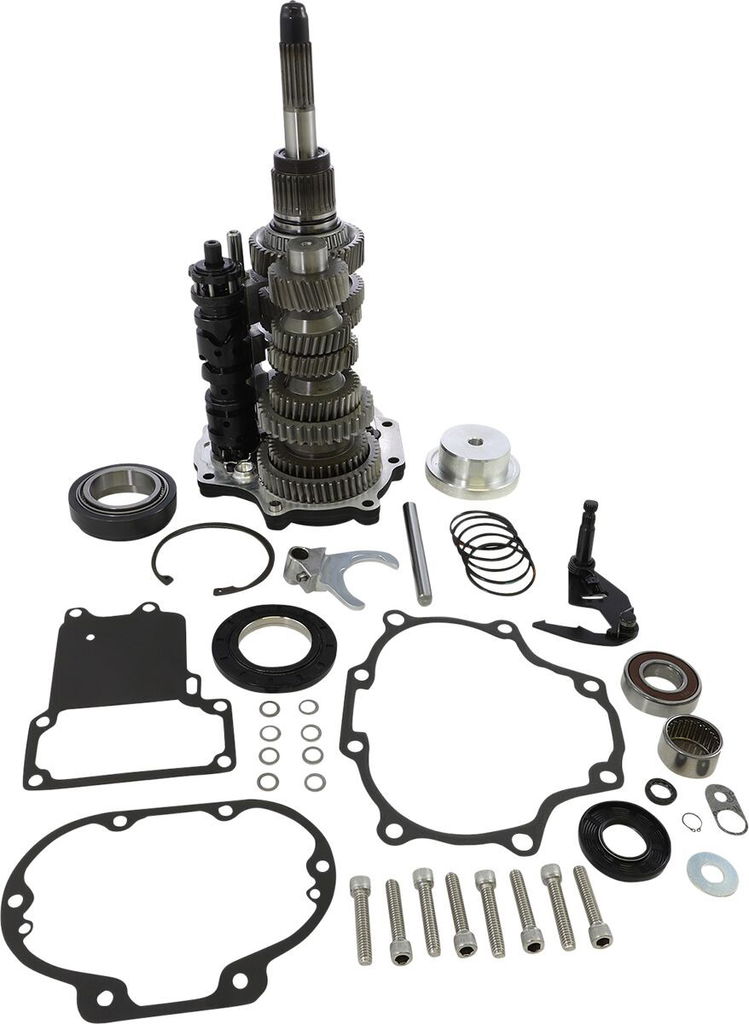

DD7 BUILDER´S KIT 06-17 DYNA 0

Beskrivning av DD7 BUILDER´S KIT 06-17 DYNA 0

7-Speed Transmission Gear Set

Direct replacement of the Cruise Drive Harley-Davidson factory 6-speed

The 7th gear enables the motorcycle to make full use, by the way of gear ratio management, of the torque and power put out by the 96 ci, 103 ci and 110 ci motors

Unlike the stock mainshaft which includes 1st through 4th gears, the DD7 is lightweight and only includes the small 1st gear, minimizing the shift clunk

Features a shortened 1st gear and tightened all other gears for a smooth and powerful riding experience with continuous acceleration from 1st to 4th gear

Shift smoothness is achieved by use of a new linear roller ball detent which is part of the supplied billet top cover

Comes ready to slide in the bike, no case modifications, shimming of the gear set or adjustments required

7th main drive gear, main drive gear bearing, main drive seal are all included to replace 6th main

Includes new main drive gear bearing and seal, polished door, door gasket, side cover gasket, top cover gasket and self-adhesive DD7 side cover emblem

Bearing door is manufacturered from 6061-T6 Aluminum and features wider bearings and a bearing retainer plates instead of the stock style snap rings

ARP 12 point bolts for door, top cover, stock side cover; Baker re-cal box and leads are all included

DD7 door bearings are 28% wider than stock

Utilizes F6F door bearing retainer plate

Reuses stock shifter pawl

Made in the USA

Brand	BAKER DRIVETRAIN
Model	DD7
Units	Kit
Product name	Gear Set
Fifth gear ratio	1.27:1
First gear ratio	3.76:1
Sixth gear ratio	1.10:1
Third gear ratio	2.06:1
Fourth gear ratio	1.55:1
Second gear ratio	2.75:1
Transmission type	7 Speed
Seventh gear ratio	1.00:1
Vendor part number	DD7-37603
