BELT DRIVE 38MM90-60DYNA

Beskrivning av BELT DRIVE 38MM90-60DYNA

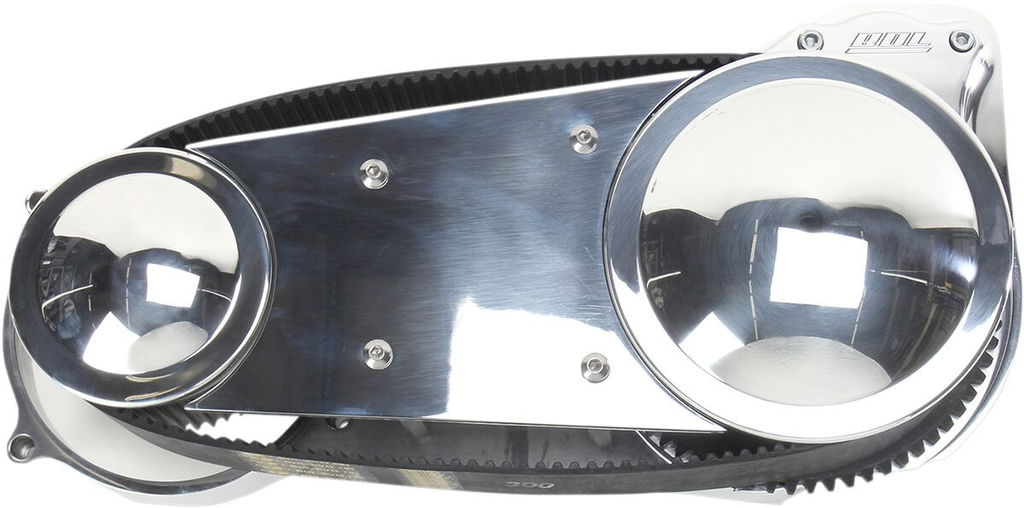

3" Electric Start 8 mm Belt Drive with Lockup Clutch

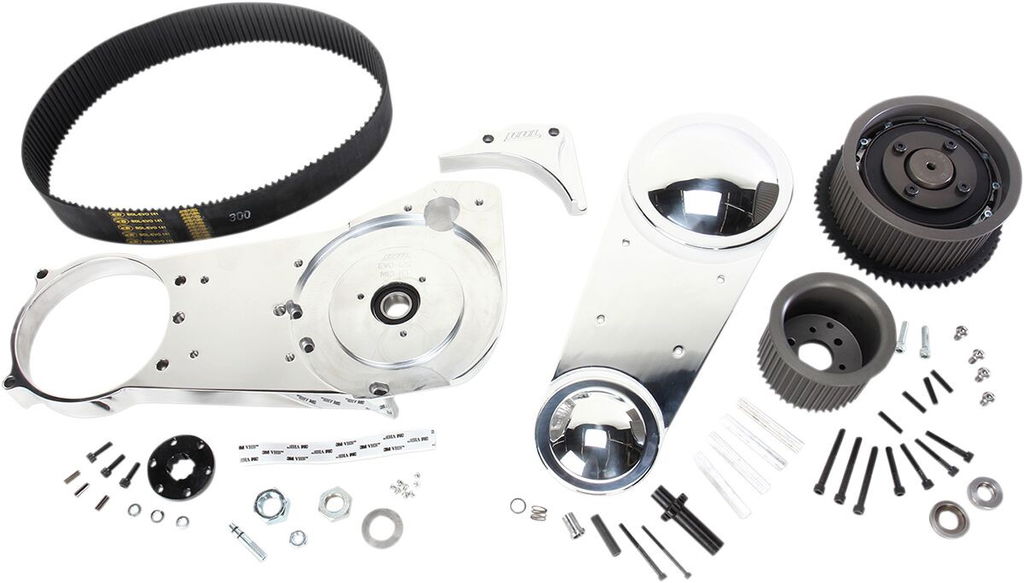

3" electric start 8 mm kit includes front pulley, belt, clutch hub and clutch basket and aramid clutch set (consists of two half plates, four full plates and five steel drive plates), 6061-T6 billet motor plate, outside guard and polished pulley cover

Rear pulley has a 40 mm, double-row bearing with an inner stress-proof steel clutch hub to support the clutch

Lockup design applies extra pressure to the clutch plates for positive engagement with no clutch slippage

Comes with the Quiet Clutch and ball-bearing lockup design pressure plate

No increase in lever pull effort

Direct bolt-in applications

Made in the USA

3" systems are not designed for use with floorboards.

Not for use with offset primaries.

Replacement components available separately.

Brand	BELT DRIVES LTD.
Units	Each
Width	76,2 mm (3")
Material	6061 T-6 Billet Aluminum| Kevlar| Steel
Product name	Belt Drive Kit
Vendor part number	EVOB-122S
