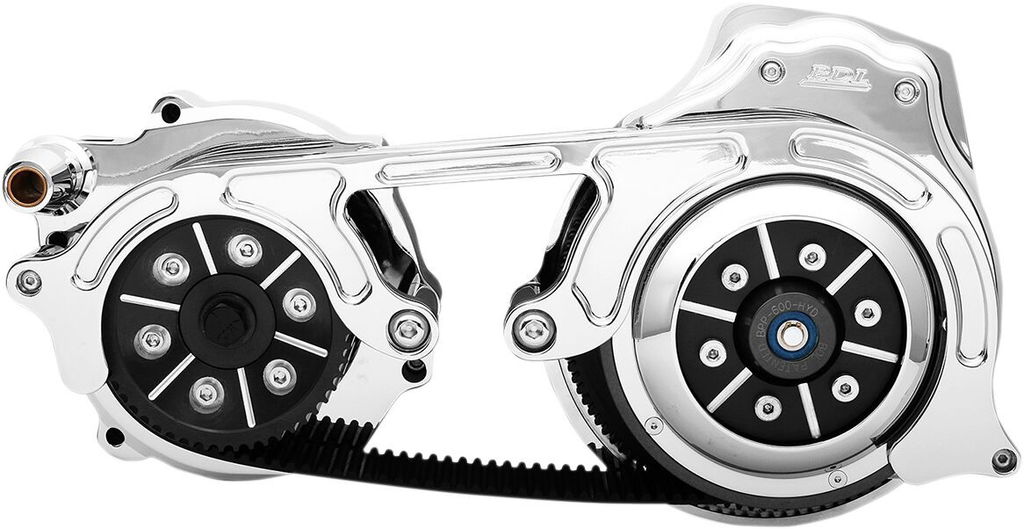

BELT DRIVE 2CH 2PC M8 FL

Beskrivning av BELT DRIVE 2CH 2PC M8 FL

2" Open Belt Drive Kit with 2-Piece Motor Plate

Springs and spring collar are enhanced for more positive lock-up engagement, great for big-inch/high-horsepower motors

Belt profiles are unique to each kit, requiring matched pulleys for each belt; pulleys may not be interchanged

Diaphragm clutch is a 6-bolt configuration for a more firm feel and improved appearance

Front pulley face and spring collar have a matching pattern to the rear pulley

Kit includes side and top guard for an aggressive, open dome look

Front pulley cover is counter-bored for a super-clean appearance

Features a two-piece motor plate design and 2" primary belt

52/69 pulley combination for a 1.32:1 final drive ratio

Ball-bearing pressure plate

Made in the USA

Size	51,8 mm (2")
Brand	BELT DRIVES LTD.
Units	Kit
Width	50,8 mm (2")
Material	Aluminum
Tooth count	52| 69
Color/finish	Chrome
Product name	Belt Drive Kit
Vendor part number	EV2PH-B17-C
