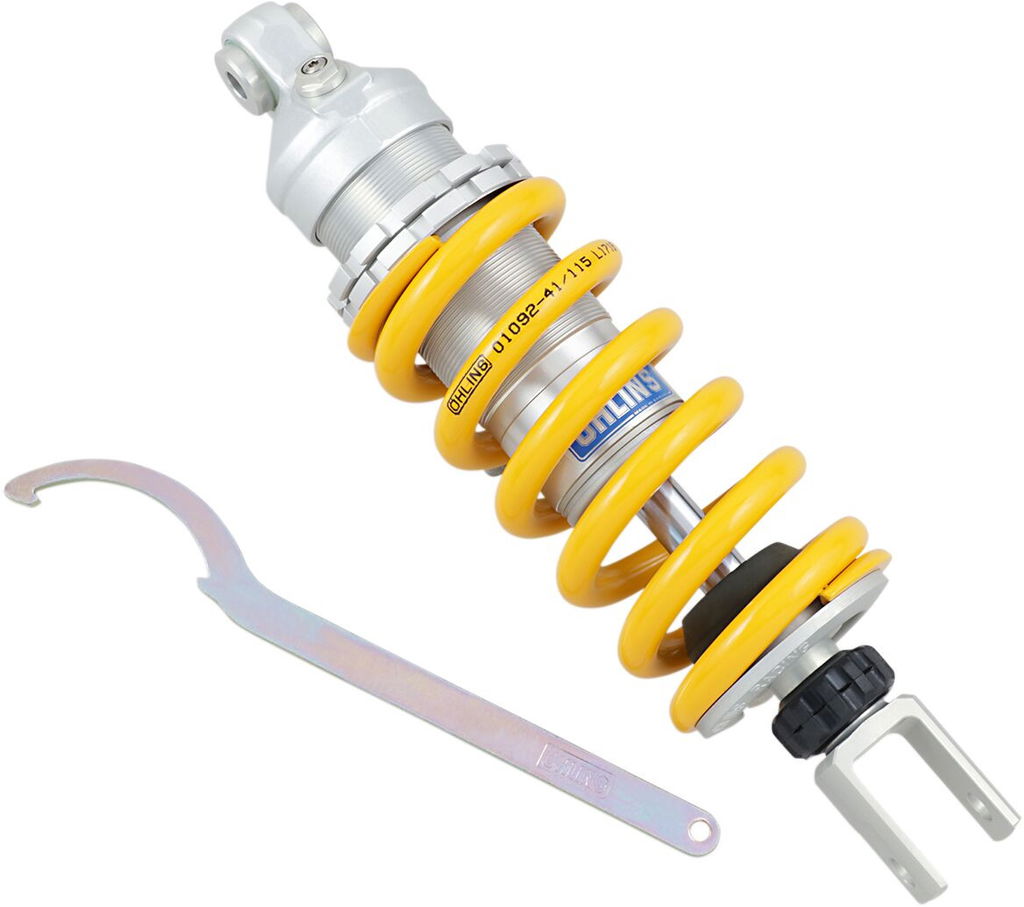

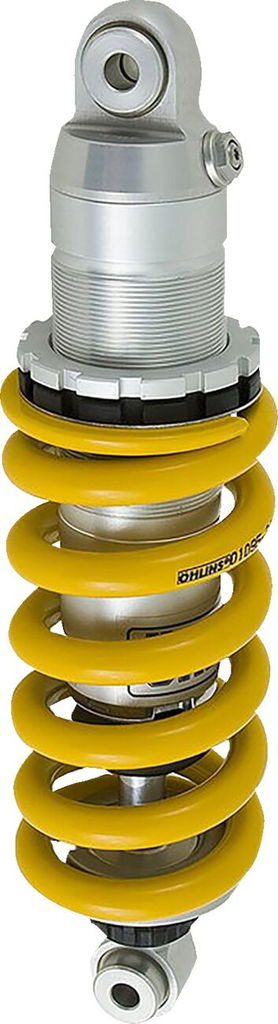

SHOCK YAMAHA MT-07/XSR 700 S46

Beskrivning av SHOCK YAMAHA MT-07/XSR 700 S46

Street/Roadracing Shock Absorber

All Öhlins shock absorbers are developed from the knowledge and experience of top factory race teams around the world

Superior construction, superior materials and superior engineering skills give you the best-quality shock on the market

Shock body is precision-drawn steel with aluminum shock reservoir; race shocks feature lightweight, high-strength aluminum shock bodies

Stainless steel braided PTFE hose used with all remote reservoir shocks

Springs are chrome silicone

All aspects of basic shock setup and performance are thoroughly tested to ensure that each shock absorber performs flawlessly

Öhlins shock absorbers are 100% rebuildable so you get lasting quality - you can readjust, reshim and overhaul the shock absorber for years of peak performance

Fitted Spring: 01092-41 (Y).

Type	Coilover Monotube
Brand	OHLINS
Model	STX
Units	Each
Material	Aluminum| Steel
Bore size	46,00 mm (1,81")
Color/finish	Chrome| Yellow
Product name	Shock Absorber
Riding style	Street
Damping method	Hydraulic
Research value	Finalized
Adjustment type	Adjustable Rebound Damping| Adjustable Spring Preload
Extended length	312,00 mm (12,29")
Bore size metric	46.00 mm
Mounting position	Front| Rear
Bore size imperial	1.81"
Linear spring rate	11,72 kg/mm (657,00 lb/in)
Reservoir location	Internal
Vendor part number	YA 419
Extended length metric	312.00 mm
Extended length imperial	12.29"
Linear spring rate metric	11.72 kg/mm
Linear spring rate imperial	657.00 lb/in
