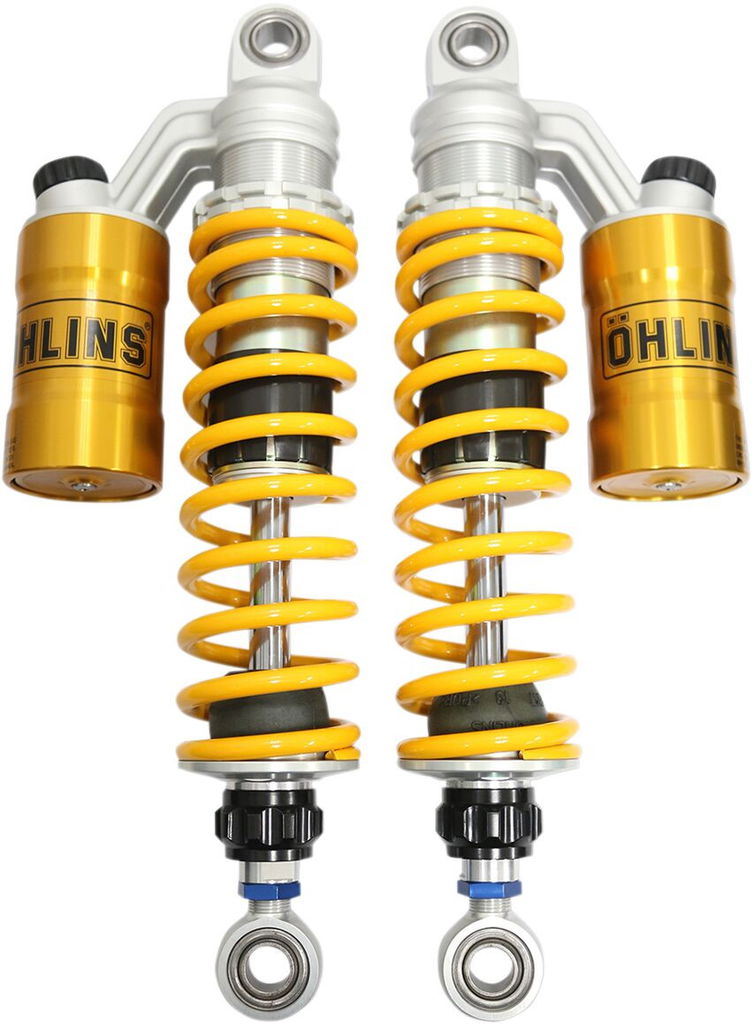

SHOCKS HONDA MSZ 125 (MONKEY)
- SKU 13101868
- Lev. SKU: HO 819
- EAN / GTIN HO 819
- Fri Frakt vid köp över 1400 kr!
Beskrivning av SHOCKS HONDA MSZ 125 (MONKEY)
STX Piggyback S36 Mini ShockAdjustable Rebound and Compression damping Monotube Shock with External Piggyback Reservoir High Pressure Nitrogen Gas Charged STX Single Tube design 36 mm Piston Diameter Adjustable Preload w/ tool Top Level Comfort, Rideability and Performance Hard Anodized - Precision CNC-Machined Components Low-friction Shaft / Seal Head design Fully Serviceable and Repairable For Honda Grom rider over 80 kg/176 lb (If under 80kg/176 lb see HO 424).
| Type | Coilover Monotube |
| Brand | OHLINS |
| Model | STX |
| Units | Pair |
| Material | Steel |
| Bore size | 36,00 mm (1,42") |
| Color/finish | Chrome| Yellow |
| Product name | Shock Absorber |
| Riding style | Street |
| Damping method | Gas Charged |
| Research value | Finalized |
| Adjustment type | Adjustable Compression Damping| Adjustable Length| Adjustable Rebound Damping |
| Extended length | 334,00 mm (13,15") |
| Bore size metric | 36.00 mm |
| Mounting position | Rear |
| Bore size imperial | 1.42" |
| Reservoir location | Piggyback |
| Vendor part number | HO 819 |
| Extended length metric | 334.00 mm |
| Progressive spring rate | 1,22 kg/mm - 1,94 kg/mm (68,54 lb/in - 108,52 lb/in) |
| Extended length imperial | 13.15" |
| Progressive spring rate metric | 1.22 kg/mm - 1.94 kg/mm |
| Progressive spring rate imperial | 68.54 lb/in - 108.52 lb/in |
JMX Engineering frågade
för 6 månader sedan
Hur långa är dessa mellan fästhålen
Butiken svarade
Hej,
Dem anger en längd på 334mm men det är oklart om det är cc mått på infästning eller total längd.
file:///C:/Users/Dan/Downloads/Ohlins_Europe_einbauanleitung-oehlins-motorrad-ho-819.pdf
MVH Dan
