SHOCK TRIUMPH DAYTONA 675/R/MO

Beskrivning av SHOCK TRIUMPH DAYTONA 675/R/MO

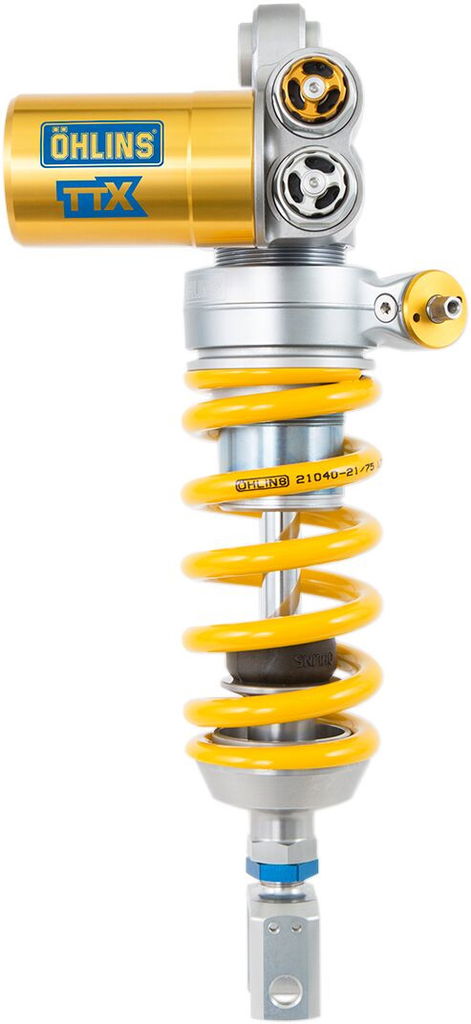

TTX GP Shock Absorber

The newest version of Öhlins championship-winning twin-tube shock technology

Features new needle profiles for compression and rebound adjusters

Updated design results in improved oil flow guidance and volume control for more precise, consistent damping and better fine-tuning

Available range of preload and compression adjustment is wider

Rebound and compression are completely separated within the shock with no risk of cavitation

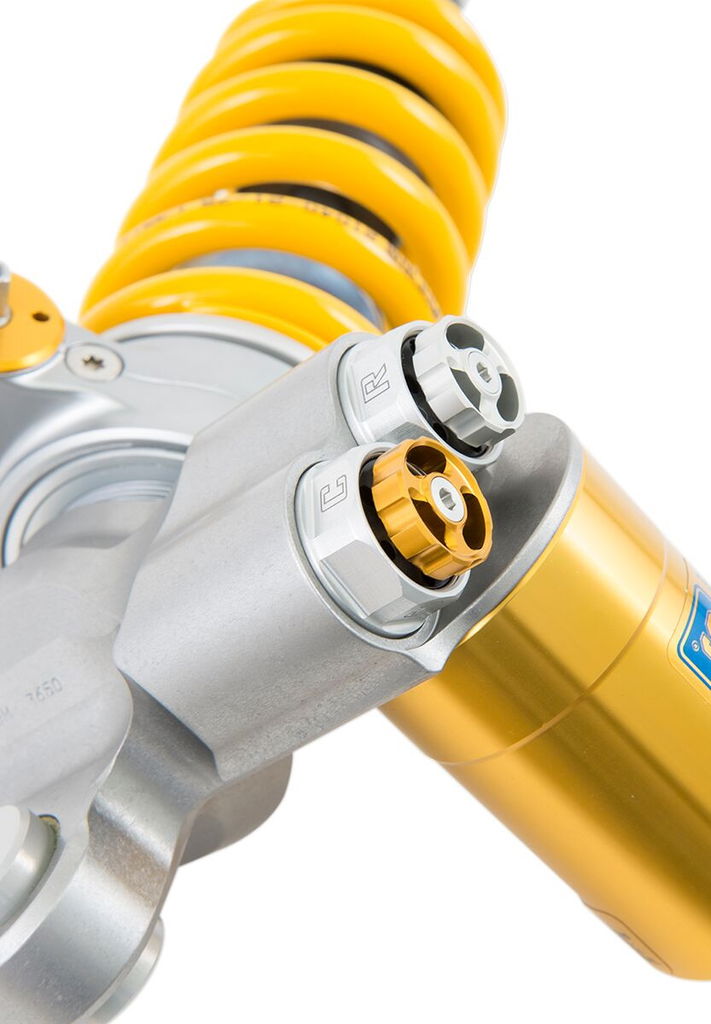

Completely separate compression and rebound settings

36 mm shock primary piston has been re-designed for improved performance for better traction and feel on the motorcycle

Industry standard of minimized shock-to-shock variance

Result is improved chassis feedback for superior rider feel and enhanced control

Type	Coilover Twin-Tube
Brand	OHLINS
Model	TTX GP
Units	Each
Material	Steel
Bore size	36,00 mm (1,42")
Color/finish	Chrome| Yellow
Product name	Shock Absorber
Damping method	Gas Charged
Adjustment type	Adjustable Compression Damping| Adjustable Length| Adjustable Rebound Damping| Adjustable Spring Preload
Extended length	295,50 mm (11,63")
Mounting position	Rear
Linear spring rate	10,20 kg/mm (571,18 lb/in)
Reservoir location	Piggyback
Vendor part number	TR 469
