SHOCK DUCATI PANIGALE V4 S/R/S

Beskrivning av SHOCK DUCATI PANIGALE V4 S/R/S

TTX GP Shock Absorber

Öhlins twin-tube shock technology

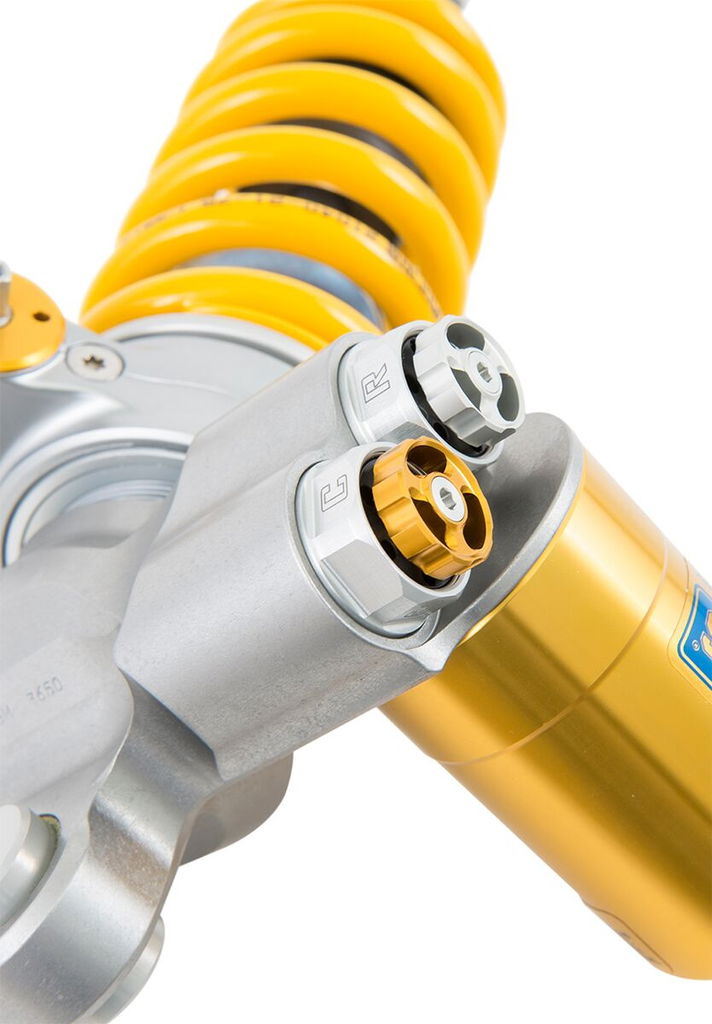

Features needle profiles for compression and rebound adjusters

Updated design results in improved oil flow guidance and volume control for more precise, consistent damping and better fine-tuning

Available range of preload and compression adjustment is wider

Rebound and compression are completely separated within the shock with no risk of cavitation

Completely separate compression and rebound settings

36 mm shock primary piston redesigned for improved performance for better traction and feel

Industry standard of minimized shock-to-shock variance

Improved chassis feedback for superior rider feel and enhanced control

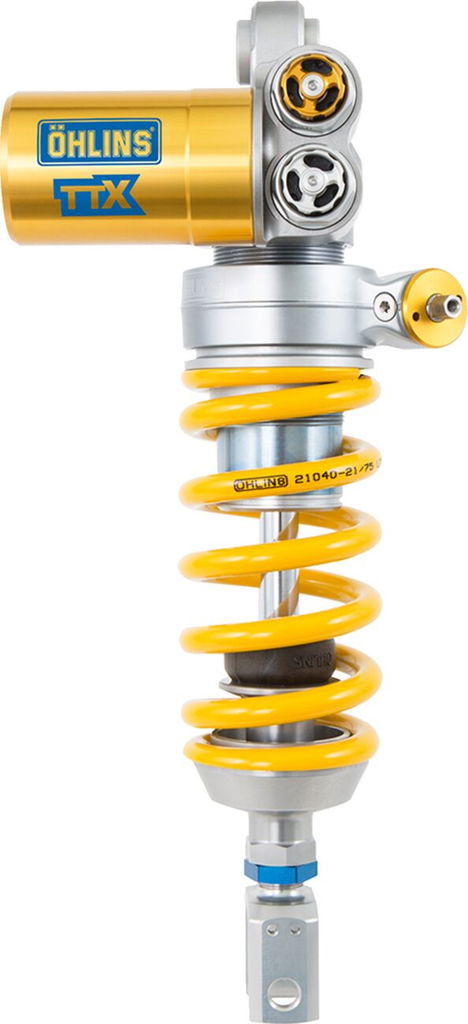

Fitted spring: 21040-31 (Y).

Type	Coilover Twin-Tube
Brand	OHLINS
Model	TTX GP
Units	Each
Bore size	36,00 mm (1,42")
Color/finish	Silver| Yellow
Product name	Shock Absorber
Damping method	Compression

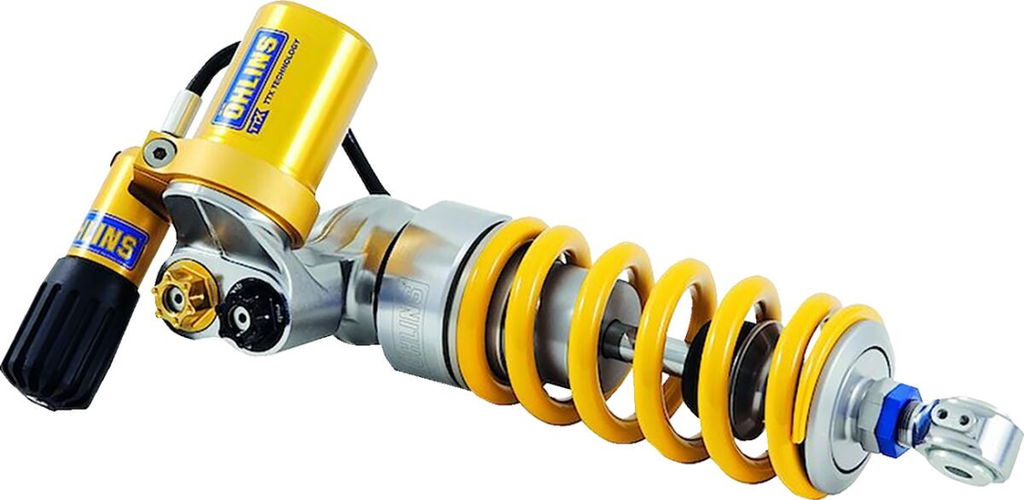

Adjustment type	Adjustable Compression Damping| Adjustable Length| Adjustable Rebound Damping| Adjustable Spring Preload| Hose Mounted Hydraulic Spring Preload Aduster
Extended length	310,00 mm (12,21")
Mounting position	Rear
Linear spring rate	95,00 n/mm (542,46 lb/in)
Reservoir location	Piggyback
Vendor part number	DU 468
