SHOCK HONDA MSZ 125 (MONKEY) S

Beskrivning av SHOCK HONDA MSZ 125 (MONKEY) S

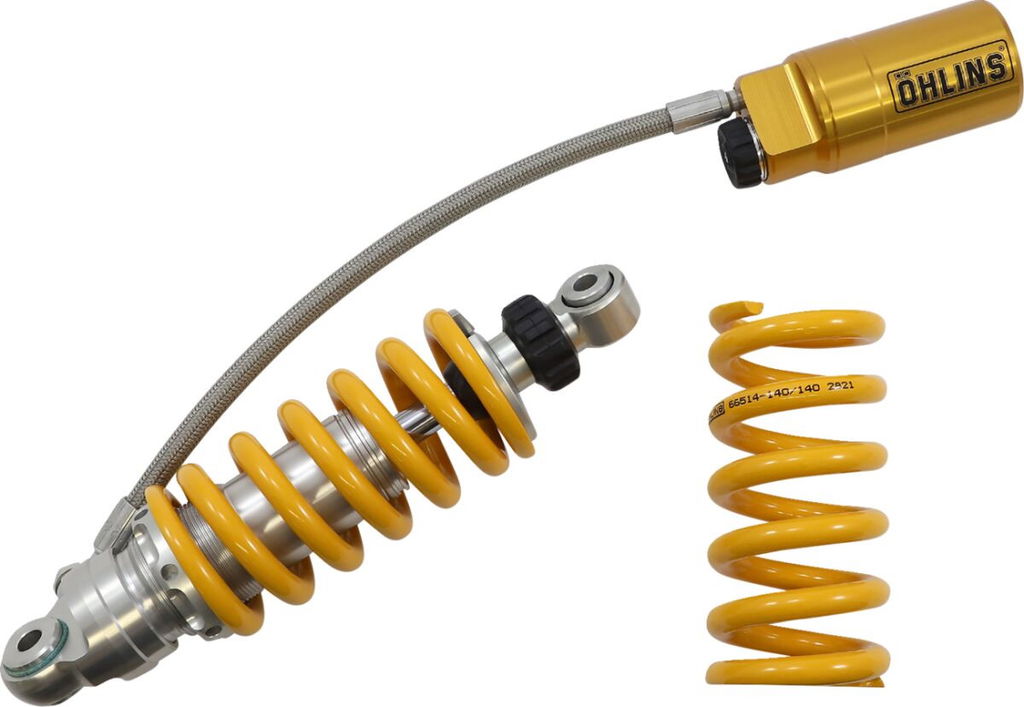

STX Piggyback S36 Mini Shock

Adjustable Rebound and Compression damping

Monotube Shock with External Piggyback Reservoir

High Pressure Nitrogen Gas Charged

STX Single Tube design

36 mm Piston Diameter

Adjustable Preload w/ tool

Top Level Comfort, Rideability and Performance

Hard Anodized - Precision CNC-Machined Components

Low-friction Shaft / Seal Head design

Fully Serviceable and Repairable

For Honda Grom rider over 80 kg/176 lb (If under 80kg/176 lb see HO 424).

Type	Coilover Monotube
Brand	OHLINS
Model	STX
Units	Each
Material	Steel
Bore size	36,00 mm (1,42")
Color/finish	Chrome| Yellow
Product name	Shock Absorber
Riding style	Street
Damping method	Gas Charged
Research value	Finalized
Adjustment type	Adjustable Compression Damping| Adjustable Rebound Damping
Extended length	244,00 mm (9,61")
Bore size metric	36.00 mm
Mounting position	Rear
Bore size imperial	1.42"
Linear spring rate	2,15 kg/mm (120,00 lb/in)
Reservoir location	Mounted External Reservoir
Vendor part number	HO 047
Extended length metric	244.00 mm
Extended length imperial	9.61"
Linear spring rate metric	2.15 kg/mm
Linear spring rate imperial	120.00 lb/in
