SHOCKS HD DYNA FXD 1991-2017 S
- SKU 13102389
- Lev. SKU: HD 764
- EAN / GTIN HD 764
- Fri Frakt vid köp över 1400 kr!
Beskrivning av SHOCKS HD DYNA FXD 1991-2017 S

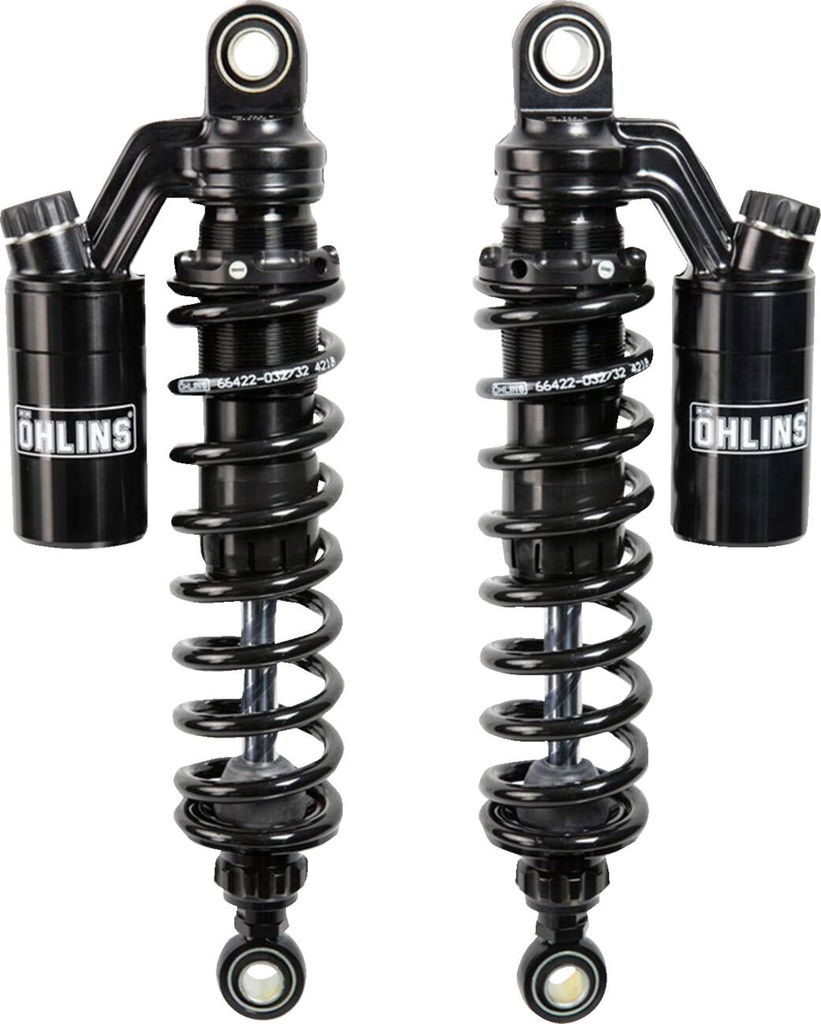

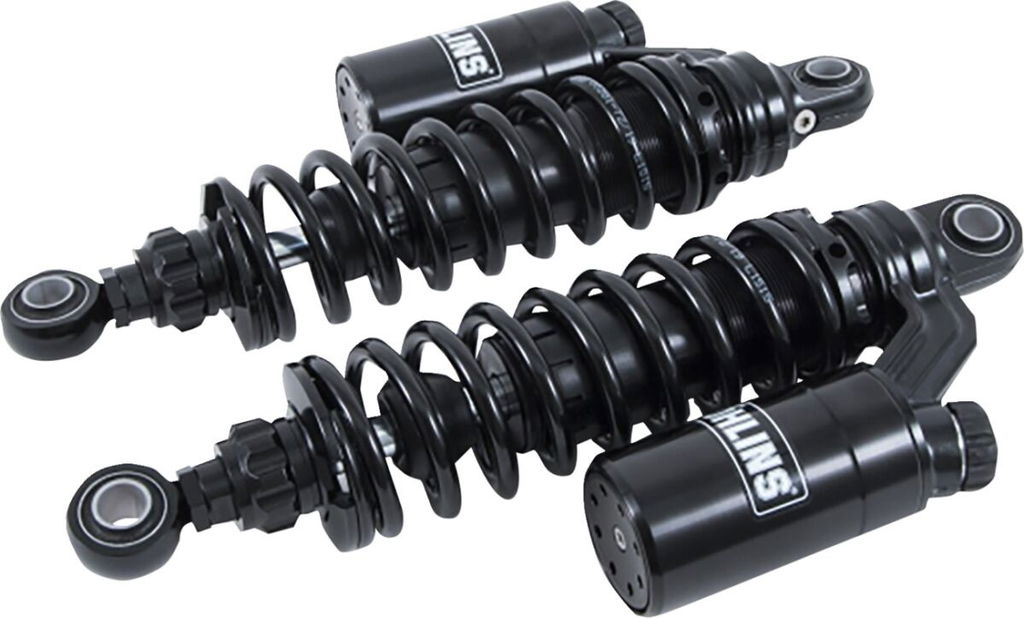

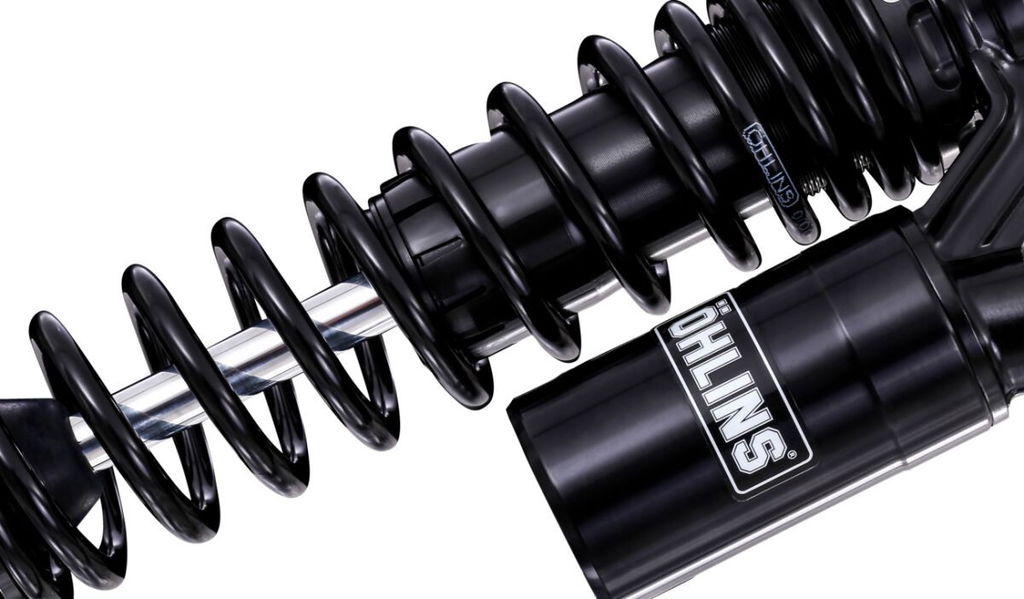

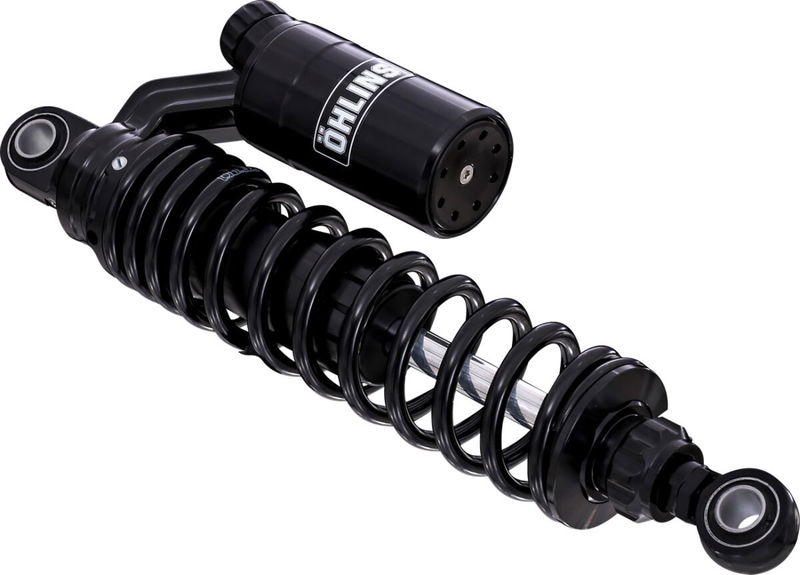

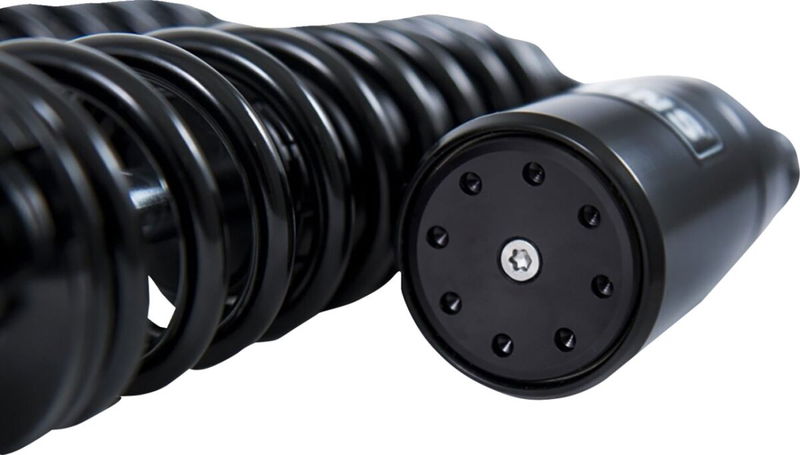

Twin Shocks STX36PAdjustable rebound and compression damping Monotube shock with piggyback reservoir Length adjustable by .393" High pressure nitrogen gas charged STX single tube design 36 mm / 1.417" piston diameter Adjustable preload with billet tool Multiple spring rates available to accommodate a wide range of riders Top level comfort, rideability, and performance Hard anodized - precision CNC-Machined components Low-friction Shaft / Seal head design Fully serviceable and repairable Includes Spring: Ohlins Part # 66422-032 (B)
Adjustment range: 0.393"
Stroke length: 3.583"
Weight range: 150 lb min – 400 lb max
| Type | Twin |
| Brand | OHLINS |
| Model | STX Pro |
| Units | Pair |
| Features | Maximum 400.00 lb Rider Weight |
| Color/finish | Black |
| Product name | Shock |
| Riding style | Street |
| Research value | Finalized |
| Mounting position | Rear |
| Linear spring rate | 32 n/m |
| Vendor part number | HD 764 |
| Extended length metric | 336.000 mm (+10.000 mm/-0) |
| Extended length imperial | 13.228" (+0.393"/-0) |
| Linear spring rate metric | 32 n/m |
| Linear spring rate imperial | 32 n/m |
