SPRING 51/160/120 N/MM

Beskrivning av SPRING 51/160/120 N/MM

Spring Shock

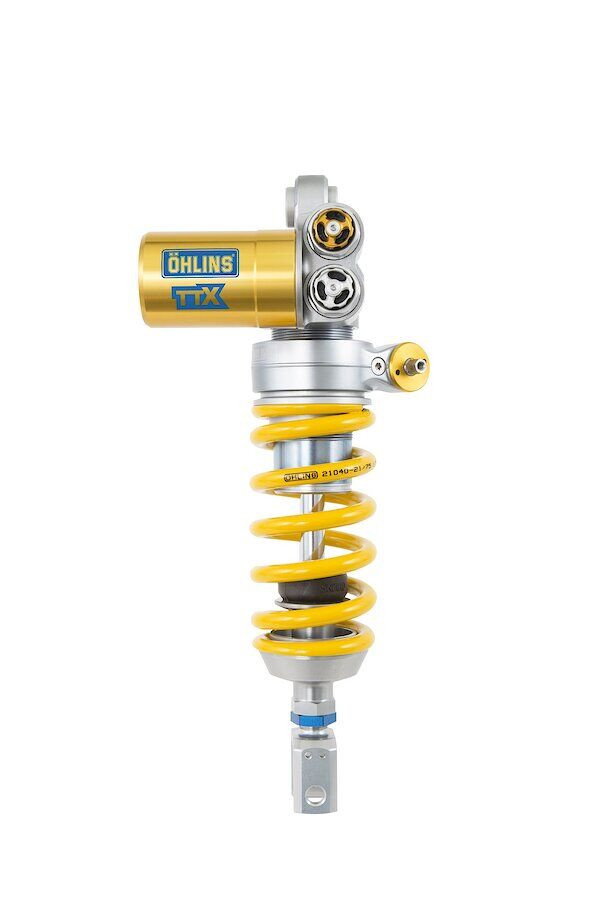

TTX GP Shock Absorber

Twin tube

Piston diameter: 36 mm

High pressure gas type of shock absorber with external “piggy back” reservoir.

Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.

Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.

Adjustable length.

Hose mounted hydraulic spring preload adjuster.

Technical data

Length: 318+6/-0 mm

Stroke: 57 mm

Rate N/mm: 120 N/mm

Position: rear

Mounted spring: 21040-44

Spring series: 21040-xx
