SHOCKS AIR-A - TRIKE 14-25 - 1

Beskrivning av SHOCKS AIR-A - TRIKE 14-25 - 1

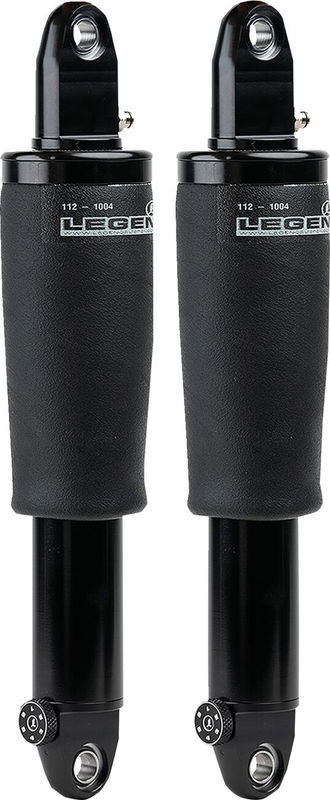

AIR-A Suspension For M-Eight Trike

13.6" length maximizes rear ride height on '17 and newer trikes utilizing OEM shock mount plates

Eliminates the need for a lift kit

Levels out trike models that sit low in the rear from the factory

Reduces dragging and scuffing of mufflers when rolling thru drain basins, backing up to curbs, or loading on a trailer

Easier steering due to less trail in the front end

Legend AIR Suspensions systems set the high mark in ultimate ride quality

Exclusive Aramid Fiber air spring technology provides spring rate adjustability

Air springs maximize wheel travel and adjust to any desired ride height

Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points

Type III hard-coat black anodized machined aluminum bodies

Low friction sealing system and sliding bearings for improved performance and feel

High flow piston reacts quickly for improved fluid flow management

Deflective disc valving self-adjusts to frequency and ensures controlled performance

All the benefits of the standard AIR suspension system, plus six external knob adjustments allow fine-tuning of rebound

Rebound adjustable for optimum performance and comfort for any given rider weight or personal riding style

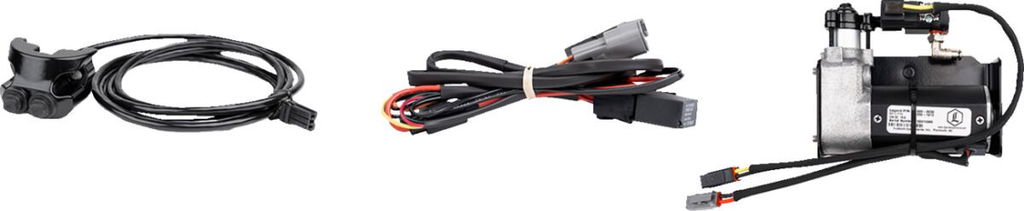

Includes prewired air compressor with model specific mounting

Complete wire harness installs with three easy Deutsch connections

Includes OEM-looking black handlebar mounted control for easy "on-the-go" adjustability

Optional chrome handlebar mounted control sold separately (Part # 0616-0207)

Optional fairing mounted matching gauges (Part #'s 2212-0484, 2212-0485, 2212-0492, 2212-0493, 2212-0494) sold separately

Assembled by hand in Sturgis, SD USA

Shocks are designed to be installed using the OEM lower shock mount brackets. Not compatible with aftermarket lift kits. Does not fit '26 Street Glide 3 Limited or Road Glide 3 models.

Type	Air Twin-Tube
Model	Air-A
Units	Pair
Material	Aramid Fiber| Billet Aluminum
Color/finish	Anodized| Black
Product name	Shock Absorber
Riding style	Street
Research value	Finalized
Adjustment type	Adjustable Rebound Damping
Extended length	345,44 mm (13,60")
Mounting position	Rear
Reservoir location	Internal
Vendor part number	1311-0190
Extended length metric	345.44 mm
Extended length imperial	13.60"
