510G CAM KIT WITH GEARS

Beskrivning av 510G CAM KIT WITH GEARS

510G Camshaft Kit

Cams designed as bolt-in cam for 88", 95", 96" and 103" engines with compression ratios below 9.7:1

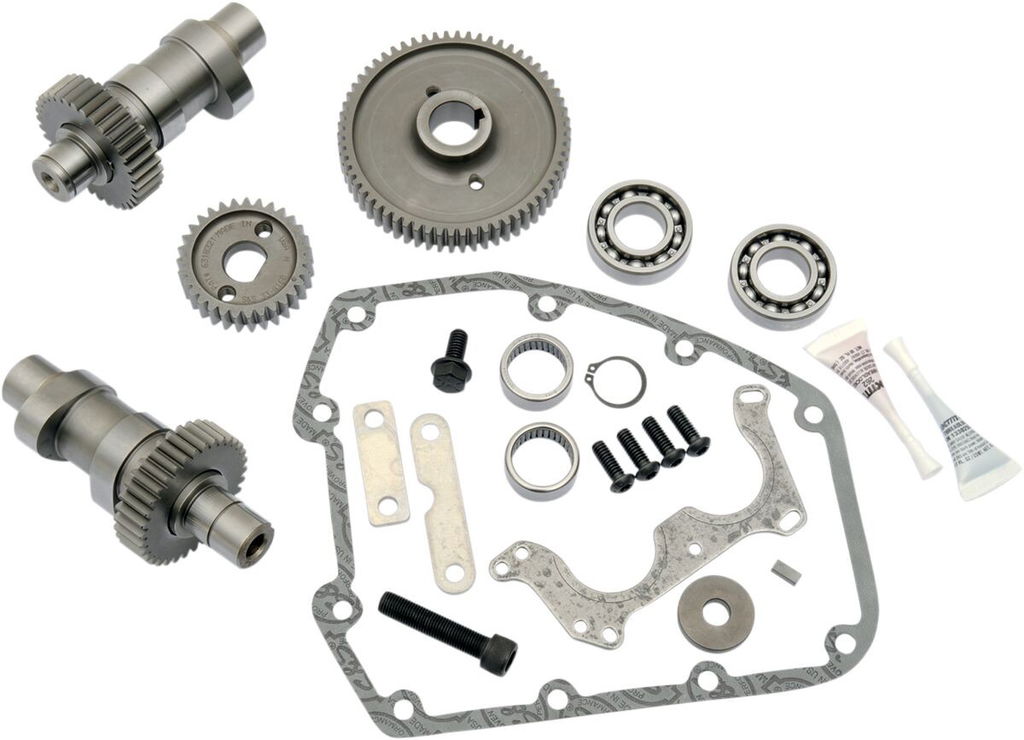

Kit includes camshafts with inner gears, outer cam drive gear kit and camshaft installation kit: gearcover gasket, bearings, oil passage block off kit, retaining ring. o-ring and instructions

Stock pushrods and valve springs are acceptable

Strongest from 3000-5500 RPM

Made in the USA

Type	Gear
Brand	S&S CYCLE
Grind	510 Series
Units	Kit
Application	Exhaust| Intake
Intake lift	0,510"
Intake open	20°
Exhaust lift	0,510"
Exhaust open	52°
Intake close	38°
Product name	Camshaft Kit
Exhaust close	20°
Intake duration	238°
Exhaust duration	252°
Intake lift at tdc	0,187"
Vendor part number	33-5177
Exhaust lift at tdc	0,178"
Intake lobe centerline	99°
Exhaust lobe centerline	106°
