WIRE HARNESS CANSMART T3

Beskrivning av WIRE HARNESS CANSMART T3

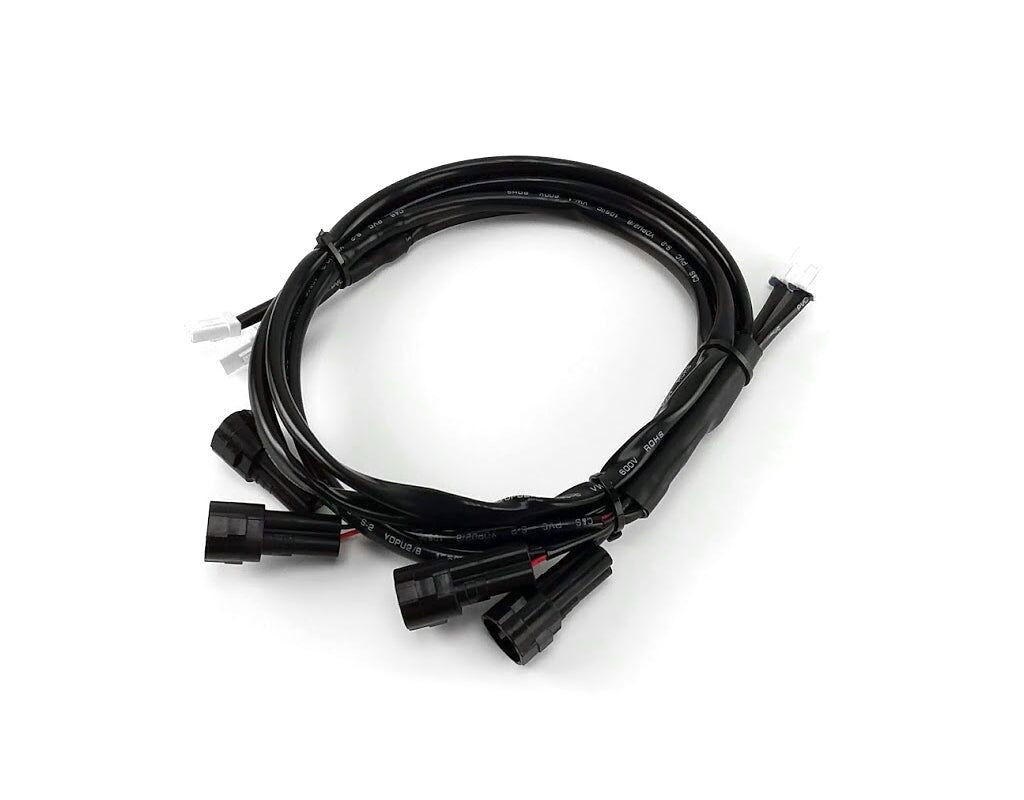

Wire Harness CANsmart

Use the DENALI wiring adapter for connecting T3s to the GEN II CANsmart Controller for a true plug & play connection.

Compatible with all GEN II DENALI CANsmart Controllers, no wire tapping or other modifications are necessary, just plug directly into the circuits of the CANsmart to send the signals from your controller to the T3 Lights.

This harness is designed to power a set of four T3 lights; two rear T3s & two front T3s, but can also be configured for an installation of just front or rear T3s as well.

Please note that when powering rear T3s through this plug & play adapter from a CANsmart the red running light will remain illuminated between the amber turn signal flashing.

This is an unavoidable result when powering T3s solely from a CANsmart. If you'd prefer that the running light shuts off when the amber signal is active, simply connect the red running light wires from the T3 pods directly to a switched power source on your vehicle (and set the CANsmart brake light circuit to brake only).

Note: Not compatible with KTM 790 Adventure

Type	Turn Signal
Brand	DENALI
Units	Each
Features	Plug-and-Play
Product name	Wiring Harness
Vendor part number	DNL.WHS.13400
