R1 FLASHER RELAY

Beskrivning av R1 FLASHER RELAY

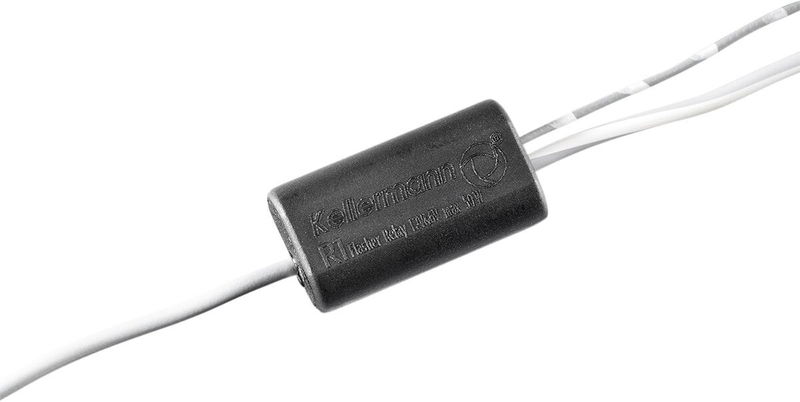

Load-Independent Flasher Relay R1

Flasher Relay R1, Micro relay for the pros!

The R 1 flasher relay has very small dimensions and flashes independently of load at a steady 75 pulses per minute.

It also has a connection available for the flasher dashboard light. It is easily installed into the feed to the indicator switch, or can be swapped with the original 2-3 pole flasher relay.

It is therefore suitable for all motorcycles with indicator switches. Should the change to LED indicators result in the non-intentionally activated indicators also flashing; then the indicator control light must also be connected to the R 1 relay. The ‘hazard warning’ effect will then be effectively.

All necessary components required for installation are included.

Load-independent / steady flash rate.

Switching capacity 0-50W by 12V/ 0-24W by 6V.

Very small dimensions 22 x12 x 6 mm (L/W/H).

Suitable for indicator switches.

Suitable for 6 and 12 volt DC applications.
