TURN SIGNAL MODULE (TSM) - FLT

Beskrivning av TURN SIGNAL MODULE (TSM) - FLT

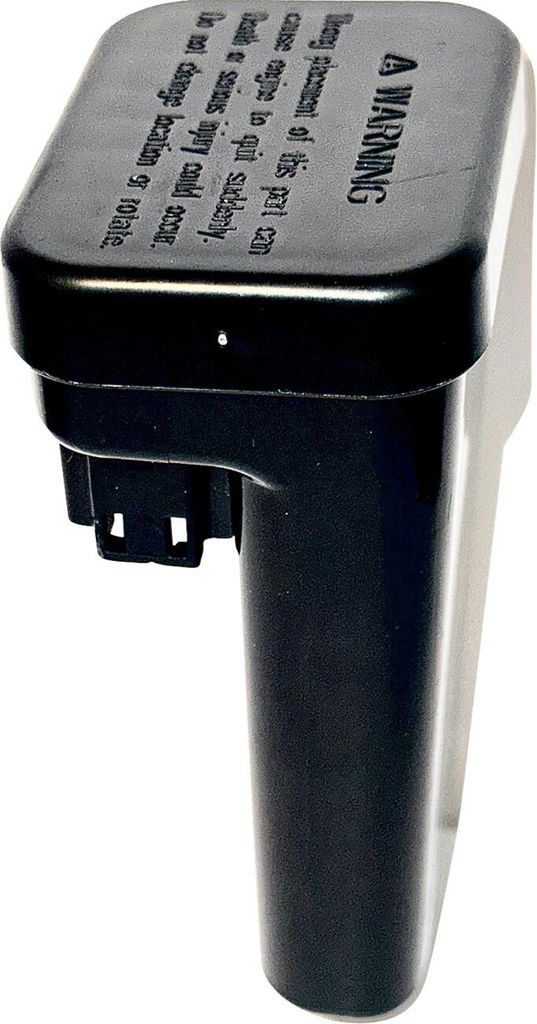

Turn Signal Module

Direct OEM TSM, TSSM, and HFSM Plug-and-Play replacement on Harley-Davidson models. Functions as TSM only, no security functions

Compatible with LED or incandescent bulbs (0.24 A-6 A maximum turn signal load per side), eliminating the need for a load equalizer or signal stabilizer when converting to Custom Dynamics’ LED turn signals

Simplified marrying procedure for select models and compatible with Technoresearch software

Offers both manual and self-canceling turn signal cancelation functions based on timing and bank angle of the motorcycle; along with full operation of four-way hazards

Provides automatic shut off parameters when vehicle tilt exceeds 45° right or left for 1 second or more.

Low current consumption with built-in short circuit & over circuit protection

Wide operating voltage: 11 VDC to 15 VDC

Integrates with the OEM safety switches to prevent starting in gear without the clutch pulled.

Brand	CUSTOM DYNAMICS
Units	Each
For make	Harley Davidson®
Product name	Turn Signal Module
Vendor part number	TSM-4
