GAUGE HD-05 FXD 04-14 BLK

Beskrivning av GAUGE HD-05 FXD 04-14 BLK

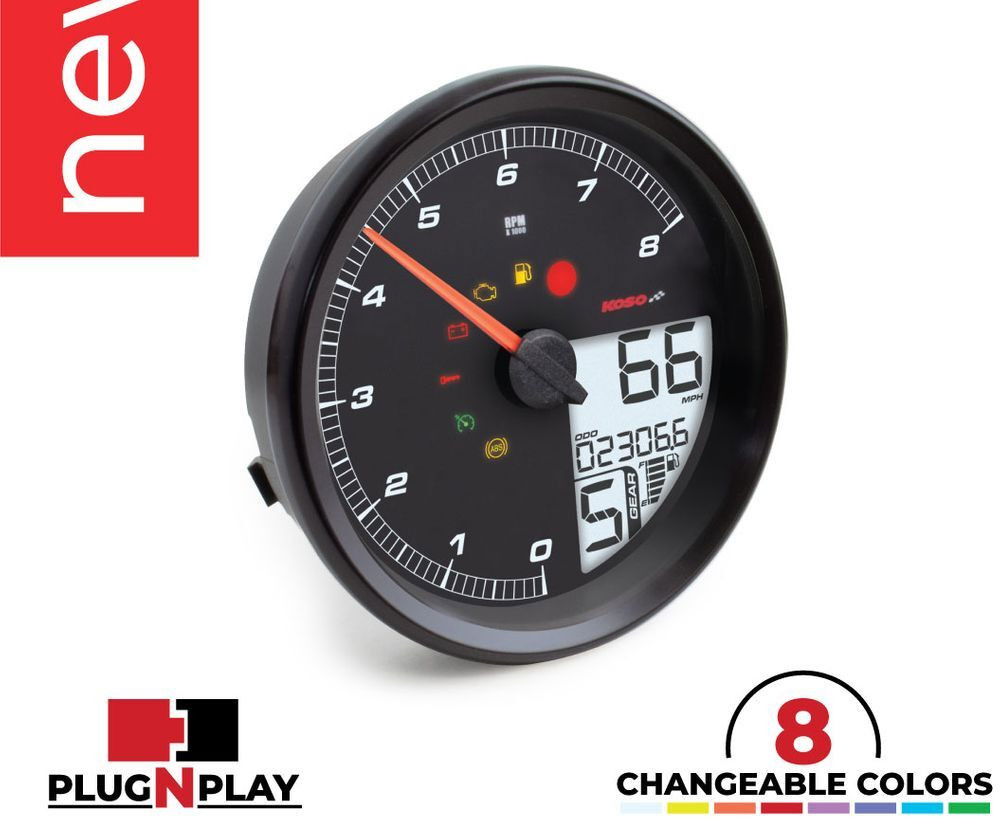

HD-05 Meter for Harley Davidson

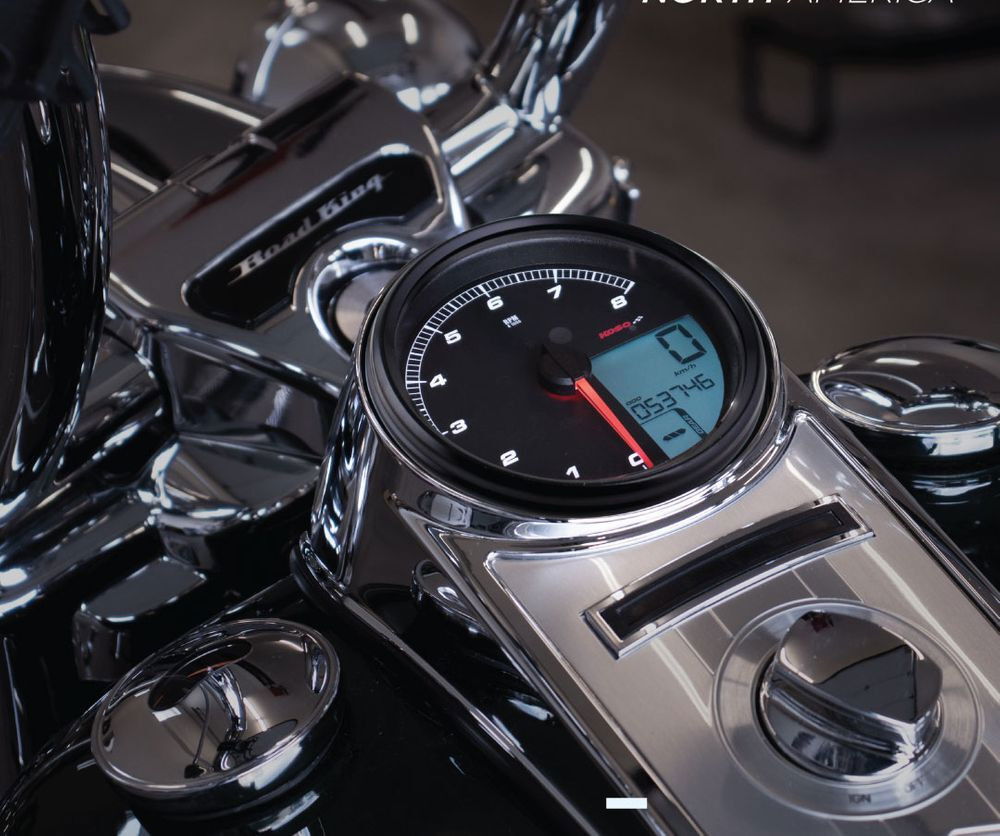

The new PLUG&PLAY HD-05 series for 4 ½” (=11.43cm) Harley-Davidson® models with attached tank contains a speedometer and tachometer in one.

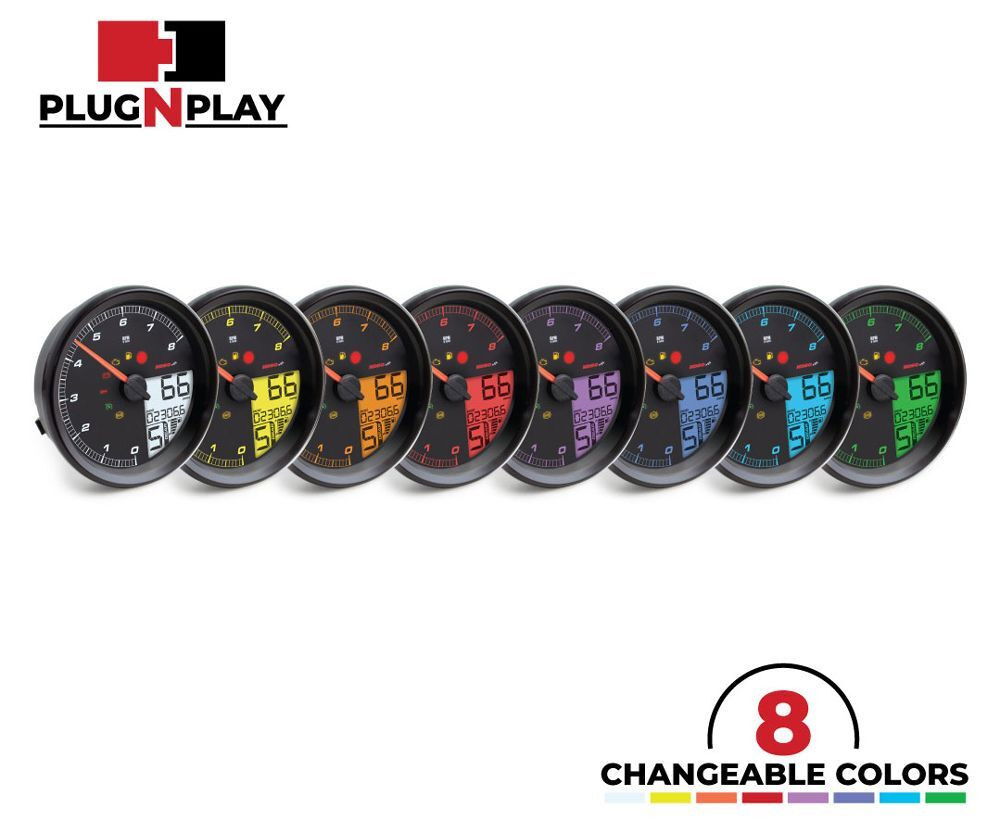

In addition, the color of the background lighting is changeable and contains a gear indicator.

The meter provides real measurements such as engine temperature, battery voltage, average fuel efficiency and a complete system of indicators to monitor the vital parameters of your motorcycle.

This PLUG&PLAY set fits exactly to the existing wiring harness and interacts directly with the CANBUS system of your motorcycle.

Speedometer (0 - 225 mph)

Tachometer (0 - 8,000 RPM)

Odometer (0 - 999,999 miles)

Tripmeter (0 - 9,999 miles)

Volt meter ( DC 8V - 18V)

Fuel Meter (6 levels | 1 level = 16.6%)

Fuel Tank Volume (Off/1 - 9.9 US Gallons) - (approx. 37 liters)

Brand	KOSO NORTH AMERICA

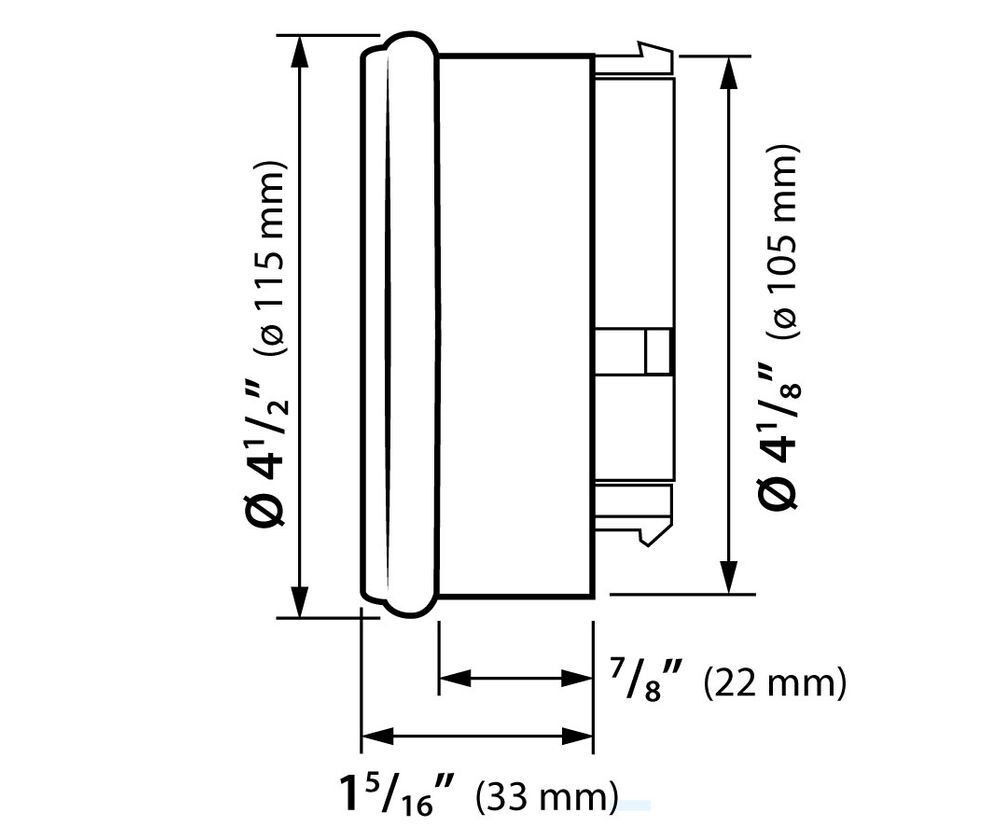

Depth	33 mm (1-5/16")
Model	HD-05
Style	Electronic
Units	Each
Calibration	0 kph - 360 kph (0 mph - 225 mph)
Product name	Gauge
Housing color	Black
Calibration metric	0 kph - 360 kph
Vendor part number	BA072110
Calibration imperial	0 mph - 225 mph
