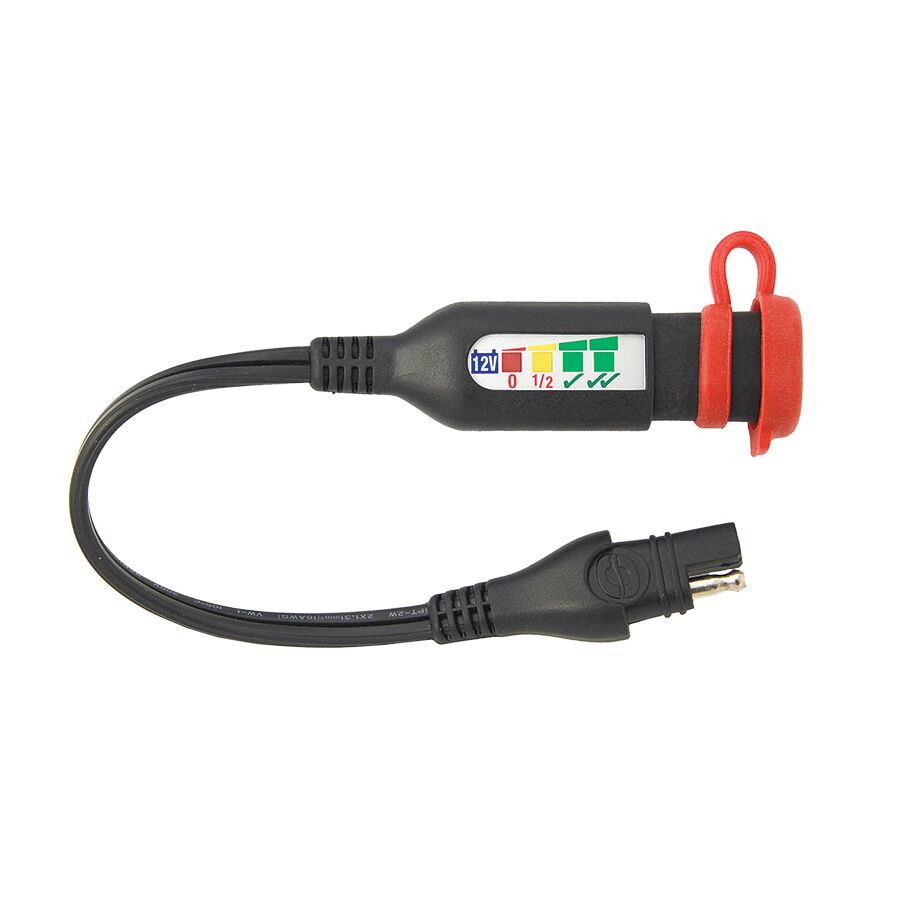

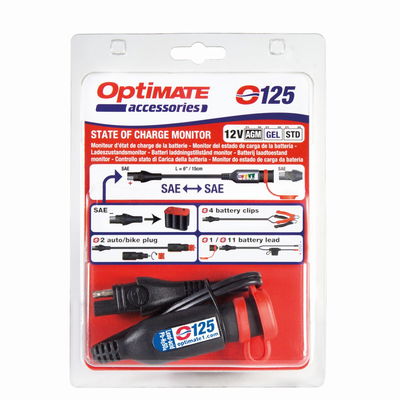

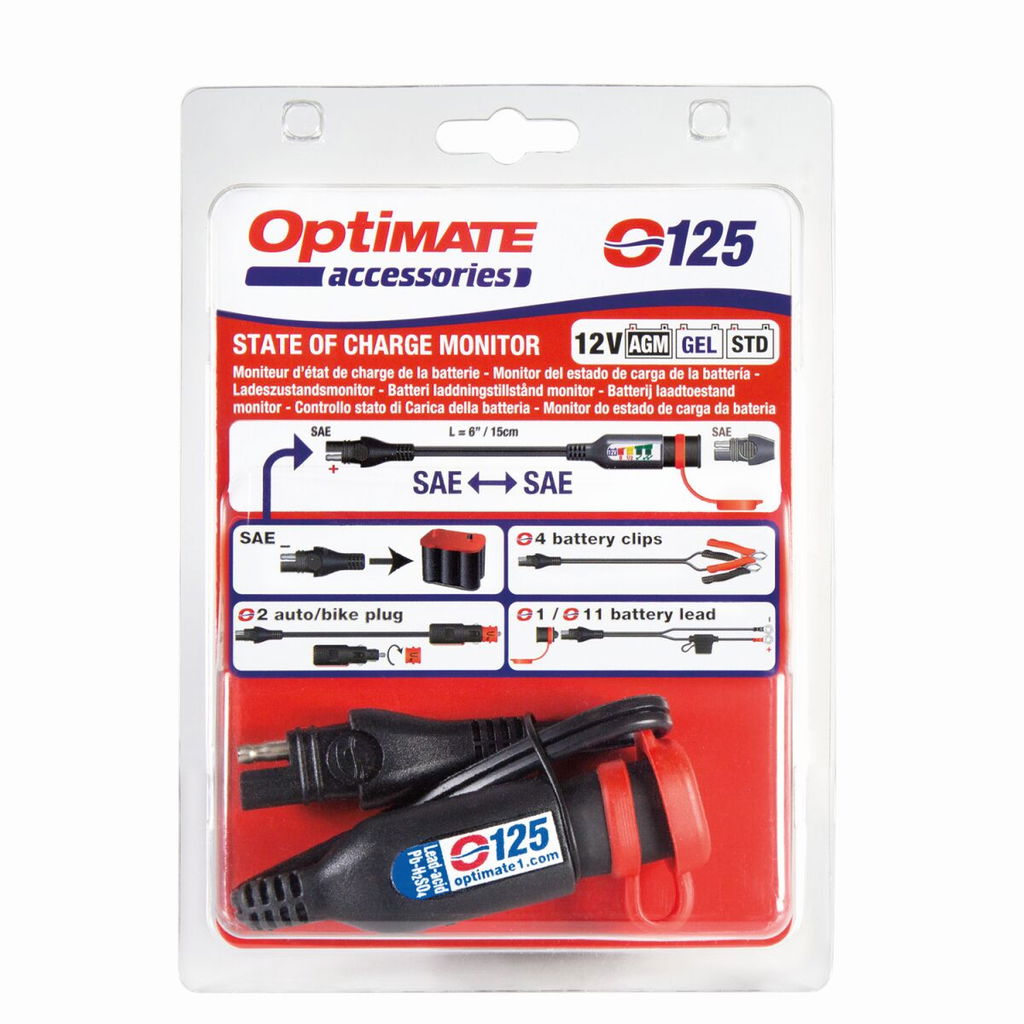

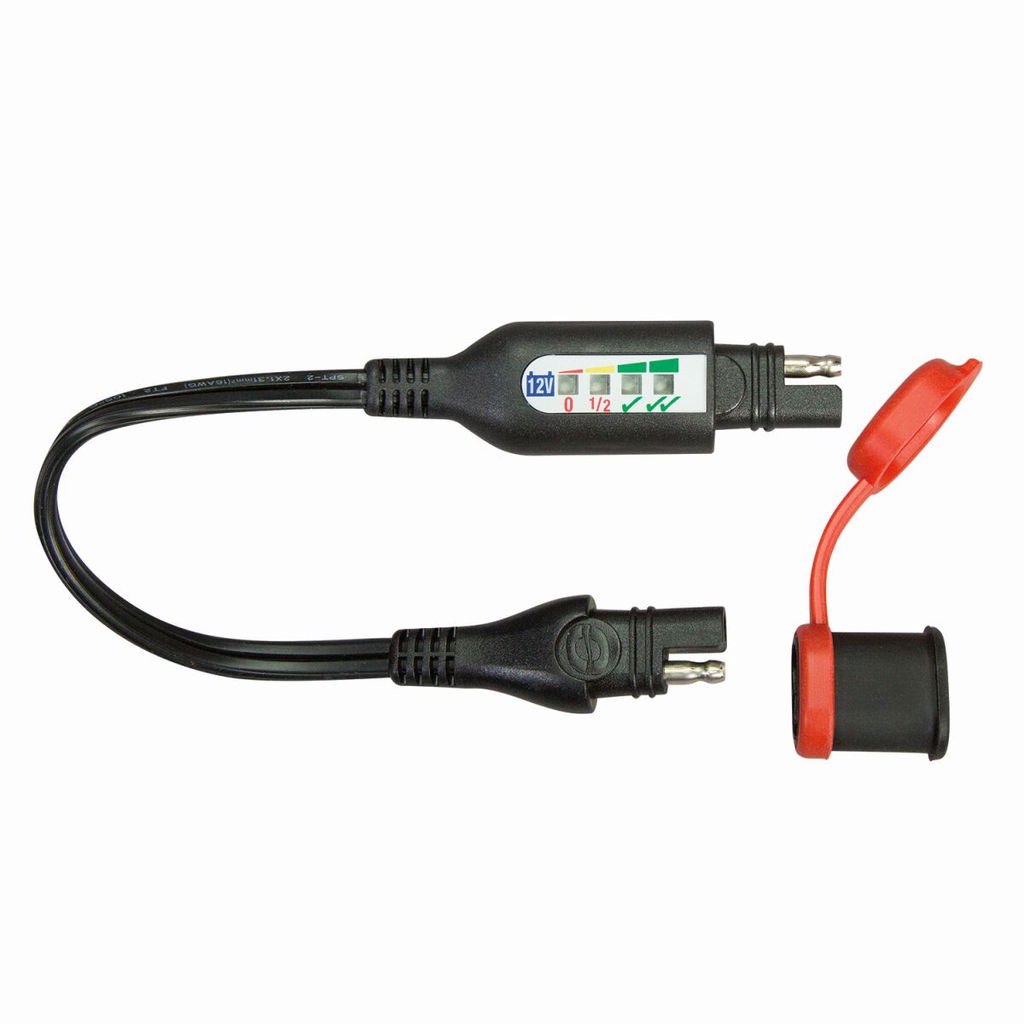

OPTIMATE MONITOR O-125

Beskrivning av OPTIMATE MONITOR O-125

Lithium Battery Monitoring Lead O-127

Permanent power sport battery lead with integrated battery status / charge system monitor for 12.8 / 13.2 V lithium

Monitor charge of your stored power sport vehicle lithium starter battery or confirm if the vehicle charging system is working correctly

2 automatic Modes – Battery charge level monitor (single LED blink mode) and Charging system test (arrow mode)

3 LEDs display ‘full to empty’ voltage range for 12.8 V/13.2 V Lithium batteries (LFP/LiFePO4/Lithium nano Phosphate); 4th LED warns when vehicle system or connected battery charger is overcharging

Battery charge level : LED matching charge level blinks every 10 seconds (long term draw less than 0.2mA)

Vehicle Charge system : LED arrow mode activates when charge voltage reaches effective lithium charge range of 14.2 V – 14.5 V (v green LED)

OVERCHARGE warning activates at 14.6 V+

SAE charge port with weatherproof sealing cap

Type	Inline
Brand	TECMATE
Units	Each
Volts	12 V
Features	Weatherproof
For make	Universal
Cable length	152 mm (6")
Color/finish	Black
Product name	Charging Cable
Vendor part number	O125V2
Power connection type	SAE Plug
