TRACK SYS 4S1 UTV UC 4-TRACKS

Beskrivning av TRACK SYS 4S1 UTV UC 4-TRACKS

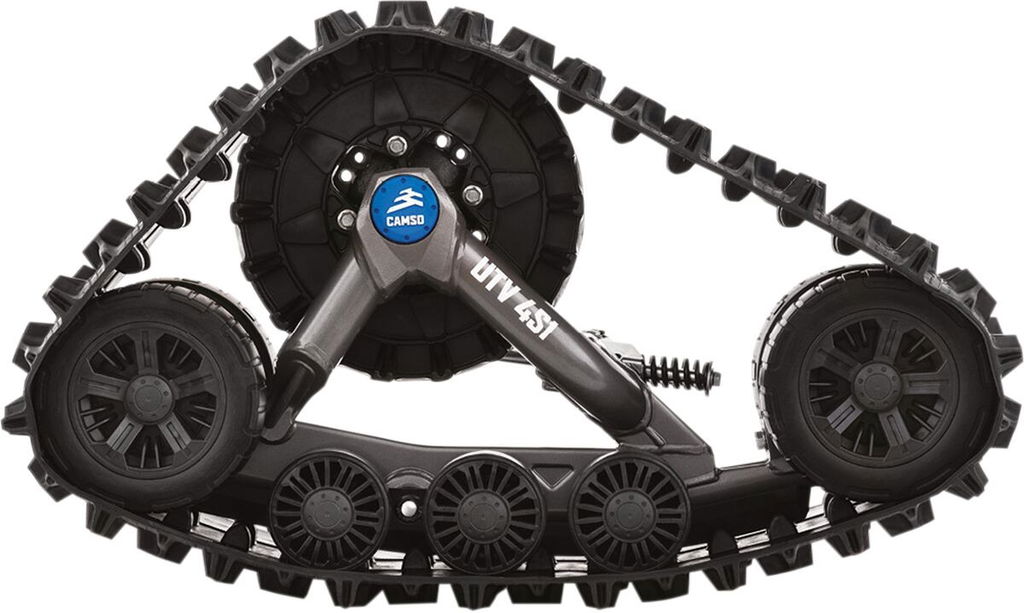

Track Sys 4S1 UTV UC 4-Tracks

This 4S1 undercarriage track kit includes 4 tracks.

Adapter kit required for mounting to your vehicle.

Order both kits to receive everything required for one UTV.

Puncture-proof tires.

Engine-specific gearing for 300cc and larger

Interchangeable with over 99% of SxS brands and models

Fast, easy swap from wheels to tracks and back again

Improved locking tensioner increase strength, adjustment accuracy and serviceability

Bubble level and oil plug for easier installation and adjustment with increased accuracy

New solid steel frame design with improved geometry adds durability in non-snow terrain and improves weight distribution

Rubber dampers with improved frame suspension minimize vibration, increase ride comfort, stability and overall durability

Not recommended for use over 40 km/h (25 mph)

Type	Track System
Brand	CAMSO - ATV
Model	UTV 4S1
Units	Set
Rear height	62,7 cm (24-11/16")
Tooth count	15-18
Front height	63,5 cm (25")
Product name	Undercarriage
Ground surface	1,62 m² (2520 square inch)
Rear track width	35,6 cm (14")
Front track width	31,8 cm (12-1/2")
Rear track length	296,4 cm (116-11/16")
Front track length	250,2 cm (98-1/2")
Vendor part number	E242-XX-1817
Rear ground clearance	42 cm (16-1/2")
Front ground clearance	41,5 cm (16-3/8")
