TRACK SYSTEM X4S UC 4-TRACKS
- Fri Frakt vid köp över 1400 kr!
Beskrivning av TRACK SYSTEM X4S UC 4-TRACKS

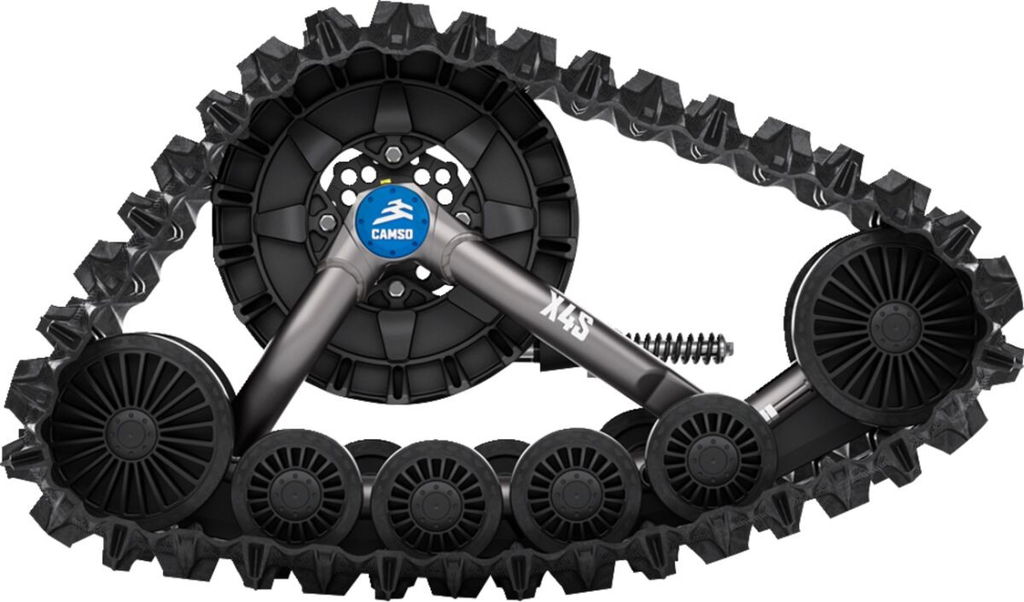

UTV X4S Track System Undercarriage KitCamso X4S is the next generation of track system that provides the ultimate versatility, stability and handling on any terrain all year-round New geometry of solid steel frame provides better front steering and handing Standard and replaceable sealed bearings for economic maintenance Double bearing bolted on wheels for easier serviceability Increased width (26 mm) provides better track support This X4S undercarriage track kit includes 4 tracks Idler and mid-roller wheels Adapter kit required for mounting to your vehicle.
| Type | Track System |
| Brand | CAMSO - ATV |
| Model | UTV X4S |
| Units | Kit |
| Features | For A-Arm Independent Suspension |
| Rear height | 58,93 cm (23-3/16") |
| Tooth count | 15-18 |
| Front height | 60,45 cm (23-13/16") |
| Product name | Undercarriage |
| Riding style | ATV| UTV |
| Ground surface | 1,3 m² (2000 in²) |
| Research value | Finalized |
| Ground clearance | 39 cm (15-3/8") |
| Rear track width | 31,8 cm (12,5") |
| Front track width | 29,2 cm (11,5") |
| Rear track length | 250,2 cm (98-1/2") |
| Front track length | 237,2 cm (93-3/8") |
| Rear height metric | 58.93 cm |
| Vendor part number | P242-XX-1716 |
| Front height metric | 60.45 cm |
| Rear height imperial | 23-3/16" |
| Front height imperial | 23-13/16" |
| Rear ground clearance | 39 cm (15-3/8") |
| Front ground clearance | 39 cm (15-3/8") |
| Ground clearance metric | 39 cm |
| Rear track width metric | 31.8 cm |
| Front track width metric | 29.2 cm |
| Rear track length metric | 250.2 cm |
| Front track length metric | 237.2 cm |
| Ground clearance imperial | 15-3/8" |
| Rear track width imperial | 12.5" |
| Front track width imperial | 11.5" |
| Rear track length imperial | 98.5" |
| Front track length imperial | 93-3/8" |
